Soil properties (estimated): Orsa, Sweden

Texture
pH
Bulk density
Organic carbon
CEC

[1]

Challenges

Sandy loam has good drainage but has difficulty holding nutrients, which can get washed away in rainfall or irrigation
low water retention rates

[2]

Cwiny wii

Can be treated with sulfur if too alkaline
Compensate for lower water retention rates
Spray with very weak sulphate of iron if excess manganese prevents response to sulfur or iron
Fertilizers may be required, especially nitrogen and potassium
Nitrogen is essential for healthy plant growth, but can reduce flowering response
For growing groundnuts (peanuts) in sandy loam, it is important to maintain near to neutral soil pH levels and Ca:K ratios lower than 3

[2] [3] [4] [5]

Lok mukaro angwec

Sandy loam soil is a desirable soil type for growing many plants
Varies from very fine loam to very coarse

[6]

[1]

Challenges

Above a pH of 7.5 (very alkaline), some nutrients such as iron, manganese, and phosphorus are less available
Peat moss with a pH of 3.0 can be recommended as a soil additive, but peat moss is nutrient-poor, expensive, and it's a nonrenewable resource

[7] [8] [9] [10] [11]

Cwiny wii

To lower soil pH, add a source of acid, such as shredded leaves, sulfur, sawdust or peat moss

[7] [8] [9] [10]

Lok mukaro angwec

Many plant species are adapted to acidic or alkaline soils
The availability of many plant nutrients (for example, P), non-essential elements (for example, Al, Cd, Pb), and essential trace elements (for example, Mn, Fe, Cu, Zn) is strongly dependent on soil pH (Miller and Gardiner 2001)
Generally, metal cations (for example, Mn, Fe, Ni, Cu, Zn, Cd, Pb) become more available as pH decreases, while oxyanions (for example, SO4) become more available at alkaline pH levels
Soil pH is strongly dependent on the chemical weathering environment. Soils in hot, humid areas and even mesic, wetter areas tend to be more acidic than those of much drier areas. Vegetation communities in those areas tend to be adapted to the soil conditions in which they developed

[12] [13] [14]

[1]

Challenges

Reduce moderate soil porosity and soil compaction for optimal plant growth
As density increases, pore space decreases and the amount of air and water held in the soil also decreases
Compaction causes shallow plant rooting, poor plant growth, reduced crop yield, and reduced vegetative cover, and therefore, increased erosion
Soil compaction to restrict water movement through the soil profile is beneficial under arid conditions, but under humid conditions compaction decreases yields

Cwiny wii

Decrease soil disturbance
increase soil organic matter
Use cover crops, crop residues, perennial sod, and reduced tillage to increase soil organic matter, decrease disturbance, and reduced bulk density
Use multi-crop systems involving plants with different rooting depths to help break up compacted soil layers
Do not plow or disk to the same depth
Do not allow equipment traffic on wet soil
Do not burn or remove crop residue
Rotate crops with varying root structure and root depth
Do not overgraze forage plants
To reduce high bulk density and compaction, minimize soil disturbance and production activities when soils are wet, use designated field roads or rows for equipment traffic, reduce the number of trips across the area, and maintain or increase soil organic matter
Use grazing systems that minimize livestock traffic and loafing, provide protected heavy use areas, and adhere to recommended minimum grazing heights
Use conservation crop rotation, cover crop, deep tillage, prescribed grazing residue, and tillage management
Avoid plowing, timber harvesting, or compaction of the soil

[15] [16] [17] [18]

Lok mukaro angwec

Soil bulk density may indicate soil compaction but is dependent on many soil factors including particle size distribution, soil organic matter content, and coarse fragment content
Bulk density increases as the sand and rock content increases
Bulk density decreases as the organic matter content increases
A mineral soil with “ideal” physical properties has 50 percent solids and 50 percent pore space occupying a given volume of space
At optimal water content, half the pore space is filled with water (such a soil will have a bulk density of 1.33 g/cm3)
Roots usually grow well in soils with bulk densities of up to 1.4 g/cm3
Root penetration begins to decline significantly at bulk densities above 1.7 g/cm3
Above 1.5 g/cm3, there is an increasing probability of adverse effects from soil compaction or high rock content
Coarse fragments—Soils with a coarse fragment content of > 50 percent to have a greater probability of adverse effects from infiltration rates that are too high, water storage capacity that is too low, more difficult root penetration, and greater difficulty in seed germination and seedling growth
A high contents of coarse fragments can limit soil productivity

[15] [16] [17] [18]

[1]

Challenges

Difficult to raise organic matter content of well-aerated soils (coarse sands, soils in warm-hot and arid regions) because the added materials decompose rapidly
Soil organic matter levels can be maintained with less organic residue in fine-textured soils in cold temperate and moist-wet regions with restricted aeration
Total organic carbon in mineral soils (percent): 1 to 5 = adequate levels,
< 1 = could indicate possible loss of organic C from erosion or other processes, particularly in temperate or colder areas

[19] [20] [12] [16] [17] [18]

Cwiny wii

Increase the organic matter content by returning organic materials to soils and adding rotations with high-residue crops and deep- or dense-rooting crops
Ways to increase organic matter contents of soils: compost, cover crops/green manure crops, crop rotation, perennial forage crops, zero or reduced tillage, agroforestry

[19] [20] [12] [16] [17] [18]

Lok mukaro angwec

Organic Carbon is, together with pH, the best simple indicator of the health status of the soil
Soils with very high amounts of organic carbon are generally nutrient-rich, fertile soils with a good structure
Very high soil organic carbon (SOC) can be an indicator of good crop yields
Total organic carbon in mineral soils (percent): 1 to 5 = adequate levels,
> 5 = excellent buildup of organic C with all associated benefits
Moderate to high soil organic carbon (SOC) in the soil is an indicator of high crop yields
Moderate to high amounts of organic carbon are associated with fertile soils with a good structure

[19] [20] [12] [16] [17] [18]

[1]

Challenges

Low CEC soils are more likely to develop potassium and magnesium (and other cation) deficiencies, while high CEC soils are less susceptible to leaching losses of these cations
For sandy soils, the addition of a large amount of potassium at one time can lead to high losses due to leaching. This is because the potassium adds a large amount of cations at one time and soil cannot hold on to the excess potassium. Therefore, frequent additions of smaller amounts of potassium can work better to add potassium to the soil than one large amount

Cwiny wii

The lower the CEC, the faster the soil pH will decrease with time
Sandy soils require more frequent liming than clay soils
The higher the CEC, the larger the quantity of lime that must be added to increase the soil pH
Sandy soils need less lime than clay soils to increase the pH to desired levels
The higher the CEC, the larger the quantities of soil additives the soil will need to change soil pH, either when increasing pH with lime or high bicarbonate irrigation water, or when decreasing pH with nitrogen fertilizers or elemental sulfur.. Acceptable saturation ranges for Soil CEC = 6-10: 3-5% K, 50-70% Ca, 8-20% Mg

Lok mukaro angwec

A Cation Exchange Capacity (CEC) of 4 to 10 cmol/kg in the soil organic matter (SOM) indicates a low CEC
low organic matter
low capability to hold important nutrients, such as calcium, magnesium, potassium and sodium

Kare	Depth	Wang otul	Texture Reaction - pH	Organic Carbon Conductivity - Electrical	Subsoil Cation Exchange	Clay Cation Exchange	Calcium Carbonate - Lime	Gypsum Sodium - Exchangeable
	Topsoil	4	4.5	5.27	28	89	0	0
	Subsoil	4	4.5	0.81	8	55	0	0

Soil Triangle - Haplic Podzols

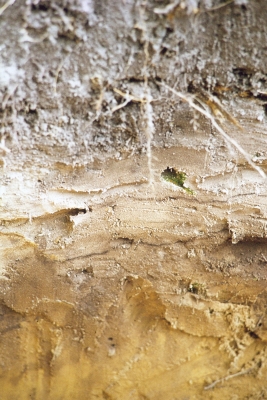

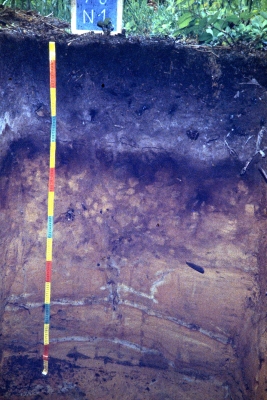

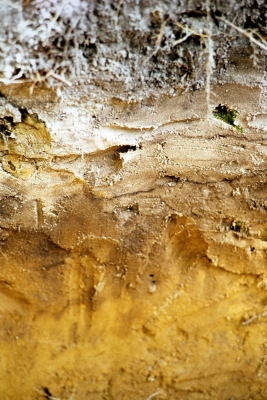

Images - Haplic Podzols

Tee lok - Haplic Podzols

Podzols (also known as podsols or Spodosols) are the typical soils of coniferous, or boreal forests. They are also the typical soils of eucalypt forests and heathlands in southern Australia. Haplic indicates that the major part of the upper 0.5 m of the soil profile is whole coloured. The eluviated soil, which is usually 4-8 cm thick, is low in Fe and Al oxides and humus. It is formed under moist, cool and acidic conditions, especially where the parent material, such as granite or sandstone, is rich in quartz. It is found under a layer of organic material in the process of decomposition, which is usually 5-10 cm thick. In the middle, there is often a thin layer of 0.5 to 1 cm. The bleached soil goes over into a red or redbrown horizon called rusty soil. The colour is strongest in the upper part, and change at a depth of 50 to 100 cm progressively to the part of the soil that is mainly not affected by processes; that is the parent material. Podzols are found in areas that are wet and cold (for example in Northern Ontario or Russia) and also in warm areas such as Florida where sandy soils have fluctuating water tables (humic variant of the northern podzol or Humod). An example of a warm-climate podzol is the Myakka fine sand, state soil of Florida. In Western Europe podzols are developed on heathland, which is a construct of human interference, whereby the vegetation is maintained through grazing and burning. In some British moorlands with podzolic soils there are brown earths preserved under Bronze Age barrows. Most podzols are poor soils for agriculture. Some of them are sandy and excessively drained. Others have shallow rooting zones and poor drainage due to subsoil cementation. Well-drained loamy types can be very productive for crops if lime and fertilizer are used. In the Western Cape region of South Africa, deeper rooted orchards and vineyards suffer fewer trace element deficiencies than do shallow-rooted vegetable crops. Most zonal Podzols are under forest; intrazonal Podzols in temperate regions are mostly under forest or shrubs (heath). Tropical Podzols normally sustain a light forest that recovers only slowly after cutting or burning. Mature Podzols are generally best used for extensive grazing or left idle under their natural (climax) vegetation

[21]

Tyen Lok - Ngom mamiyo

Loams are the most useful "all around" soils; they combine the lightness and earliness of the sands, with the strength and retentiveness of the clays. Loams contain from 40 to 60 per cent, of sand, and 15 to 25 per cent, of clay. They "work up" easily, do not crust or crack, are well supplied with plant food, and, what is chiefly important, water moves through them freely and still they are not leachy. Practically all farm crops grow satisfactorily on a loam. It is especially suitable for potatoes, corn, market-gardening crops, and small fruits; but grasses, cereals, clover, alfalfa, and cotton, find it congenial. It requires no special treatment, except such attention to good tillage, drainage, and the addition of humus as is a necessary part of the best farm practice everywhere. It doesn't matter if peppers are grown in temperate, tropical or subtropical climates as long as they have a relatively dry season, so a good loam that drains well helps to offset a wetter climate. Most fruit trees live longer and produce better when they grow in balanced loam. Citrus trees like good drainage, but they need to be kept moist. Loam is a good choice for citrus

[22]

Metrics/Discussion

Wii Lok	Pire tek	Pete tere
Wang otul	4	Lok mukaro angwec Soil without mottles indicates good drainage Water moves through the soil readily, but not rapidly Internal free-water commonly is deep or very deep Water is available to plants in humid regions during much of the growing season Wetness does not inhibit growth of roots for significant periods during most growing seasons The soil is deep to or lacks redoximorphic features A well-drained soil has "good" drainage. These soils are commonly intermediate in texture, although soils of other textural classes may also be well drained. Well-drained soils commonly retain optimum amounts of moisture for plant growth after rains or addition of irrigation water Tee lok Drainage Class soils refers to the frequency and duration of periods when the soil is saturated with water. Alterations of the water regime by human activities, either through drainage or irrigation, are not a consideration unless they have significantly changed the morphology of the soil. Seven classes of natural soil drainage are recognized 1. very poorly drained 2. poorly drained 3. somewhat poorly drained 4. moderately well drained 5. well drained 6. somewhat excessively drained 7. excessively drained [23] [24]
Soil reference depth	100 mm	Challenges Soil depth limitations may affect root penetration and may constrain yield formation in roots and tubers [12] [25] Tee lok An approximation of actual soil depth can be derived through accounting for relevant depth limiting soil phases, obstacles to roots and occurrence of impermeable layers. Soil depth limitations which affect root penetration and may constrain yield formation (roots and tubers). This is a measurement in cm of reference soil depth. Reference soil depth of all soil units are set at 100 cm, except for Rendzinas and Rankers of FAO-74 and Leptosols of FAO-90, where the reference soil depth is set at 30 cm, and for Lithosols of FAO-74 and Lithic Leptosols of FAO-90, where it is set at 10 cm [12] [26]
Base saturation	11Ikum mia	Challenges Below a pH of 6.0 (acid), nutrients such as nitrogen, phosphorus, and potassium become less available Exchangeable Ca increases with increasing pH, while high exchangeable Al levels are found in soils with a pH < 5.2--{High exchangeable Al levels can restrict plant growth Very acid soils often suffer from Al toxicity Heavy rains, especially monsoon rains, lead to rapid nutrient leaching, and chemical weathering of the soil Extremely acid soils do not drain because by oxidation sulfuric acid will be produced and pH will drop lower still Plants grown in acid soils can show symptoms such as Al, H, and/or Mn toxicity, and potential nutrient deficiencies of Ca and Mg Al may cause damage to roots In root tips, Al interferes with the uptake of Ca, an essential nutrient, and binds with phosphate and interfere with production of ATP and DNA, which both contain phosphate Al can restrict cell wall expansion causing roots to become stunted Below pH 4, H+ ions damage root cell membranes In soils with high content of Manganese (Mn)-containing minerals, Mn toxicity can occur at pH 5.6 and below Mn becomes more soluble as pH drops Mn toxicity symptoms can be seen at pH's below 5.6 Mn is an essential plant nutrient. Plants transport Mn into leaves. Classic symptoms of Mn toxicity are crinkling or cupping of leaves Cwiny wii Add organic matter to decrease Al toxicity Add alkaline material such as limestone to decrease soil acidity Apply 2.3 kg of lime per 30 square meters to raise the pH by one point Applying wood ashes will raise soil pH--Wood ashes contain up to 70 percent calcium carbonate, as well as potassium, phosphorus, and many trace elements. Because it is powdery, wood ash is a fast-acting liming material Limit the application of wood ashes to 1 kg per 30 square meters and only apply it every other year in the same area Breed aluminum-tolerant crops Lok mukaro angwec The base saturation value often shows a near linear correlation with pH Base saturation < 20% indicates desaturated soils, with a similar interpretation as extremely acid pH Approximately a third of all tropical soils are too acidic to support traditional food crops [12] Tee lok The base saturation of the topsoil measures the sum of exchangeable cations (nutrients) Na, Ca, Mg and K as a percentage of the overall exchange capacity of the soil (including the same cations plus H and Al). The value often shows a near linear correlation with pH. Critical values as follows Base Saturation < 20 % = desaturated soils, similar interpretation as extremely acid pH Base Saturation of 20 – 50 % = acid conditions Base Saturation of 50 – 80 % = Soil conditions of neutral to slightly alkaline which are ideal conditions for most crops Base Saturation > 80% indicates saturated conditions often calcareous, sometimes sodic or saline [12] [25]
Calcium carbonate CaCO3 - Lime	0% Peke	Lok mukaro angwec Low levels of calcium carbonate enhance soil structure and are generally beneficial for crop production [12] [27] Tee lok This gives the calcium carbonate (lime) content in the topsoil. Calcium carbonate is a chemical compound (a salt), with the chemical formula CaCO3. It is a common substance found as rock in all parts of the world, and is the main component of shells of marine organisms, snails, and eggshells. Calcium carbonate is the active ingredient in agricultural lime, and is usually the principal cause of hard water. It is quite common in soils particularly in drier areas and it may occur in different forms as mycelium-like threads, as soft powdery lime, as harder concretions or cemented in petrocalcic horizons. Low levels of calcium carbonate enhance soil structure and are generally beneficial for crop production but at higher concentrations they may induce iron deficiency and when cemented limit the water storage capacity of soils. In agronomic sense relevant limits are None to very low < 2 Low = 2 – 5 Moderate = 5 – 15 High = 15 – 40 Very High > 40 [12]
Organic carbon	5.27% Peke	Challenges Difficult to raise organic matter content of well-aerated soils (coarse sands, soils in warm-hot and arid regions) because the added materials decompose rapidly Soil organic matter levels can be maintained with less organic residue in fine-textured soils in cold temperate and moist-wet regions with restricted aeration [19] [20] [12] [16] [17] [18] Cwiny wii Increase the organic matter content by returning organic materials to soils and adding rotations with high-residue crops and deep- or dense-rooting crops Ways to increase organic matter contents of soils: compost, cover crops/green manure crops, crop rotation, perennial forage crops, zero or reduced tillage, agroforestry [19] [20] [12] [16] [17] [18] Lok mukaro angwec Organic Carbon is, together with pH, the best simple indicator of the health status of the soil Soils with very high amounts of organic carbon are generally nutrient-rich, fertile soils with a good structure Very high soil organic carbon (SOC) can be an indicator of good crop yields Total organic carbon in mineral soils (percent): 1 to 5 = adequate levels, > 5 = excellent buildup of organic C with all associated benefits [19] [20] [12] [16] [17] [18] Tee lok This gives the percentage of organic carbon in the topsoil. Organic Carbon is, together with pH, the best simple indicator of the health status of the soil. Moderate to high amounts of organic carbon are associated with fertile soils with a good structure. Soils that are very poor in organic carbon (<0.2%), invariable need organic or inorganic fertilizer application to be productive. Soils with an organic matter content of less than 0.6% are considered poor in organic matter. The following classes are suggested to prepare maps of organic carbon status for mineral soils Code 1 < 0.2% organic carbon Code 2 = 0.2 – 0.6% organic carbon Code 3 = 0.6 – 1.2% organic carbon Code 4 = 1.2 – 2.0% organic carbon Code 5 > 2.0% organic carbon [12] [26]
Cation exchange capacity - Kwoyo	89 cmol/kg	Challenges Having a larger CEC values is an indicator that the soil has a greater capacity to hold cations A high CEC soil has a greater capacity to hold cations, so higher rates of fertilizer or lime are often required to change a high CEC soil high CEC is an indicator that there is a high reserve of nutrients in the soil Soils with low CEC can take a large amount of fertilizer or lime to correct A high CEC soil requires a higher soil cation level, or soil test, to provide adequate crop nutrition Cwiny wii The higher the CEC, the larger the quantities of soil additives the soil will need to change soil pH, either when increasing pH with lime or high bicarbonate irrigation water, or when decreasing pH with nitrogen fertilizers or elemental sulfur Lok mukaro angwec CEC in the range of 50 to 100 cmol/kg clay indicates a high CEC with soils containing mixed clay with illite present CEC is highly dependent upon soil texture and organic matter content Generally, the higher the contents of clay and organic matter in the soil, the higher the CEC CEC of most soils increases with an increase in soil pH Very acid soils will have high concentrations of H+ and Al3+ In neutral to moderately alkaline soils, Ca2+ and Mg2+ dominate Poorly drained arid soils may adsorb Na in very high quantities Only a small percentage of the essential plant nutrient cations (K +, Ca 2+, Mg 2+, and NH4+) will be ‘loose’ in the soil water and thus available for plant uptake, therefore the CEC is important because it provides a reservoir of nutrients Cations in the soil water that are leached below the rootzone by water are replaced by cations formerly bound to the CEC ‘Buffer capacity’ exists for cation nutrients as well as soil pH The cation exchange capacity (CEC) of illite is smaller than that of smectite but higher than that of kaolinite Tee lok This gives the cation exchange capacity of the clay fraction in topsoil. The type of clay mineral dominantly present in the soil is often characterizes a specific set of pedogenetic factors in which the soil has developed. Tropical, leaching climates produce the clay mineral kaolinite, while confined conditions rich in Ca and Mg in climates with a pronounced dry season encourage the formation of the clay mineral smectite (montmorillonite). Nutrient retention capacity is of particular importance for the effectiveness of fertilizer applications and is therefore of special relevance for intermediate and high input level cropping conditions. Nutrient retention capacity refers to the capacity of the soil to retain added nutrients against losses caused by leaching. Plant nutrients are held in the soil on the exchange sites provided by the clay fraction, organic matter and the clay-humus complex. Losses vary with the intensity of leaching which is determined by the rate of drainage of soil moisture through the soil profile. Clay minerals have typical exchange capacities, with kaolinites generally having the lowest at less than 16 cmol/kg, while smectites have one of the highest with a CEC per 100g clay being 80 cmol/kg, or more. The classes generally used in the Harmonized World Soil Database are Class 1 = < 20 cmol/kg clay (kaolinite dominant) Class 2 = 20-50 cmol/kg clay (mixed with kaolinite present) Class 3 = >50-100 cmol/kg clay (mixed, illite) Class 4 = >100 cmol/kg clay (montmorillonite) NOTE: Soils developed on volcanic materials rich in amorphous sesquioxides may have very higher values (over 150 cmol/kg) [12]
Cation exchange capacity - Ngom	28 cmol/kg	Challenges Having a larger CEC values is an indicator that the soil has a greater capacity to hold cations A high CEC soil has a greater capacity to hold cations, so higher rates of fertilizer or lime are often required to change a high CEC soil high CEC is an indicator that there is a high reserve of nutrients in the soil Soils with low CEC can take a large amount of fertilizer or lime to correct A high CEC soil requires a higher soil cation level, or soil test, to provide adequate crop nutrition Cwiny wii The higher the CEC, the larger the quantity of lime that must be added to increase the soil pH Sandy soils need less lime than clay soils to increase the pH to desired levels The higher the CEC, the larger the quantities of soil additives the soil will need to change soil pH, either when increasing pH with lime or high bicarbonate irrigation water, or when decreasing pH with nitrogen fertilizers or elemental sulfur.. Acceptable saturation ranges for Soil CEC = 6-10: 3-5% K, 50-70% Ca, 8-20% Mg Tee lok This gives the cation exchange capacity in the topsoil. The total nutrient fixing capacity of a soil is well expressed by its Cation Exchange Capacity. Soils with low CEC have little resilience and can not build up stores of nutrients. Many sandy soils have CEC less than 4 cmol/kg. The clay content, the clay type and the organic matter content all determine the total nutrient storage capacity. Nutrient retention capacity is of particular importance for the effectiveness of fertilizer applications and is therefore of special relevance for intermediate and high input level cropping conditions. Nutrient retention capacity refers to the capacity of the soil to retain added nutrients against losses caused by leaching. Plant nutrients are held in the soil on the exchange sites provided by the clay fraction, organic matter and the clay-humus complex. Losses vary with the intensity of leaching which is determined by the rate of drainage of soil moisture through the soil profile. Values in excess of 10 cmol/kg are considered satisfactory for most crops. This is reflected by the following code system used in the Harmonized World Soil Database Code 1 = Cation Exchange Capacity < 4 cmol/kg Code 2 = Cation Exchange Capacity of 4-10 cmol/kg Code 3 = Cation Exchange Capacity > 10 -- 20 cmol/kg Code 4 = Cation Exchange Capacity > 20 -- 40 cmol/kg Code 5 = Cation Exchange Capacity > 40 cmol/kg [12] [26]
Kwoyo - Iwi miacel - Peke	10% Peke	Challenges Drains poorly, has few air spaces, warms slowly in spring, heavy to cultivate Adverse physical properties Poor workability Require too much management for success in low-technology societies Tree crops cannot root in the subsoil Tree roots are damaged as the soil shrinks and swells Low structural stability Very susceptible to water erosion Cwiny wii Do not use slopes above 5 percent for arable cropping Use groundcover crops on slopes less than 5 percent When terracing, use surface drainage to prevent slumping Add organic matter to improve the tilth, workability, and internal drainage If drainage is improved, plants can grow well in clayey soils since clay holds more nutrients than many other soils Use caution when plowing and tilling Do not plow excessively wet clays, or they will become cloddy Till clay soils only when they are dry and crumble readily In temperate climates, Plow clay soils in the fall, then leave them rough and exposed to the mellowing action of freezing and thawing Frequent, shallow tillage can help to prevent crusting of the topsoil Maize crops require deep cultivation and ridges in the soil to improve drainage (maize cannot tolerate waterlogging and can die if it stands in water for as long as 2 days) Adding lime to clay soils can improve the soil's texture to result in looser and more porous soil Use under-drainage to reduce the soil's heaviness by removing the extra water during dry periods Under-drainage promotes aeration and warmth in clay soils Loosen clay soils by mixing them with humus or sand Barnyard manure or a green manure crop will lighten heavy clay soil To lighten clay soil, spread sand on top of the clay soil and plow it under [28] [29] [30] [31] Lok mukaro angwec The feel of clay soils is slick or lumpy and sticky when very wet, and hard and smooth when dry [6] [32] Tee lok This measure the percentage of clay in the topsoil. Clay is naturally occurring firm earthy material, composed primarily of fine-grained (diameter less than 0.002mm) that is plastic when wet and hardens when heated and that consists primarily of hydrated silicates or aluminum. Clay is mostly composed of clay minerals which are phyllo-silicate minerals and minerals which impart plasticity and harden when fired or dried. The definition of "fine grained" used above is particles smaller than 2 µm, colloid chemists (and Eastern European soil scientists) may use 1 µm. The clay content of the soil is listed as a percentage (0 to 100) of the total weight of the soil. Soils is with a high percentage of clay, such as Vertisols, are used for very extensive (grazing, collection of fuelwood, and charcoal burning) through smallholder post-rainy season crop production (millet, sorghum, cotton and chickpeas) to small-scale (rice) and large-scale irrigated agriculture (cotton, wheat, barley, sorghum, chickpeas, flax, noug [Guzotia abessynica] and sugar cane). Cotton is known to perform well on Vertisols, allegedly because cotton has a vertical root system that is not damaged severely by cracking of the soil. Tree crops are generally less successful because tree roots find it difficult to establish themselves in the subsoil and are damaged as the soil shrinks and swells. Management practices for crop production should be directed primarily at water control in combination with conservation or improvement of soil fertility [12]
Gravel - Iwi miacel - Dwone	15% Peke	Challenges Gravel can affect the rooting conditions and workability of soils May be low in organic matter [12] [33] [34] [35] Cwiny wii Add organic matter fertilize regularly Use pea gravel as a mulch to protect the roots of herbs and other drought-tolerant plants Pea gravel reflects heat and provides good drainage [12] [33] [34] [35] Tee lok This measures the volume percentage of gravel in the topsoil. Gravel stands for the percentage of materials in a soil that are larger than 2 mm. Gravel can affect the rooting conditions and workability of soils. The percentage of gravel in the soil is listed on a scale of 0 to 100 percent volume [30] [36]
Kwoyo - Iwi miacel - Peke	50% Peke	Challenges Sand dries out rapidly and may lack nutrients because nutrients can be easily washed through the soil with rainfall or irrigation low in organic matter content and native fertility low in ability to retain moisture and nutrients low in cation exchange and buffer capacities rapidly permeable (i.e., rapid movement of water and air) In the perhumid tropics, sandy soils are chemically exhausted and highly sensitive to erosion Cwiny wii Use frequent irrigation, artificial drainage, and proper fertilization (more frequent but lower quantities of nutrients per application) Total amounts of fertilizer per crop are usually quite high Manage erosion and chemical exhaustion in perhumid tropical soils Add organic matter to improve texture, increase water-holding capacity, and improve fertility [37] [31] [6] [3] [4] [5] Lok mukaro angwec Sand is free-draining, has a gritty feel, warms quickly, and is easy to cultivate Feel is gritty, not sticky [6] Tee lok Sand comprises particles, or granules, ranging in diameter from 0.0625 mm (or 1/16 mm) to 2 millimeters. An individual particle in this range size is termed a sand grain. Sand feels gritty when rubbed between the fingers (silt, by comparison, feels like flour). This measures the percentage (0 to 100) by weight of sand in the topsoil. Sand is commonly divided into five sub-categories based on size very fine sand (1/16 - 1/8 mm diameter) fine sand (1/8 mm - 1/4 mm) medium sand (1/4 mm - 1/2 mm) coarse sand (1/2 mm - 1 mm) and very coarse sand (1 mm - 2 mm) [12] [26]
Kwoyo mawoko - Iwi miacel - Peke	40% Peke	Challenges erosion [38] Cwiny wii Tillage and erosion control measures such as terracing, contour plowing, mulching and use of cover crops help to conserve the soil from compaction and serious structure deterioration Fertilizers and/or lime are preconditions for continuous cultivation [39] [40] [38] Lok mukaro angwec Silty soils have a weak structure (break up easily) easy to work The feel of silt is smooth and soapy Feel is smooth or flour-like when rubbed between the thumb and fingers makes a weak ribbon (less than 2.5 cm long) [39] Tee lok Silt is produced by the mechanical weathering of rock, as opposed to the chemical weathering that results in clays. This mechanical weathering can be due to grinding by glaciers, eolian abrasion (sandblasting by the wind) as well as water erosion of rocks on the beds of rivers and streams. Silt is sometimes known as 'rock flour' or 'stone dust', especially when produced by glacial action. Mineralogically, silt is composed mainly of quartz and feldspar. This measures the percentage (0 to 100) by weight of silt in the topsoil. Soils with a lot of silt make excellent farm land, but erode easily. Erosion removes topsoil, reduces levels of soil organic matter, and contributes to the breakdown of soil structure. This creates a less favorable environment for plant growth. Soil erosion can be avoided by: maintaining a protective cover on the soil, creating a barrier to the erosive agent, modifying the landscape to control runoff amounts and rates. Specific practices to avoid water erosion: growing forage crops in rotation or as permanent cover; growing winter cover crops; interseeding; protecting the surface with crop residue; shortening the length and steepness of slopes; increasing water infiltration rates; improving aggregate stability. Specific practices to avoid wind erosion: maintaining a cover of plants or residue, planting shelterbelts, stripcropping, increase surface roughness, cultivating on the contour, maintaining soil aggregates at a size less likely to be carried by wind [12]
Electrical conductivity	0.1 dS/m	Challenges inhibited uptake of water irrigation and waterlogging can cause excess soil salinity [26] [41] Cwiny wii Control soil salinity by permitting 10-20% of the irrigation water to leach the soil, and then be drained and discharged [26] [41] Lok mukaro angwec ECe, or electrical conductivity, is a measure of soil salinity [12] Tee lok This gives the electrical conductivity of the topsoil. Coastal and desert soils in particular can be enriched with water-soluble salts or salts more soluble than gypsum. The salt content of a soil can be roughly estimated from the Electrical Conductivity of the soil (EC, expressed in dS/m) measured in a saturated soil paste or a more diluted suspension of soil in water. Accumulation of salts may cause salinity. Excess of free salts referred to as soil salinity is measured as Electric Conductivity (EC in dS/m) or as saturation of the exchange complex with sodium ions. Salinity affects crops through inhibiting the uptake of water. Moderate salinity affects growth and reduces yields; high salinity levels may kill the crop. Crops vary considerably in their resistance and response to salt in soils. Some crops will suffer at values as little as 2 dS/m (spinach) others can stand up to 16 dS/m (date palm). Agronomic relevant limits are Very low ECe < 2 dS/m Low ECe = 2 – 4 dS/m Moderate ECe = 4 – 8 dS/m High ECe = 8 – 16 dS/m Very High ECe > 16 dS/m Some plants are more tolerant to a high salt concentration than others. Highly tolerant plants include date palm, barley, sugarbeet, cotton, asparagus, spinach [12] [26]
Gypsum content CaSO4	0% Dwone	Cwiny wii Using water culture to increase the concentration of SO4 mixture (K2SO4 + MgSO4) increases the uptake of NO3, K, Mg and sulphur but decreases the uptake of Ca and P Use soil terracing to prevent erosion Use supplementary irrigation to increase productivity where water resources are available Harrow the land after harvesting and before the rainy season to improve the infiltration of water and conserve soil moisture Increase organic matter by replacing fallow by small-grain leguminous crops in the wheat-fallow rotations Add manure Use subsoiling to break the cemented gypsic subsoil to improve root penetration and reduces susceptibility to drought, especially in the case of fruit and forest trees Do not mix the topsoil and subsoil Apply nitrogen and phosphorus to cereals N is generally applied where rainfall exceeds 260 mm annually Phosphorus fertilizers increase the yield of cereals, especially under low rainfall For irrigated gypsiferous soils: The use of (NH4)2CO3 solution was found to cause the optimum elimination of gypsum in gypsiferous soils with both low and high levels of gypsum; In general, there is need for ample nitrogen fertilizers for crops grown on gypsiferous soils, especially under irrigated agriculture. There are no significant differences between the requirements of crops for nitrogen on gypsiferous and non-gypsiferous soils; Molybdenum applications might benefit many plants, especially legumes [42] [12] Lok mukaro angwec Up to 2 percent gypsum in the soil favors plant growth Most agricultural crops thrive in soils with no to very low gypsum content Tee lok Calcium sulphate (gypsum) content in topsoil. Gypsum is a chemical compound (a salt) which occurs occasionally in soils particularly in the driest areas of the globe where it can occur in a flower-like form typically opaque with embedded sand grains called desert rose. In soils it may occur in fibers, crystals or soft. Research indicates that up to 2 percent gypsum in the soil favours plant growth, between 2 and 25 percent has little or no adverse effect if in powdery form, but more than 25 percent can cause substantial reduction in yields. It is suggested that reductions are due in part to imbalanced ion ratios, particularly K:Ca and Mg:Ca. Gypsum strongly limits available soil moisture. Tolerance of crops to gypsum varies widely (FAO, 1990; Sys, 1993). Relevant limits are considered the following None to very low CaSO4 < 2% Low CaSO4 = 2 – 5% Moderate CaSO4 = 5 – 25% High CaSO4 = 25 – 40% Very High CaSO4 > 40%
Soil reaction - pH	4.5 -log H+	Challenges Very acid soils often suffer from Al toxicity. Below a pH of 6.0 (acid), nutrients such as nitrogen, phosphorus, and potassium become less available.. Some crops are tolerant for these conditions [7] [8] [9] [10] [11] Cwiny wii Add alkaline material such as limestone to decrease soil acidity Apply 2.3 kg of lime per 30 square meters to raise the pH by one point Applying wood ashes will raise soil pH--Wood ashes contain up to 70 percent calcium carbonate, as well as potassium, phosphorus, and many trace elements. Because it is powdery, wood ash is a fast-acting liming material Limit the application of wood ashes to 1 kg per 30 square meters and only apply it every other year in the same area Breed aluminum-tolerant crops [7] [8] [9] [10] Lok mukaro angwec Many plant species are adapted to acidic or alkaline soils The availability of many plant nutrients (for example, P), non-essential elements (for example, Al, Cd, Pb), and essential trace elements (for example, Mn, Fe, Cu, Zn) is strongly dependent on soil pH (Miller and Gardiner 2001) Generally, metal cations (for example, Mn, Fe, Ni, Cu, Zn, Cd, Pb) become more available as pH decreases, while oxyanions (for example, SO4) become more available at alkaline pH levels Soil pH is strongly dependent on the chemical weathering environment. Soils in hot, humid areas and even mesic, wetter areas tend to be more acidic than those of much drier areas. Vegetation communities in those areas tend to be adapted to the soil conditions in which they developed Few plant communities are adapted to strongly or severely acid soils, particularly if those conditions developed as a result of acidic atmospheric deposition more rapidly than the plant communities could adapt [12] [13] [14] Tee lok This gives the soil reaction of subsoil. pH, measured in a soil-water solution, is a measure for the acidity and alkalinity of the soil. Five major pH classes are considered here that have specific agronomic significance pH < 4.5 = Extremely acid soils include Acid Sulfate Soils (Mangrove soils, cat clays). Do not drain because by oxidation sulfuric acid will be produced and pH will drop lower still pH 4.5 – 5.5 = Very acid soils suffering often from Al toxicity. Some crops are tolerant for these conditions (Tea, Pineapple) pH 5.5 –7.2 = Acid to neutral soils - these are the best pH conditions for nutrient availability and suitable for most crops pH 7.2 – 8.5 = These pH values are indicative of carbonate rich soils. Depending on the form and concentration of calcium carbonate they may result in well structured soils which may however have depth limitations when the calcium carbonate hardens in an impermeable layer and chemically forms less available carbonates affecting nutrient availability (Phosphorus, Iron) pH > 8.5 = Indicates alkaline soils often highly sodic (Na reaching toxic levels), badly structured (columnar structure) and easily dispersed surface clays [12] [43]
Exchangeable sodium	1Ikum mia	Tee lok This gives the exchangeable sodium percentage in the topsoil. The exchangeable sodium percentage has been used to indicate levels of sodium in soils it is calculated as the ratio of Na in the CEC (or sum of cations) ESP= Na*100/CECsoil. Alternatively SAR (Sodium Adsorption Ratio) has been used (SAR= Na/Square root ((Ca+Mg)/2)) to indicate levels of sodium hazards for crops. Excess of free salts referred to as saturation of the exchange complex with sodium ions, which is referred to as sodicity or sodium alkalinity and is measured as Exchangeable Sodium Percentage (ESP). Sodicity causes sodium toxicity and affects soil structure leading to massive or coarse columnar structure with low permeability. Sodic soils have a low infiltration rate, they are poorly aerated and difficult to cultivate. Thus, sodic soils adversely affect the plants' growth. Agronomic relevant limits are Low ESP < 6% Moderate ESP = 6 – 15% High ESP = 15 – 25% Very High ESP > 25% [12] [26]
Reference bulk density	1.41 kg/dm3	Cwiny wii To reduce high bulk density and compaction, minimize soil disturbance and production activities when soils are wet, use designated field roads or rows for equipment traffic, reduce the number of trips across the area, and maintain or increase soil organic matter Use grazing systems that minimize livestock traffic and loafing, provide protected heavy use areas, and adhere to recommended minimum grazing heights Use conservation crop rotation, cover crop, deep tillage, prescribed grazing residue, and tillage management Avoid plowing, timber harvesting, or compaction of the soil [15] [16] [17] [18] Lok mukaro angwec Soil bulk density may indicate soil compaction but is dependent on many soil factors including particle size distribution, soil organic matter content, and coarse fragment content Bulk density increases as the sand and rock content increases Bulk density decreases as the organic matter content increases A mineral soil with “ideal” physical properties has 50 percent solids and 50 percent pore space occupying a given volume of space At optimal water content, half the pore space is filled with water (such a soil will have a bulk density of 1.33 g/cm3) Roots usually grow well in soils with bulk densities of up to 1.4 g/cm3 Root penetration begins to decline significantly at bulk densities above 1.7 g/cm3 Above 1.5 g/cm3, there is an increasing probability of adverse effects from soil compaction or high rock content Coarse fragments—Soils with a coarse fragment content of > 50 percent to have a greater probability of adverse effects from infiltration rates that are too high, water storage capacity that is too low, more difficult root penetration, and greater difficulty in seed germination and seedling growth A high contents of coarse fragments can limit soil productivity [15] [16] [17] [18] Tee lok Reference bulk density is a property of particulate materials. It is the mass of many particles of the material divided by the volume they occupy. The volume includes the space between particles as well as the space inside the pores of individual particles. This is a measurement in kg/dm3 of the topsoil reference bulk density. Bulk density reflects the soil’s ability to function for structural support, water and solute movement, and soil aeration. High bulk density is an indicator of low soil porosity and soil compaction. It may cause restrictions to root growth, and poor movement of air and water through the soil. Compaction can result in shallow plant rooting and poor plant growth, influencing crop yield and reducing vegetative cover available to protect soil from erosion. By reducing water infiltration into the soil, compaction can lead to increased runoff and erosion from sloping land or waterlogged soils in flatter areas. In general, some soil compaction to restrict water movement through the soil profile is beneficial under arid conditions, but under humid conditions compaction decreases yields. On cropland, long-term solutions to bulk density and soil compaction problems revolve around decreasing soil disturbance and increasing soil organic matter. A system that uses cover crops, crop residues, perennial sod, and/or reduced tillage results in increased soil organic matter, less disturbance and reduced bulk density. Additionally, the use of multi-crop systems involving plants with different rooting depths can help break up compacted soil layers [12] [40] [44]
Nitrogen (N)		Challenges Too much nitrogen in soil can harm plants Adding nitrogen is easy, but removing excess nitrogen in soil is more difficult Too much nitrogen in soil reduces the ability of plants to fruit and flower [45] [16] [17] [46] Cwiny wii Organic methods of adding nitrogen to the soil include: adding composted manure to the soil, planting a green manure crop such as borage, planting nitrogen-fixing plants such as peas or beans, and adding coffee grounds to the soil, but be careful when adding coffee grounds as this practice also creates acidity and lowers pH of the soil. Organic methods require more time than inorganic methods, but they can result in a more even distribution of the added nitrogen. Non-organic methods of adding nitrogen to the soil include the use of chemical fertilizers. A high-nitrogen fertilizer will have a high first number in the NPK ratio, for example 10-10-10. Nitrogen-containing chemical fertilizers act quickly to add nitrogen to the soil, but the nitrogen also leaves the soil quickly. If there is too much nitrogen in the soil, plant squash, cabbage, broccoli or maize which will use up large amounts of nitrogen while they grow. Note: while these plants absorb the excess nitrogen in the soil, they may look unhealthy and may produce low yields [45] [16] [17] [46] Lok mukaro angwec Total nitrogen in mineral soils (percent): > 0.5 = High – excellent reserve of nitrogen 0.1 to 0.5 = Moderate – adequate levels < 0.1 = Low – could indicate loss of organic N Nitrogen is essential for plant growth. Plants will not grow or produce without sufficient nitrogen When legumes and other nitrogen fixing plants and the bacteria called Rhizobium work together to store the nitrogen, they are creating a green warehouse in the soil. While they are growing, they release very little nitrogen into the soil, but when they are done growing and they die, their decomposition release the stored nitrogen and increases the total nitrogen in soil. Their death makes nitrogen for plants available later on. When the plant stores the nitrogen in the roots, it produces a lump on the root called a nitrogen nodule. This is harmless to the plant but very beneficial to the farm [45] [16] [17] [46]
Phosphorus (P)		Challenges Generally, it is difficult for plants to absorb phosphorus (P) so it is usually not a concern that plants will absorb too much P.: Plants grown in soils with Olsen-extractable P levels above 10 mg/kg usually will not respond to added P Do not overuse P: soils with very high levels of extractable P may have a deleterious effect on water quality if such soils are subjected to erosion and the soil particles end up in receiving waters [47] [16] [17] [46] Cwiny wii For inorganic farms, use phosphate-containing fertilizers, such as N-P-K with a high P value (the middle value) Use bone meal or rock phosphate to correct a phosphorus deficiency Add compost to the soil to help plants take up the phosphorus that is already in the soil [47] [16] [17] [46] Lok mukaro angwec Phosphorus is one of the essential nutrients required for plant growth and development. It helps plants convert other nutrients in order for the plant to grow Phosphorus is the "P" component of N-P-K fertilizers. The availability of soil P to plants depends on the forms of P in soils and soil pH In acid soils, most plant-available P is associated with Fe and Al oxides and is best extracted with the Bray 1 extractant (0.03 M NH4F + 0.025 M HCl). The Bray 1 extractant is applicable to soils with a pH below 6.8, but not to near-neutral or alkaline soils because the acid in the extract begins to dissolve Ca phosphates. These Ca phosphates usually release only small amounts of P for plant uptake unless they begin to dissolve under more acid conditions. Generally, deficiency symptoms are not exhibited by plants growing in soils with Bray 1 levels above 15 mg/kg (Soil and Plant Analysis Council 1999) In alkaline soils, most soil P is associated with Ca, either sorbed to carbonate minerals or existing as various Ca phosphate minerals, the most common of which is apatite. The Olsen (pH 8.5, 0.5 M NaHCO3) extractant was developed to measure plant-available P in alkaline soils, but it also works in many acid soils. The bicarbonate ions release P sorbed to many mineral surfaces that is plant available without dissolving the otherwise plant-unavailable P in Ca phosphates [47] [16] [17] [46]
Potassium (K)		Cwiny wii Potassium fertilizer is sometimes called potash fertilizer high potassium fertilizer contains only potassium (K) or has a high K value Compost made primarily from food byproducts, especially banana peels, is an excellent source of potassium for the soil when used as a soil additive Use wood ash as a light application to avoid burning plants Greensand can be used as a soil additive to add potassium to the soil Because potassium deficiency in plants is difficult to diagnose visually, test the soil before adding more potassium [48] [16] [17] [46] Lok mukaro angwec With all plants, potassium assists all functions within the plant. When a plant has enough potassium, it will simply be a better overall plant Potassium is important to plant growth and development. Potassium helps: plants grow faster, use water better and be more drought resistant, fight off disease, resist pests, grow stronger, and produce more crops K (mg/kg): > 500 = High – excellent reserve 100 to 500 = Moderate – adequate levels for most plants < 100 = Low – possible deficiencies [48] [16] [17] [46]

Kare	Depth	Wang otul	Texture Reaction - pH	Organic Carbon Conductivity - Electrical	Subsoil Cation Exchange	Clay Cation Exchange	Calcium Carbonate - Lime	Gypsum Sodium - Exchangeable
	Topsoil	1	4.3	33.63	77	45	0	0
	Subsoil	1	4.3	32.89	78	71	0	0

Soil Triangle - Fibric Histosols

Tee lok - Fibric Histosols

In both the FAO soil classification and the USA soil taxonomy, a histosol is a soil consisting primarily of organic materials. They are defined as having 40 centimetres (16 in) or more of organic soil material in the upper 80 centimetres (31 in). Organic soil material has an organic carbon content (by weight) of 12 to 18 percent, or more, depending on the clay content of the soil. Fibric indicates having more than two-thirds (by volume) of the organic soil material consisting of recognisable plant tissue. Aquic conditions or artificial drainage are required. Typically, histosols have very low bulk density and are poorly drained because the organic matter holds water very well. Most are acidic and many are very deficient in major plant nutrients which are washed away in the consistently moist soil. Fibric histosols are a type of peat. In Australia, histosols are called organosols. Histosols form whenever organic matter forms at a more rapid rate than it is destroyed. This occurs because of restricted drainage precluding aerobic decomposition, and the remains of plants and animals remain within the soil. Thus, histosols are very important ecologically because they, and gelisols, store large quantities of organic carbon. If accumulation continues for a long enough period, coal forms. Most histosols occur in Canada, Scandinavia, the West Siberian Plain, Sumatra, Borneo and New Guinea. Smaller areas are found in other parts of Europe, the Russian Far East (chiefly in Khabarovsk Krai and Amur Oblast), Florida and other areas of permanent swampland. Fossil histosols are known from the earliest extensive land vegetation in the Devonian. Histosols are generally very difficult to cultivate because of the poor drainage and often low chemical fertility. However, histosols formed on very recent glacial lands can often be very productive when drained and produce high-grade pasture for dairying or beef cattle. They can sometimes be used for fruit if carefully managed, but there is a great risk of the organic matter becoming drypowder and eroding under the influence of drying winds. A tendency towards shrinkage and compaction is also evident with crops

[49]

Tyen Lok - Kwoyo - Lengo

Clay contains 40% or more clay, less than 45% sand, and less than 40% silt. Clay drains poorly, has few air spaces, warms slowly in spring, and is heavy to cultivate. If drainage is improved, plants grow well as it holds more nutrients than many other soils. Extreme caution should be used in plowing and tilling clay soils. If plowed when too wet they become cloddy. There is a certain point between wetness and dryness when a clay soil crumbles quite readily; it should be tilled only at this time, so far as is possible. The texture of a clay soil may be ruined for several years by one injudicious plowing, when it was too wet. Unless the soil is very tenacious, and "runs together" or "puddles" if left bare over winter, clay land may be fall-plowed to advantage, leaving it rough and exposed to the mellowing action of freezing and thawing. The crust that forms so easily over the surface of clay soil in summer should be prevented by frequent shallow tillage. Something may also be done to improve the texture of clay soils, in certain cases, by liming them. This causes many of the fine grains to stick together, forming larger grains, thereby making the soil looser and more porous. The farm crops that succeed most generally on clay soils are the cereals, grasses and some tree fruits. Clay land is especially valuable for hay. The fine particles of clay may be separated from each other and the soil loosened and lightened by mixing them with particles of humus or sand. It is rarely practicable to haul sand upon a clay soil and plow it under, because of the expense, but if this can be done expediently the result will be gratifying

[50] [51]

Jami Apura - Fibric Histosols

fruit (with careful management)

[52] [53]

Metrics/Discussion

Wii Lok	Pire tek	Pete tere
Wang otul	1	Cwiny wii Artificial drainage is generally necessary for crop production Lok mukaro angwec An abundance of grey mottles in the soil indicates the soil is poorly drained and poorly aerated for a significant part of the year wet at shallow depths periodically during the growing season or remains wet for long periods Internal free-water is shallow or very shallow and common or persistent Unless the soil is artificially drained, the growth of most mesophytic plants is restricted The water table is the result of a low to very low saturated hydraulic conductivity class, persistent rainfall, or both Tee lok Drainage Class soils refers to the frequency and duration of periods when the soil is saturated with water. Alterations of the water regime by human activities, either through drainage or irrigation, are not a consideration unless they have significantly changed the morphology of the soil. Seven classes of natural soil drainage are recognized 1. very poorly drained 2. poorly drained 3. somewhat poorly drained 4. moderately well drained 5. well drained 6. somewhat excessively drained 7. excessively drained [23] [24]
Soil reference depth	100 mm	Challenges Soil depth limitations may affect root penetration and may constrain yield formation in roots and tubers [12] [25] Tee lok An approximation of actual soil depth can be derived through accounting for relevant depth limiting soil phases, obstacles to roots and occurrence of impermeable layers. Soil depth limitations which affect root penetration and may constrain yield formation (roots and tubers). This is a measurement in cm of reference soil depth. Reference soil depth of all soil units are set at 100 cm, except for Rendzinas and Rankers of FAO-74 and Leptosols of FAO-90, where the reference soil depth is set at 30 cm, and for Lithosols of FAO-74 and Lithic Leptosols of FAO-90, where it is set at 10 cm [12] [26]
Base saturation	62Ikum mia	Challenges Peat moss with a pH of 3.0 can be recommended as a soil additive, but peat moss is nutrient-poor, expensive, and it's a nonrenewable resource Cwiny wii To lower soil pH, add a source of acid, such as shredded leaves, sulfur, sawdust or peat moss The ideal pH range for most crops is 6.5 to 7.0, therefore some crops may require slight pH adjustment for optimal growth Lok mukaro angwec The base saturation value often shows a near linear correlation with pH Base saturation = 50-80% indicates soil conditions of neutral to slightly alkaline which are ideal conditions for most crops [12] Tee lok The base saturation of the topsoil measures the sum of exchangeable cations (nutrients) Na, Ca, Mg and K as a percentage of the overall exchange capacity of the soil (including the same cations plus H and Al). The value often shows a near linear correlation with pH. Critical values as follows Base Saturation < 20 % = desaturated soils, similar interpretation as extremely acid pH Base Saturation of 20 – 50 % = acid conditions Base Saturation of 50 – 80 % = Soil conditions of neutral to slightly alkaline which are ideal conditions for most crops Base Saturation > 80% indicates saturated conditions often calcareous, sometimes sodic or saline [12] [25]
Calcium carbonate CaCO3 - Lime	0% Peke	Lok mukaro angwec Low levels of calcium carbonate enhance soil structure and are generally beneficial for crop production [12] [27] Tee lok This gives the calcium carbonate (lime) content in the topsoil. Calcium carbonate is a chemical compound (a salt), with the chemical formula CaCO3. It is a common substance found as rock in all parts of the world, and is the main component of shells of marine organisms, snails, and eggshells. Calcium carbonate is the active ingredient in agricultural lime, and is usually the principal cause of hard water. It is quite common in soils particularly in drier areas and it may occur in different forms as mycelium-like threads, as soft powdery lime, as harder concretions or cemented in petrocalcic horizons. Low levels of calcium carbonate enhance soil structure and are generally beneficial for crop production but at higher concentrations they may induce iron deficiency and when cemented limit the water storage capacity of soils. In agronomic sense relevant limits are None to very low < 2 Low = 2 – 5 Moderate = 5 – 15 High = 15 – 40 Very High > 40 [12]
Organic carbon	33.63% Peke	Challenges Difficult to raise organic matter content of well-aerated soils (coarse sands, soils in warm-hot and arid regions) because the added materials decompose rapidly Soil organic matter levels can be maintained with less organic residue in fine-textured soils in cold temperate and moist-wet regions with restricted aeration [19] [20] [12] [16] [17] [18] Cwiny wii Increase the organic matter content by returning organic materials to soils and adding rotations with high-residue crops and deep- or dense-rooting crops Ways to increase organic matter contents of soils: compost, cover crops/green manure crops, crop rotation, perennial forage crops, zero or reduced tillage, agroforestry [19] [20] [12] [16] [17] [18] Lok mukaro angwec Organic Carbon is, together with pH, the best simple indicator of the health status of the soil Soils with very high amounts of organic carbon are generally nutrient-rich, fertile soils with a good structure Very high soil organic carbon (SOC) can be an indicator of good crop yields Total organic carbon in mineral soils (percent): 1 to 5 = adequate levels, > 5 = excellent buildup of organic C with all associated benefits [19] [20] [12] [16] [17] [18] Tee lok This gives the percentage of organic carbon in the topsoil. Organic Carbon is, together with pH, the best simple indicator of the health status of the soil. Moderate to high amounts of organic carbon are associated with fertile soils with a good structure. Soils that are very poor in organic carbon (<0.2%), invariable need organic or inorganic fertilizer application to be productive. Soils with an organic matter content of less than 0.6% are considered poor in organic matter. The following classes are suggested to prepare maps of organic carbon status for mineral soils Code 1 < 0.2% organic carbon Code 2 = 0.2 – 0.6% organic carbon Code 3 = 0.6 – 1.2% organic carbon Code 4 = 1.2 – 2.0% organic carbon Code 5 > 2.0% organic carbon [12] [26]
Cation exchange capacity - Kwoyo	45 cmol/kg	Challenges Low CEC soils are more likely to develop potassium and magnesium (and other cation) deficiencies, while high CEC soils are less susceptible to leaching losses of these cations.. For sandy soils, the addition of a large amount of potassium at one time can lead to high losses due to leaching. This is because the potassium adds a large amount of cations at one time and soil cannot hold on to the excess potassium. Therefore, frequent additions of smaller amounts of potassium can work better to add potassium to the soil than one large amount Cwiny wii The lower the CEC, the faster the soil pH will decrease with time Sandy soils require more frequent liming than clay soils The higher the CEC, the larger the quantity of lime that must be added to increase the soil pH sandy soils need less lime than clay soils to increase soil pH The higher the CEC, the larger the quantities of soil additives the soil will need to change soil pH, either when increasing pH with lime or high bicarbonate irrigation water, or when decreasing pH with nitrogen fertilizers or elemental sulfur Lok mukaro angwec CEC in the range of 20 to 50 cmol/kg clay indicates a moderate CEC with soils containing mixed clay with kaolinite present The presence of some kaolinite indicates that the soil exists in a somewhat tropical, leaching climate CEC is highly dependent upon soil texture and organic matter content Generally, the higher the contents of clay and organic matter in the soil, the higher the CEC CEC of most soils increases with an increase in soil pH Very acid soils will have high concentrations of H+ and Al3+ In neutral to moderately alkaline soils, Ca2+ and Mg2+ dominate Poorly drained arid soils may adsorb Na in very high quantities Only a small percentage of the essential plant nutrient cations (K +, Ca 2+, Mg 2+, and NH4+) will be ‘loose’ in the soil water and thus available for plant uptake, therefore the CEC is important because it provides a reservoir of nutrients Cations in the soil water that are leached below the rootzone by water are replaced by cations formerly bound to the CEC ‘Buffer capacity’ exists for cation nutrients as well as soil pH Lighter concentrations yield white, yellow or light orange colors Kaolinite has a low shrink-swell capacity and a low cation exchange capacity Tee lok This gives the cation exchange capacity of the clay fraction in topsoil. The type of clay mineral dominantly present in the soil is often characterizes a specific set of pedogenetic factors in which the soil has developed. Tropical, leaching climates produce the clay mineral kaolinite, while confined conditions rich in Ca and Mg in climates with a pronounced dry season encourage the formation of the clay mineral smectite (montmorillonite). Nutrient retention capacity is of particular importance for the effectiveness of fertilizer applications and is therefore of special relevance for intermediate and high input level cropping conditions. Nutrient retention capacity refers to the capacity of the soil to retain added nutrients against losses caused by leaching. Plant nutrients are held in the soil on the exchange sites provided by the clay fraction, organic matter and the clay-humus complex. Losses vary with the intensity of leaching which is determined by the rate of drainage of soil moisture through the soil profile. Clay minerals have typical exchange capacities, with kaolinites generally having the lowest at less than 16 cmol/kg, while smectites have one of the highest with a CEC per 100g clay being 80 cmol/kg, or more. The classes generally used in the Harmonized World Soil Database are Class 1 = < 20 cmol/kg clay (kaolinite dominant) Class 2 = 20-50 cmol/kg clay (mixed with kaolinite present) Class 3 = >50-100 cmol/kg clay (mixed, illite) Class 4 = >100 cmol/kg clay (montmorillonite) NOTE: Soils developed on volcanic materials rich in amorphous sesquioxides may have very higher values (over 150 cmol/kg) [12]
Cation exchange capacity - Ngom	77 cmol/kg	Challenges Having a larger CEC values is an indicator that the soil has a greater capacity to hold cations A high CEC soil has a greater capacity to hold cations, so higher rates of fertilizer or lime are often required to change a high CEC soil high CEC is an indicator that there is a high reserve of nutrients in the soil Soils with low CEC can take a large amount of fertilizer or lime to correct A high CEC soil requires a higher soil cation level, or soil test, to provide adequate crop nutrition Cwiny wii The higher the CEC, the larger the quantities of soil additives the soil will need to change soil pH, either when increasing pH with lime or high bicarbonate irrigation water, or when decreasing pH with nitrogen fertilizers or elemental sulfur.. Acceptable saturation ranges for Soil CEC = 6-10: 3-5% K, 50-70% Ca, 8-20% Mg Tee lok This gives the cation exchange capacity in the topsoil. The total nutrient fixing capacity of a soil is well expressed by its Cation Exchange Capacity. Soils with low CEC have little resilience and can not build up stores of nutrients. Many sandy soils have CEC less than 4 cmol/kg. The clay content, the clay type and the organic matter content all determine the total nutrient storage capacity. Nutrient retention capacity is of particular importance for the effectiveness of fertilizer applications and is therefore of special relevance for intermediate and high input level cropping conditions. Nutrient retention capacity refers to the capacity of the soil to retain added nutrients against losses caused by leaching. Plant nutrients are held in the soil on the exchange sites provided by the clay fraction, organic matter and the clay-humus complex. Losses vary with the intensity of leaching which is determined by the rate of drainage of soil moisture through the soil profile. Values in excess of 10 cmol/kg are considered satisfactory for most crops. This is reflected by the following code system used in the Harmonized World Soil Database Code 1 = Cation Exchange Capacity < 4 cmol/kg Code 2 = Cation Exchange Capacity of 4-10 cmol/kg Code 3 = Cation Exchange Capacity > 10 -- 20 cmol/kg Code 4 = Cation Exchange Capacity > 20 -- 40 cmol/kg Code 5 = Cation Exchange Capacity > 40 cmol/kg [12] [26]
Kwoyo - Iwi miacel - Peke	40% Peke	Challenges Drains poorly, has few air spaces, warms slowly in spring, heavy to cultivate Adverse physical properties Poor workability Require too much management for success in low-technology societies Tree crops cannot root in the subsoil Tree roots are damaged as the soil shrinks and swells Low structural stability Very susceptible to water erosion Cwiny wii Do not use slopes above 5 percent for arable cropping Use groundcover crops on slopes less than 5 percent When terracing, use surface drainage to prevent slumping Add organic matter to improve the tilth, workability, and internal drainage If drainage is improved, plants can grow well in clayey soils since clay holds more nutrients than many other soils Use caution when plowing and tilling Do not plow excessively wet clays, or they will become cloddy Till clay soils only when they are dry and crumble readily In temperate climates, Plow clay soils in the fall, then leave them rough and exposed to the mellowing action of freezing and thawing Frequent, shallow tillage can help to prevent crusting of the topsoil Maize crops require deep cultivation and ridges in the soil to improve drainage (maize cannot tolerate waterlogging and can die if it stands in water for as long as 2 days) Adding lime to clay soils can improve the soil's texture to result in looser and more porous soil Use under-drainage to reduce the soil's heaviness by removing the extra water during dry periods Under-drainage promotes aeration and warmth in clay soils Loosen clay soils by mixing them with humus or sand Barnyard manure or a green manure crop will lighten heavy clay soil To lighten clay soil, spread sand on top of the clay soil and plow it under [28] [29] [30] [31] Lok mukaro angwec The feel of clay soils is slick or lumpy and sticky when very wet, and hard and smooth when dry [6] [32] Tee lok This measure the percentage of clay in the topsoil. Clay is naturally occurring firm earthy material, composed primarily of fine-grained (diameter less than 0.002mm) that is plastic when wet and hardens when heated and that consists primarily of hydrated silicates or aluminum. Clay is mostly composed of clay minerals which are phyllo-silicate minerals and minerals which impart plasticity and harden when fired or dried. The definition of "fine grained" used above is particles smaller than 2 µm, colloid chemists (and Eastern European soil scientists) may use 1 µm. The clay content of the soil is listed as a percentage (0 to 100) of the total weight of the soil. Soils is with a high percentage of clay, such as Vertisols, are used for very extensive (grazing, collection of fuelwood, and charcoal burning) through smallholder post-rainy season crop production (millet, sorghum, cotton and chickpeas) to small-scale (rice) and large-scale irrigated agriculture (cotton, wheat, barley, sorghum, chickpeas, flax, noug [Guzotia abessynica] and sugar cane). Cotton is known to perform well on Vertisols, allegedly because cotton has a vertical root system that is not damaged severely by cracking of the soil. Tree crops are generally less successful because tree roots find it difficult to establish themselves in the subsoil and are damaged as the soil shrinks and swells. Management practices for crop production should be directed primarily at water control in combination with conservation or improvement of soil fertility [12]
Gravel - Iwi miacel - Dwone	1% Peke	Challenges Gravel can affect the rooting conditions and workability of soils May be low in organic matter [12] [33] [34] [35] Cwiny wii Add organic matter fertilize regularly Use pea gravel as a mulch to protect the roots of herbs and other drought-tolerant plants Pea gravel reflects heat and provides good drainage [12] [33] [34] [35] Tee lok This measures the volume percentage of gravel in the topsoil. Gravel stands for the percentage of materials in a soil that are larger than 2 mm. Gravel can affect the rooting conditions and workability of soils. The percentage of gravel in the soil is listed on a scale of 0 to 100 percent volume [30] [36]
Kwoyo - Iwi miacel - Peke	20% Peke	Challenges Sand dries out rapidly and may lack nutrients because nutrients can be easily washed through the soil with rainfall or irrigation low in organic matter content and native fertility low in ability to retain moisture and nutrients low in cation exchange and buffer capacities rapidly permeable (i.e., rapid movement of water and air) In the perhumid tropics, sandy soils are chemically exhausted and highly sensitive to erosion Cwiny wii Use frequent irrigation, artificial drainage, and proper fertilization (more frequent but lower quantities of nutrients per application) Total amounts of fertilizer per crop are usually quite high Manage erosion and chemical exhaustion in perhumid tropical soils Add organic matter to improve texture, increase water-holding capacity, and improve fertility [37] [31] [6] [3] [4] [5] Lok mukaro angwec Sand is free-draining, has a gritty feel, warms quickly, and is easy to cultivate Feel is gritty, not sticky [6] Tee lok Sand comprises particles, or granules, ranging in diameter from 0.0625 mm (or 1/16 mm) to 2 millimeters. An individual particle in this range size is termed a sand grain. Sand feels gritty when rubbed between the fingers (silt, by comparison, feels like flour). This measures the percentage (0 to 100) by weight of sand in the topsoil. Sand is commonly divided into five sub-categories based on size very fine sand (1/16 - 1/8 mm diameter) fine sand (1/8 mm - 1/4 mm) medium sand (1/4 mm - 1/2 mm) coarse sand (1/2 mm - 1 mm) and very coarse sand (1 mm - 2 mm) [12] [26]
Kwoyo mawoko - Iwi miacel - Peke	40% Peke	Challenges erosion [38] Cwiny wii Tillage and erosion control measures such as terracing, contour plowing, mulching and use of cover crops help to conserve the soil from compaction and serious structure deterioration Fertilizers and/or lime are preconditions for continuous cultivation [39] [40] [38] Lok mukaro angwec Silty soils have a weak structure (break up easily) easy to work The feel of silt is smooth and soapy Feel is smooth or flour-like when rubbed between the thumb and fingers makes a weak ribbon (less than 2.5 cm long) [39] Tee lok Silt is produced by the mechanical weathering of rock, as opposed to the chemical weathering that results in clays. This mechanical weathering can be due to grinding by glaciers, eolian abrasion (sandblasting by the wind) as well as water erosion of rocks on the beds of rivers and streams. Silt is sometimes known as 'rock flour' or 'stone dust', especially when produced by glacial action. Mineralogically, silt is composed mainly of quartz and feldspar. This measures the percentage (0 to 100) by weight of silt in the topsoil. Soils with a lot of silt make excellent farm land, but erode easily. Erosion removes topsoil, reduces levels of soil organic matter, and contributes to the breakdown of soil structure. This creates a less favorable environment for plant growth. Soil erosion can be avoided by: maintaining a protective cover on the soil, creating a barrier to the erosive agent, modifying the landscape to control runoff amounts and rates. Specific practices to avoid water erosion: growing forage crops in rotation or as permanent cover; growing winter cover crops; interseeding; protecting the surface with crop residue; shortening the length and steepness of slopes; increasing water infiltration rates; improving aggregate stability. Specific practices to avoid wind erosion: maintaining a cover of plants or residue, planting shelterbelts, stripcropping, increase surface roughness, cultivating on the contour, maintaining soil aggregates at a size less likely to be carried by wind [12]
Electrical conductivity	0.1 dS/m	Challenges inhibited uptake of water irrigation and waterlogging can cause excess soil salinity [26] [41] Cwiny wii Control soil salinity by permitting 10-20% of the irrigation water to leach the soil, and then be drained and discharged [26] [41] Lok mukaro angwec ECe, or electrical conductivity, is a measure of soil salinity [12] Tee lok This gives the electrical conductivity of the topsoil. Coastal and desert soils in particular can be enriched with water-soluble salts or salts more soluble than gypsum. The salt content of a soil can be roughly estimated from the Electrical Conductivity of the soil (EC, expressed in dS/m) measured in a saturated soil paste or a more diluted suspension of soil in water. Accumulation of salts may cause salinity. Excess of free salts referred to as soil salinity is measured as Electric Conductivity (EC in dS/m) or as saturation of the exchange complex with sodium ions. Salinity affects crops through inhibiting the uptake of water. Moderate salinity affects growth and reduces yields; high salinity levels may kill the crop. Crops vary considerably in their resistance and response to salt in soils. Some crops will suffer at values as little as 2 dS/m (spinach) others can stand up to 16 dS/m (date palm). Agronomic relevant limits are Very low ECe < 2 dS/m Low ECe = 2 – 4 dS/m Moderate ECe = 4 – 8 dS/m High ECe = 8 – 16 dS/m Very High ECe > 16 dS/m Some plants are more tolerant to a high salt concentration than others. Highly tolerant plants include date palm, barley, sugarbeet, cotton, asparagus, spinach [12] [26]
Gypsum content CaSO4	0% Dwone	Cwiny wii Using water culture to increase the concentration of SO4 mixture (K2SO4 + MgSO4) increases the uptake of NO3, K, Mg and sulphur but decreases the uptake of Ca and P Use soil terracing to prevent erosion Use supplementary irrigation to increase productivity where water resources are available Harrow the land after harvesting and before the rainy season to improve the infiltration of water and conserve soil moisture Increase organic matter by replacing fallow by small-grain leguminous crops in the wheat-fallow rotations Add manure Use subsoiling to break the cemented gypsic subsoil to improve root penetration and reduces susceptibility to drought, especially in the case of fruit and forest trees Do not mix the topsoil and subsoil Apply nitrogen and phosphorus to cereals N is generally applied where rainfall exceeds 260 mm annually Phosphorus fertilizers increase the yield of cereals, especially under low rainfall For irrigated gypsiferous soils: The use of (NH4)2CO3 solution was found to cause the optimum elimination of gypsum in gypsiferous soils with both low and high levels of gypsum; In general, there is need for ample nitrogen fertilizers for crops grown on gypsiferous soils, especially under irrigated agriculture. There are no significant differences between the requirements of crops for nitrogen on gypsiferous and non-gypsiferous soils; Molybdenum applications might benefit many plants, especially legumes [42] [12] Lok mukaro angwec Up to 2 percent gypsum in the soil favors plant growth Most agricultural crops thrive in soils with no to very low gypsum content Tee lok Calcium sulphate (gypsum) content in topsoil. Gypsum is a chemical compound (a salt) which occurs occasionally in soils particularly in the driest areas of the globe where it can occur in a flower-like form typically opaque with embedded sand grains called desert rose. In soils it may occur in fibers, crystals or soft. Research indicates that up to 2 percent gypsum in the soil favours plant growth, between 2 and 25 percent has little or no adverse effect if in powdery form, but more than 25 percent can cause substantial reduction in yields. It is suggested that reductions are due in part to imbalanced ion ratios, particularly K:Ca and Mg:Ca. Gypsum strongly limits available soil moisture. Tolerance of crops to gypsum varies widely (FAO, 1990; Sys, 1993). Relevant limits are considered the following None to very low CaSO4 < 2% Low CaSO4 = 2 – 5% Moderate CaSO4 = 5 – 25% High CaSO4 = 25 – 40% Very High CaSO4 > 40%
Soil reaction - pH	4.3 -log H+	Challenges Approximately a third of all tropical soils are too acidic to support traditional food crops Below a pH of 6.0 (acid), nutrients such as nitrogen, phosphorus, and potassium become less available Soils in the humid tropics are normally highly acidic and nutrient poor Heavy rains, especially monsoon rains, lead to rapid nutrient leaching, and chemical weathering of the soil Standard temperate strategies for improving nutrient poor soil, such as composting, have limited application in such an environment due to rapid leaching Extremely acid soils do not drain because by oxidation sulfuric acid will be produced and pH will drop lower still Plants grown in acid soils can show symptoms such as Al, H, and/or Mn toxicity, and potential nutrient deficiencies of Ca and Mg Al can damage roots In root tips, Al interferes with the uptake of Ca, an essential nutrient, and binds with phosphate and interfere with production of ATP and DNA, which both contain phosphate Al can restrict cell wall expansion causing roots to become stunted Below pH 4, H+ ions damage root cell membranes In soils with high content of Manganese (Mn)-containing minerals, Mn toxicity can occur at pH 5.6 and below Mn becomes more soluble as pH drops Mn toxicity symptoms can be seen at pH's below 5.6 Mn is an essential plant nutrient. Plants transport Mn into leaves. Classic symptoms of Mn toxicity are crinkling or cupping of leaves [7] [8] [9] [10] [11] Cwiny wii Add alkaline material such as limestone to decrease soil acidity Apply 2.3 kg of lime per 30 square meters to raise the pH by one point Applying wood ashes will raise soil pH--Wood ashes contain up to 70 percent calcium carbonate, as well as potassium, phosphorus, and many trace elements. Because it is powdery, wood ash is a fast-acting liming material Limit the application of wood ashes to 1 kg per 30 square meters and only apply it every other year in the same area Breed aluminum-tolerant crops [7] [8] [9] [10] Lok mukaro angwec Extremely acid soils include acid sulfate soils (mangrove soils, cat clays) Although many plant species are adapted to acidic or alkaline soils, vegetation diversity tends to decline at strongly acid (pH < 4) The availability of many plant nutrients (for example, P), non-essential elements (for example, Al, Cd, Pb), and essential trace elements (for example, Mn, Fe, Cu, Zn) is strongly dependent on soil pH (Miller and Gardiner 2001) Generally, metal cations (for example, Mn, Fe, Ni, Cu, Zn, Cd, Pb) become more available as pH decreases, while oxyanions (for example, SO4) become more available at alkaline pH levels Soil pH is strongly dependent on the chemical weathering environment. Soils in hot, humid areas and even mesic, wetter areas tend to be more acidic than those of much drier areas. Vegetation communities in those areas tend to be adapted to the soil conditions in which they developed However, few plant communities are adapted to strongly or severely acid soils, particularly if those conditions developed as a result of acidic atmospheric deposition more rapidly than the plant communities could adapt [12] [13] [14] Tee lok This gives the soil reaction of subsoil. pH, measured in a soil-water solution, is a measure for the acidity and alkalinity of the soil. Five major pH classes are considered here that have specific agronomic significance pH < 4.5 = Extremely acid soils include Acid Sulfate Soils (Mangrove soils, cat clays). Do not drain because by oxidation sulfuric acid will be produced and pH will drop lower still pH 4.5 – 5.5 = Very acid soils suffering often from Al toxicity. Some crops are tolerant for these conditions (Tea, Pineapple) pH 5.5 –7.2 = Acid to neutral soils - these are the best pH conditions for nutrient availability and suitable for most crops pH 7.2 – 8.5 = These pH values are indicative of carbonate rich soils. Depending on the form and concentration of calcium carbonate they may result in well structured soils which may however have depth limitations when the calcium carbonate hardens in an impermeable layer and chemically forms less available carbonates affecting nutrient availability (Phosphorus, Iron) pH > 8.5 = Indicates alkaline soils often highly sodic (Na reaching toxic levels), badly structured (columnar structure) and easily dispersed surface clays [12] [43]
Exchangeable sodium	2Ikum mia	Challenges Sodicity causes sodium toxicity and affects soil structure leading to massive or coarse columnar structure with low permeability to water and roots low infiltration rate poorly aerated difficult to cultivate sodic soils can adversely affect plant growth high pH lowers availability of some essential plant nutrients, such as calcium, magnesium, P, Fe, Mn, and Zn risk of toxic levels of sodium, molybdenum, and boron Tee lok This gives the exchangeable sodium percentage in the topsoil. The exchangeable sodium percentage has been used to indicate levels of sodium in soils it is calculated as the ratio of Na in the CEC (or sum of cations) ESP= Na*100/CECsoil. Alternatively SAR (Sodium Adsorption Ratio) has been used (SAR= Na/Square root ((Ca+Mg)/2)) to indicate levels of sodium hazards for crops. Excess of free salts referred to as saturation of the exchange complex with sodium ions, which is referred to as sodicity or sodium alkalinity and is measured as Exchangeable Sodium Percentage (ESP). Sodicity causes sodium toxicity and affects soil structure leading to massive or coarse columnar structure with low permeability. Sodic soils have a low infiltration rate, they are poorly aerated and difficult to cultivate. Thus, sodic soils adversely affect the plants' growth. Agronomic relevant limits are Low ESP < 6% Moderate ESP = 6 – 15% High ESP = 15 – 25% Very High ESP > 25% [12] [26]
Reference bulk density	0.1 kg/dm3	Cwiny wii To reduce high bulk density and compaction, minimize soil disturbance and production activities when soils are wet, use designated field roads or rows for equipment traffic, reduce the number of trips across the area, and maintain or increase soil organic matter Use grazing systems that minimize livestock traffic and loafing, provide protected heavy use areas, and adhere to recommended minimum grazing heights Use conservation crop rotation, cover crop, deep tillage, prescribed grazing residue, and tillage management Avoid plowing, timber harvesting, or compaction of the soil [15] [16] [17] [18] Lok mukaro angwec Soil bulk density may indicate soil compaction but is dependent on many soil factors including particle size distribution, soil organic matter content, and coarse fragment content Bulk density increases as the sand and rock content increases Bulk density decreases as the organic matter content increases A mineral soil with “ideal” physical properties has 50 percent solids and 50 percent pore space occupying a given volume of space At optimal water content, half the pore space is filled with water (such a soil will have a bulk density of 1.33 g/cm3) Roots usually grow well in soils with bulk densities of up to 1.4 g/cm3 Root penetration begins to decline significantly at bulk densities above 1.7 g/cm3 Above 1.5 g/cm3, there is an increasing probability of adverse effects from soil compaction or high rock content Coarse fragments—Soils with a coarse fragment content of > 50 percent to have a greater probability of adverse effects from infiltration rates that are too high, water storage capacity that is too low, more difficult root penetration, and greater difficulty in seed germination and seedling growth A high contents of coarse fragments can limit soil productivity [15] [16] [17] [18] Tee lok Reference bulk density is a property of particulate materials. It is the mass of many particles of the material divided by the volume they occupy. The volume includes the space between particles as well as the space inside the pores of individual particles. This is a measurement in kg/dm3 of the topsoil reference bulk density. Bulk density reflects the soil’s ability to function for structural support, water and solute movement, and soil aeration. High bulk density is an indicator of low soil porosity and soil compaction. It may cause restrictions to root growth, and poor movement of air and water through the soil. Compaction can result in shallow plant rooting and poor plant growth, influencing crop yield and reducing vegetative cover available to protect soil from erosion. By reducing water infiltration into the soil, compaction can lead to increased runoff and erosion from sloping land or waterlogged soils in flatter areas. In general, some soil compaction to restrict water movement through the soil profile is beneficial under arid conditions, but under humid conditions compaction decreases yields. On cropland, long-term solutions to bulk density and soil compaction problems revolve around decreasing soil disturbance and increasing soil organic matter. A system that uses cover crops, crop residues, perennial sod, and/or reduced tillage results in increased soil organic matter, less disturbance and reduced bulk density. Additionally, the use of multi-crop systems involving plants with different rooting depths can help break up compacted soil layers [12] [40] [44]
Nitrogen (N)		Challenges Too much nitrogen in soil can harm plants Adding nitrogen is easy, but removing excess nitrogen in soil is more difficult Too much nitrogen in soil reduces the ability of plants to fruit and flower [45] [16] [17] [46] Cwiny wii Organic methods of adding nitrogen to the soil include: adding composted manure to the soil, planting a green manure crop such as borage, planting nitrogen-fixing plants such as peas or beans, and adding coffee grounds to the soil, but be careful when adding coffee grounds as this practice also creates acidity and lowers pH of the soil. Organic methods require more time than inorganic methods, but they can result in a more even distribution of the added nitrogen. Non-organic methods of adding nitrogen to the soil include the use of chemical fertilizers. A high-nitrogen fertilizer will have a high first number in the NPK ratio, for example 10-10-10. Nitrogen-containing chemical fertilizers act quickly to add nitrogen to the soil, but the nitrogen also leaves the soil quickly. If there is too much nitrogen in the soil, plant squash, cabbage, broccoli or maize which will use up large amounts of nitrogen while they grow. Note: while these plants absorb the excess nitrogen in the soil, they may look unhealthy and may produce low yields [45] [16] [17] [46] Lok mukaro angwec Total nitrogen in mineral soils (percent): > 0.5 = High – excellent reserve of nitrogen 0.1 to 0.5 = Moderate – adequate levels < 0.1 = Low – could indicate loss of organic N Nitrogen is essential for plant growth. Plants will not grow or produce without sufficient nitrogen When legumes and other nitrogen fixing plants and the bacteria called Rhizobium work together to store the nitrogen, they are creating a green warehouse in the soil. While they are growing, they release very little nitrogen into the soil, but when they are done growing and they die, their decomposition release the stored nitrogen and increases the total nitrogen in soil. Their death makes nitrogen for plants available later on. When the plant stores the nitrogen in the roots, it produces a lump on the root called a nitrogen nodule. This is harmless to the plant but very beneficial to the farm [45] [16] [17] [46]
Phosphorus (P)		Challenges Generally, it is difficult for plants to absorb phosphorus (P) so it is usually not a concern that plants will absorb too much P.: Plants grown in soils with Olsen-extractable P levels above 10 mg/kg usually will not respond to added P Do not overuse P: soils with very high levels of extractable P may have a deleterious effect on water quality if such soils are subjected to erosion and the soil particles end up in receiving waters [47] [16] [17] [46] Cwiny wii For inorganic farms, use phosphate-containing fertilizers, such as N-P-K with a high P value (the middle value) Use bone meal or rock phosphate to correct a phosphorus deficiency Add compost to the soil to help plants take up the phosphorus that is already in the soil [47] [16] [17] [46] Lok mukaro angwec Phosphorus is one of the essential nutrients required for plant growth and development. It helps plants convert other nutrients in order for the plant to grow Phosphorus is the "P" component of N-P-K fertilizers. The availability of soil P to plants depends on the forms of P in soils and soil pH In acid soils, most plant-available P is associated with Fe and Al oxides and is best extracted with the Bray 1 extractant (0.03 M NH4F + 0.025 M HCl). The Bray 1 extractant is applicable to soils with a pH below 6.8, but not to near-neutral or alkaline soils because the acid in the extract begins to dissolve Ca phosphates. These Ca phosphates usually release only small amounts of P for plant uptake unless they begin to dissolve under more acid conditions. Generally, deficiency symptoms are not exhibited by plants growing in soils with Bray 1 levels above 15 mg/kg (Soil and Plant Analysis Council 1999) In alkaline soils, most soil P is associated with Ca, either sorbed to carbonate minerals or existing as various Ca phosphate minerals, the most common of which is apatite. The Olsen (pH 8.5, 0.5 M NaHCO3) extractant was developed to measure plant-available P in alkaline soils, but it also works in many acid soils. The bicarbonate ions release P sorbed to many mineral surfaces that is plant available without dissolving the otherwise plant-unavailable P in Ca phosphates [47] [16] [17] [46]
Potassium (K)		Cwiny wii Potassium fertilizer is sometimes called potash fertilizer high potassium fertilizer contains only potassium (K) or has a high K value Compost made primarily from food byproducts, especially banana peels, is an excellent source of potassium for the soil when used as a soil additive Use wood ash as a light application to avoid burning plants Greensand can be used as a soil additive to add potassium to the soil Because potassium deficiency in plants is difficult to diagnose visually, test the soil before adding more potassium [48] [16] [17] [46] Lok mukaro angwec With all plants, potassium assists all functions within the plant. When a plant has enough potassium, it will simply be a better overall plant Potassium is important to plant growth and development. Potassium helps: plants grow faster, use water better and be more drought resistant, fight off disease, resist pests, grow stronger, and produce more crops K (mg/kg): > 500 = High – excellent reserve 100 to 500 = Moderate – adequate levels for most plants < 100 = Low – possible deficiencies [48] [16] [17] [46]

Kare	Depth	Wang otul	Texture Reaction - pH	Organic Carbon Conductivity - Electrical	Subsoil Cation Exchange	Clay Cation Exchange	Calcium Carbonate - Lime	Gypsum Sodium - Exchangeable
	Topsoil	6	6.2	0.4	3	35	0	0
	Subsoil	6	6.2	0.21	2	39	0	0

Soil Triangle - Haplic Arenosols

Tee lok - Haplic Arenosols

Arenosols comprise sandy soils, including both soils developed in residual sands after in situ weathering of usually quartz-rich sediments or rock, and soils developed in recently deposited sands such as dunes in deserts and beach lands. Corresponding soils in other classification systems include Psamments of the US Soil Taxonomy and the sols minéraux bruts and sols peu 72 évolués in the French classification system of the CPCS (1967). Many Arenosols belong to Arenic Rudosols (Australia), Psammozems (Russian Federation) and Neossolos (Brazil). Haplic indicates that the major part of the upper 0.5 m of the soil profile is whole coloured. Vast expanses of deep aeolian sands are found on the Central African plateau between the equator and 30 °S. These Kalahari Sands form the largest body of sands on Earth. Other areas of Arenosols occur in the Sahelian region of Africa, various parts of the Sahara, central and western Australia, the Near East, and China. Sandy coastal plains and coastal dune areas are of smaller geographic extent. Although most Arenosols occur in arid and semi-arid regions, they are typical azonal soils; they are found in the widest possible range of climates, from very arid to very humid and from cold to hot. Arenosols are widespread in aeolian landscapes but occur also in marine, littoral, and lacustrine sands and in coarse-grained weathering mantles of siliceous rocks, mainly sandstone, quartzite and granite. There is no limitation as to age or period in which soil formation took place. Arenosols occur on very old surfaces as well as in very recent landforms, and may be associated with almost any type of vegetation. Arenosols occur in widely different environments, and possibilities to use them for agriculture vary accordingly. The characteristic that all Arenosols have in common is their coarse texture, accounting for their generally high permeability and low water and nutrient storage capacity. On the other hand, Arenosols offer ease of cultivation, rooting and harvesting of root and tuber crops. Arenosols in arid lands, where the annual rainfall is less than 300 mm, are predominantly used for extensive (nomadic) grazing. Dry farming is possible where the annual rainfall exceeds 300 mm. Low coherence, low nutrient storage capacity and high sensitivity to erosion are serious limitations of Arenosols in the dry zone. Good yields of small grains, melons, pulses and fodder crops have been realized on irrigated Arenosols, but high percolation losses may make surface irrigation impracticable. Drip or trickle irrigation, possibly combined with careful dosage of fertilizers, may remedy the situation. Many areas with Arenosols in the Sahelian zone (annual rainfall of 300–600 mm) are transitional to the Sahara, and their soils are covered with sparse vegetation. Uncontrolled grazing and clearing for cultivation without appropriate soil conservation measures can easily make these soils unstable and revert them to shifting dunes. Arenosols in the humid and subhumid temperate zone have similar limitations as those of the dry zone, albeit that drought is a less serious constraint. In some instances, e.g. in horticulture, the low water storage of Arenosols is considered advantageous because the soils warm up early in the season. In mixed farming systems (which are much more common) with cereals, fodder crops and grassland, supplemental sprinkler irrigation is applied during dry spells. A large part of the Arenosols of the temperate zone is under forest, either production forest or natural stands in carefully managed nature reserves. In places, Arenosols have been planted to perennial crops such as rubber and pepper; coastal sands are widely planted to estate crops such as coconut, cashew, casuarinas and pine, especially where good quality groundwater is within reach of the root system. Root and tuber crops benefit from the ease of harvesting, notably cassava, with its tolerance of low nutrient levels. Groundnut and bambara groundnut can be found on the better soils. Arenosols and related soils with a sandy surface texture in some regions (e.g. west Australia and parts of South Africa) may be prone to develop water-repellency, typically caused by hydrophobic exudates of soil fungi that coat sand grains. Water-repellency is most intense after lengthy spells of hot, dry weather and leads to differential water infiltration. This is thought to have ecological significance in promoting plant species diversity (e.g. in Namaqualand). Wetting agents (surfactants such as calcium lignosulphonate) are sometimes used to achieve more uniform water penetration under irrigation. Dryland wheat farmers in Australia mine clay and apply it to their sandy soils with specialized machinery. The results (more uniform germination and better herbicide efficiency) can be economically attractive where a local source of clay is available

[30] [54]

Tyen Lok - Kwoyo

Sand is free-draining soil, gritty to the touch, warms up quickly in spring, easy to cultivate, dries out rapidly, and may lack nutrients, which are easily washed through the soil in wet weather (often called a "hungry" soil)

[31]

Jami Apura - Haplic Arenosols

root and tuber crops, such as cassava
dry farming
Gemi ma nyige
small grains, melons, pulses, fodder crops on irrigated Arenosols
forest in the temperate zone
raba
Kalara
Tugu
Kacunat
casuarinas
pine
Pul
bambara groundnut

[55] [56] [57]

Metrics/Discussion

Wii Lok	Pire tek	Pete tere
Wang otul	6	Cwiny wii Adding organic matter will improve the water-holding capacity of excessively drained soils for a while, but the organic matter will decompose over time and the soil will again hold less moisture Lok mukaro angwec Water moves through the soil rapidly Internal free water is very rare or very deep coarse-textured very high saturated hydraulic conductivity lack redoximorphic features These soils can be steep and/or very porous Shallow soils on slopes may drain excessively Water loss due to excessive drainage commonly causes unsuitability for most crop production Tee lok Drainage Class soils refers to the frequency and duration of periods when the soil is saturated with water. Alterations of the water regime by human activities, either through drainage or irrigation, are not a consideration unless they have significantly changed the morphology of the soil. Seven classes of natural soil drainage are recognized 1. very poorly drained 2. poorly drained 3. somewhat poorly drained 4. moderately well drained 5. well drained 6. somewhat excessively drained 7. excessively drained [23] [24]
Soil reference depth	100 mm	Challenges Soil depth limitations may affect root penetration and may constrain yield formation in roots and tubers [12] [25] Tee lok An approximation of actual soil depth can be derived through accounting for relevant depth limiting soil phases, obstacles to roots and occurrence of impermeable layers. Soil depth limitations which affect root penetration and may constrain yield formation (roots and tubers). This is a measurement in cm of reference soil depth. Reference soil depth of all soil units are set at 100 cm, except for Rendzinas and Rankers of FAO-74 and Leptosols of FAO-90, where the reference soil depth is set at 30 cm, and for Lithosols of FAO-74 and Lithic Leptosols of FAO-90, where it is set at 10 cm [12] [26]
Base saturation	93Ikum mia	Challenges low infiltration capacity irrigation is not possible agriculture is limited to crops tolerant to surface waterlogging (e.g. rice, grasses) productivity is low Strongly alkaline soils are often highly sodic (Na reaching toxic levels), badly structured (columnar structure) and easily dispersed surface clays Above a pH of 7.5 (very alkaline), some nutrients such as iron, manganese, and phosphorus are less available Cwiny wii To lower soil pH, add a source of acid, such as shredded leaves, sulfur, sawdust or peat moss Lok mukaro angwec The base saturation value often shows a near linear correlation with pH Base saturation > 80% indicates saturated soil conditions often calcareous, sometimes sodic or saline [12] Tee lok The base saturation of the topsoil measures the sum of exchangeable cations (nutrients) Na, Ca, Mg and K as a percentage of the overall exchange capacity of the soil (including the same cations plus H and Al). The value often shows a near linear correlation with pH. Critical values as follows Base Saturation < 20 % = desaturated soils, similar interpretation as extremely acid pH Base Saturation of 20 – 50 % = acid conditions Base Saturation of 50 – 80 % = Soil conditions of neutral to slightly alkaline which are ideal conditions for most crops Base Saturation > 80% indicates saturated conditions often calcareous, sometimes sodic or saline [12] [25]
Calcium carbonate CaCO3 - Lime	0% Peke	Lok mukaro angwec Low levels of calcium carbonate enhance soil structure and are generally beneficial for crop production [12] [27] Tee lok This gives the calcium carbonate (lime) content in the topsoil. Calcium carbonate is a chemical compound (a salt), with the chemical formula CaCO3. It is a common substance found as rock in all parts of the world, and is the main component of shells of marine organisms, snails, and eggshells. Calcium carbonate is the active ingredient in agricultural lime, and is usually the principal cause of hard water. It is quite common in soils particularly in drier areas and it may occur in different forms as mycelium-like threads, as soft powdery lime, as harder concretions or cemented in petrocalcic horizons. Low levels of calcium carbonate enhance soil structure and are generally beneficial for crop production but at higher concentrations they may induce iron deficiency and when cemented limit the water storage capacity of soils. In agronomic sense relevant limits are None to very low < 2 Low = 2 – 5 Moderate = 5 – 15 High = 15 – 40 Very High > 40 [12]
Organic carbon	0.4% Peke	Challenges Soils with an organic matter content of less than 0.6% are considered poor in organic matter Total organic carbon in mineral soils (percent): < 1 = could indicate possible loss of organic C from erosion or other processes, particularly in temperate or colder areas [19] [20] [12] [16] [17] [18] Cwiny wii Apply fertilizer to raise the amount of organic carbon in the soil to increase the soil's fertility and structure If fertilizers are not available, planting pits increase biomass production and crop yields on severely degraded land in semi-arid conditions: Rainfall is concentrated near the plants, and soil faunal activity and organic matter accumulation are concentrated in the planting pits Increase the organic matter content by returning organic materials to soils and adding rotations with high-residue crops and deep- or dense-rooting crops Ways to increase organic matter contents of soils: compost, cover crops/green manure crops, crop rotation, perennial forage crops, zero or reduced tillage, agroforestry [19] [20] [12] [16] [17] [18] Lok mukaro angwec Organic Carbon is, together with pH, the best simple indicator of the health status of the soil Low soil organic carbon (SOC) in the soil is an indicator of low crop yields [19] [20] [12] [16] [17] [18] Tee lok This gives the percentage of organic carbon in the topsoil. Organic Carbon is, together with pH, the best simple indicator of the health status of the soil. Moderate to high amounts of organic carbon are associated with fertile soils with a good structure. Soils that are very poor in organic carbon (<0.2%), invariable need organic or inorganic fertilizer application to be productive. Soils with an organic matter content of less than 0.6% are considered poor in organic matter. The following classes are suggested to prepare maps of organic carbon status for mineral soils Code 1 < 0.2% organic carbon Code 2 = 0.2 – 0.6% organic carbon Code 3 = 0.6 – 1.2% organic carbon Code 4 = 1.2 – 2.0% organic carbon Code 5 > 2.0% organic carbon [12] [26]
Cation exchange capacity - Kwoyo	35 cmol/kg	Challenges Low CEC soils are more likely to develop potassium and magnesium (and other cation) deficiencies, while high CEC soils are less susceptible to leaching losses of these cations.. For sandy soils, the addition of a large amount of potassium at one time can lead to high losses due to leaching. This is because the potassium adds a large amount of cations at one time and soil cannot hold on to the excess potassium. Therefore, frequent additions of smaller amounts of potassium can work better to add potassium to the soil than one large amount Cwiny wii The lower the CEC, the faster the soil pH will decrease with time Sandy soils require more frequent liming than clay soils The higher the CEC, the larger the quantity of lime that must be added to increase the soil pH sandy soils need less lime than clay soils to increase soil pH The higher the CEC, the larger the quantities of soil additives the soil will need to change soil pH, either when increasing pH with lime or high bicarbonate irrigation water, or when decreasing pH with nitrogen fertilizers or elemental sulfur Lok mukaro angwec CEC in the range of 20 to 50 cmol/kg clay indicates a moderate CEC with soils containing mixed clay with kaolinite present The presence of some kaolinite indicates that the soil exists in a somewhat tropical, leaching climate CEC is highly dependent upon soil texture and organic matter content Generally, the higher the contents of clay and organic matter in the soil, the higher the CEC CEC of most soils increases with an increase in soil pH Very acid soils will have high concentrations of H+ and Al3+ In neutral to moderately alkaline soils, Ca2+ and Mg2+ dominate Poorly drained arid soils may adsorb Na in very high quantities Only a small percentage of the essential plant nutrient cations (K +, Ca 2+, Mg 2+, and NH4+) will be ‘loose’ in the soil water and thus available for plant uptake, therefore the CEC is important because it provides a reservoir of nutrients Cations in the soil water that are leached below the rootzone by water are replaced by cations formerly bound to the CEC ‘Buffer capacity’ exists for cation nutrients as well as soil pH Lighter concentrations yield white, yellow or light orange colors Kaolinite has a low shrink-swell capacity and a low cation exchange capacity Tee lok This gives the cation exchange capacity of the clay fraction in topsoil. The type of clay mineral dominantly present in the soil is often characterizes a specific set of pedogenetic factors in which the soil has developed. Tropical, leaching climates produce the clay mineral kaolinite, while confined conditions rich in Ca and Mg in climates with a pronounced dry season encourage the formation of the clay mineral smectite (montmorillonite). Nutrient retention capacity is of particular importance for the effectiveness of fertilizer applications and is therefore of special relevance for intermediate and high input level cropping conditions. Nutrient retention capacity refers to the capacity of the soil to retain added nutrients against losses caused by leaching. Plant nutrients are held in the soil on the exchange sites provided by the clay fraction, organic matter and the clay-humus complex. Losses vary with the intensity of leaching which is determined by the rate of drainage of soil moisture through the soil profile. Clay minerals have typical exchange capacities, with kaolinites generally having the lowest at less than 16 cmol/kg, while smectites have one of the highest with a CEC per 100g clay being 80 cmol/kg, or more. The classes generally used in the Harmonized World Soil Database are Class 1 = < 20 cmol/kg clay (kaolinite dominant) Class 2 = 20-50 cmol/kg clay (mixed with kaolinite present) Class 3 = >50-100 cmol/kg clay (mixed, illite) Class 4 = >100 cmol/kg clay (montmorillonite) NOTE: Soils developed on volcanic materials rich in amorphous sesquioxides may have very higher values (over 150 cmol/kg) [12]
Cation exchange capacity - Ngom	3 cmol/kg	Challenges Low CEC soils are more likely to develop potassium and magnesium (and other cation) deficiencies, while high CEC soils are less susceptible to leaching losses of these cations For sandy soils, the addition of a large amount of potassium at one time can lead to high losses due to leaching. This is because the potassium adds a large amount of cations at one time and soil cannot hold on to the excess potassium. Therefore, frequent additions of smaller amounts of potassium can work better to add potassium to the soil than one large amount Cwiny wii The lower the CEC, the faster the soil pH will decrease with time Sandy soils require more frequent liming than clay soils The higher the CEC, the larger the quantity of lime that must be added to increase the soil pH sandy soils need less lime than clay soils to increase soil pH The higher the CEC, the larger the quantities of soil additives the soil will need to change soil pH, either when increasing pH with lime or high bicarbonate irrigation water, or when decreasing pH with nitrogen fertilizers or elemental sulfur When the soil CEC is between 0 and about 3, the percent saturation is less important The amount of the nutrient is similar to the amount of water applied in irrigation, while the percent saturation is similar to the water pressure of the irrigation system. The amount of water is the primary factor, but the water pressure is also important. Acceptable saturation ranges for Soil CEC = 0-5: 4-6% K, 50-70% Ca, 10-20% Mg Lok mukaro angwec A Cation Exchange Capacity (CEC) < 4 cmol/kg in the soil organic matter (SOM) indicates a very low CEC low organic matter very low capability to hold important nutrients, such as calcium, magnesium, potassium and sodium Many sandy soils have CEC less than 4 cmol/kg Tee lok This gives the cation exchange capacity in the topsoil. The total nutrient fixing capacity of a soil is well expressed by its Cation Exchange Capacity. Soils with low CEC have little resilience and can not build up stores of nutrients. Many sandy soils have CEC less than 4 cmol/kg. The clay content, the clay type and the organic matter content all determine the total nutrient storage capacity. Nutrient retention capacity is of particular importance for the effectiveness of fertilizer applications and is therefore of special relevance for intermediate and high input level cropping conditions. Nutrient retention capacity refers to the capacity of the soil to retain added nutrients against losses caused by leaching. Plant nutrients are held in the soil on the exchange sites provided by the clay fraction, organic matter and the clay-humus complex. Losses vary with the intensity of leaching which is determined by the rate of drainage of soil moisture through the soil profile. Values in excess of 10 cmol/kg are considered satisfactory for most crops. This is reflected by the following code system used in the Harmonized World Soil Database Code 1 = Cation Exchange Capacity < 4 cmol/kg Code 2 = Cation Exchange Capacity of 4-10 cmol/kg Code 3 = Cation Exchange Capacity > 10 -- 20 cmol/kg Code 4 = Cation Exchange Capacity > 20 -- 40 cmol/kg Code 5 = Cation Exchange Capacity > 40 cmol/kg [12] [26]
Kwoyo - Iwi miacel - Peke	5% Peke	Challenges Drains poorly, has few air spaces, warms slowly in spring, heavy to cultivate Adverse physical properties Poor workability Require too much management for success in low-technology societies Tree crops cannot root in the subsoil Tree roots are damaged as the soil shrinks and swells Low structural stability Very susceptible to water erosion Cwiny wii Do not use slopes above 5 percent for arable cropping Use groundcover crops on slopes less than 5 percent When terracing, use surface drainage to prevent slumping Add organic matter to improve the tilth, workability, and internal drainage If drainage is improved, plants can grow well in clayey soils since clay holds more nutrients than many other soils Use caution when plowing and tilling Do not plow excessively wet clays, or they will become cloddy Till clay soils only when they are dry and crumble readily In temperate climates, Plow clay soils in the fall, then leave them rough and exposed to the mellowing action of freezing and thawing Frequent, shallow tillage can help to prevent crusting of the topsoil Maize crops require deep cultivation and ridges in the soil to improve drainage (maize cannot tolerate waterlogging and can die if it stands in water for as long as 2 days) Adding lime to clay soils can improve the soil's texture to result in looser and more porous soil Use under-drainage to reduce the soil's heaviness by removing the extra water during dry periods Under-drainage promotes aeration and warmth in clay soils Loosen clay soils by mixing them with humus or sand Barnyard manure or a green manure crop will lighten heavy clay soil To lighten clay soil, spread sand on top of the clay soil and plow it under [28] [29] [30] [31] Lok mukaro angwec The feel of clay soils is slick or lumpy and sticky when very wet, and hard and smooth when dry [6] [32] Tee lok This measure the percentage of clay in the topsoil. Clay is naturally occurring firm earthy material, composed primarily of fine-grained (diameter less than 0.002mm) that is plastic when wet and hardens when heated and that consists primarily of hydrated silicates or aluminum. Clay is mostly composed of clay minerals which are phyllo-silicate minerals and minerals which impart plasticity and harden when fired or dried. The definition of "fine grained" used above is particles smaller than 2 µm, colloid chemists (and Eastern European soil scientists) may use 1 µm. The clay content of the soil is listed as a percentage (0 to 100) of the total weight of the soil. Soils is with a high percentage of clay, such as Vertisols, are used for very extensive (grazing, collection of fuelwood, and charcoal burning) through smallholder post-rainy season crop production (millet, sorghum, cotton and chickpeas) to small-scale (rice) and large-scale irrigated agriculture (cotton, wheat, barley, sorghum, chickpeas, flax, noug [Guzotia abessynica] and sugar cane). Cotton is known to perform well on Vertisols, allegedly because cotton has a vertical root system that is not damaged severely by cracking of the soil. Tree crops are generally less successful because tree roots find it difficult to establish themselves in the subsoil and are damaged as the soil shrinks and swells. Management practices for crop production should be directed primarily at water control in combination with conservation or improvement of soil fertility [12]
Gravel - Iwi miacel - Dwone	4% Peke	Challenges Gravel can affect the rooting conditions and workability of soils May be low in organic matter [12] [33] [34] [35] Cwiny wii Add organic matter fertilize regularly Use pea gravel as a mulch to protect the roots of herbs and other drought-tolerant plants Pea gravel reflects heat and provides good drainage [12] [33] [34] [35] Tee lok This measures the volume percentage of gravel in the topsoil. Gravel stands for the percentage of materials in a soil that are larger than 2 mm. Gravel can affect the rooting conditions and workability of soils. The percentage of gravel in the soil is listed on a scale of 0 to 100 percent volume [30] [36]
Kwoyo - Iwi miacel - Peke	90% Peke	Challenges Sand dries out rapidly and may lack nutrients because nutrients can be easily washed through the soil with rainfall or irrigation low in organic matter content and native fertility low in ability to retain moisture and nutrients low in cation exchange and buffer capacities rapidly permeable (i.e., rapid movement of water and air) In the perhumid tropics, sandy soils are chemically exhausted and highly sensitive to erosion Cwiny wii Use frequent irrigation, artificial drainage, and proper fertilization (more frequent but lower quantities of nutrients per application) Total amounts of fertilizer per crop are usually quite high Manage erosion and chemical exhaustion in perhumid tropical soils Add organic matter to improve texture, increase water-holding capacity, and improve fertility [37] [31] [6] [3] [4] [5] Lok mukaro angwec Sand is free-draining, has a gritty feel, warms quickly, and is easy to cultivate Feel is gritty, not sticky [6] Tee lok Sand comprises particles, or granules, ranging in diameter from 0.0625 mm (or 1/16 mm) to 2 millimeters. An individual particle in this range size is termed a sand grain. Sand feels gritty when rubbed between the fingers (silt, by comparison, feels like flour). This measures the percentage (0 to 100) by weight of sand in the topsoil. Sand is commonly divided into five sub-categories based on size very fine sand (1/16 - 1/8 mm diameter) fine sand (1/8 mm - 1/4 mm) medium sand (1/4 mm - 1/2 mm) coarse sand (1/2 mm - 1 mm) and very coarse sand (1 mm - 2 mm) [12] [26]
Kwoyo mawoko - Iwi miacel - Peke	5% Peke	Challenges erosion [38] Cwiny wii Tillage and erosion control measures such as terracing, contour plowing, mulching and use of cover crops help to conserve the soil from compaction and serious structure deterioration Fertilizers and/or lime are preconditions for continuous cultivation [39] [40] [38] Lok mukaro angwec Silty soils have a weak structure (break up easily) easy to work The feel of silt is smooth and soapy Feel is smooth or flour-like when rubbed between the thumb and fingers makes a weak ribbon (less than 2.5 cm long) [39] Tee lok Silt is produced by the mechanical weathering of rock, as opposed to the chemical weathering that results in clays. This mechanical weathering can be due to grinding by glaciers, eolian abrasion (sandblasting by the wind) as well as water erosion of rocks on the beds of rivers and streams. Silt is sometimes known as 'rock flour' or 'stone dust', especially when produced by glacial action. Mineralogically, silt is composed mainly of quartz and feldspar. This measures the percentage (0 to 100) by weight of silt in the topsoil. Soils with a lot of silt make excellent farm land, but erode easily. Erosion removes topsoil, reduces levels of soil organic matter, and contributes to the breakdown of soil structure. This creates a less favorable environment for plant growth. Soil erosion can be avoided by: maintaining a protective cover on the soil, creating a barrier to the erosive agent, modifying the landscape to control runoff amounts and rates. Specific practices to avoid water erosion: growing forage crops in rotation or as permanent cover; growing winter cover crops; interseeding; protecting the surface with crop residue; shortening the length and steepness of slopes; increasing water infiltration rates; improving aggregate stability. Specific practices to avoid wind erosion: maintaining a cover of plants or residue, planting shelterbelts, stripcropping, increase surface roughness, cultivating on the contour, maintaining soil aggregates at a size less likely to be carried by wind [12]
Electrical conductivity	0.1 dS/m	Challenges inhibited uptake of water irrigation and waterlogging can cause excess soil salinity [26] [41] Cwiny wii Control soil salinity by permitting 10-20% of the irrigation water to leach the soil, and then be drained and discharged [26] [41] Lok mukaro angwec ECe, or electrical conductivity, is a measure of soil salinity [12] Tee lok This gives the electrical conductivity of the topsoil. Coastal and desert soils in particular can be enriched with water-soluble salts or salts more soluble than gypsum. The salt content of a soil can be roughly estimated from the Electrical Conductivity of the soil (EC, expressed in dS/m) measured in a saturated soil paste or a more diluted suspension of soil in water. Accumulation of salts may cause salinity. Excess of free salts referred to as soil salinity is measured as Electric Conductivity (EC in dS/m) or as saturation of the exchange complex with sodium ions. Salinity affects crops through inhibiting the uptake of water. Moderate salinity affects growth and reduces yields; high salinity levels may kill the crop. Crops vary considerably in their resistance and response to salt in soils. Some crops will suffer at values as little as 2 dS/m (spinach) others can stand up to 16 dS/m (date palm). Agronomic relevant limits are Very low ECe < 2 dS/m Low ECe = 2 – 4 dS/m Moderate ECe = 4 – 8 dS/m High ECe = 8 – 16 dS/m Very High ECe > 16 dS/m Some plants are more tolerant to a high salt concentration than others. Highly tolerant plants include date palm, barley, sugarbeet, cotton, asparagus, spinach [12] [26]
Gypsum content CaSO4	0% Dwone	Cwiny wii Using water culture to increase the concentration of SO4 mixture (K2SO4 + MgSO4) increases the uptake of NO3, K, Mg and sulphur but decreases the uptake of Ca and P Use soil terracing to prevent erosion Use supplementary irrigation to increase productivity where water resources are available Harrow the land after harvesting and before the rainy season to improve the infiltration of water and conserve soil moisture Increase organic matter by replacing fallow by small-grain leguminous crops in the wheat-fallow rotations Add manure Use subsoiling to break the cemented gypsic subsoil to improve root penetration and reduces susceptibility to drought, especially in the case of fruit and forest trees Do not mix the topsoil and subsoil Apply nitrogen and phosphorus to cereals N is generally applied where rainfall exceeds 260 mm annually Phosphorus fertilizers increase the yield of cereals, especially under low rainfall For irrigated gypsiferous soils: The use of (NH4)2CO3 solution was found to cause the optimum elimination of gypsum in gypsiferous soils with both low and high levels of gypsum; In general, there is need for ample nitrogen fertilizers for crops grown on gypsiferous soils, especially under irrigated agriculture. There are no significant differences between the requirements of crops for nitrogen on gypsiferous and non-gypsiferous soils; Molybdenum applications might benefit many plants, especially legumes [42] [12] Lok mukaro angwec Up to 2 percent gypsum in the soil favors plant growth Most agricultural crops thrive in soils with no to very low gypsum content Tee lok Calcium sulphate (gypsum) content in topsoil. Gypsum is a chemical compound (a salt) which occurs occasionally in soils particularly in the driest areas of the globe where it can occur in a flower-like form typically opaque with embedded sand grains called desert rose. In soils it may occur in fibers, crystals or soft. Research indicates that up to 2 percent gypsum in the soil favours plant growth, between 2 and 25 percent has little or no adverse effect if in powdery form, but more than 25 percent can cause substantial reduction in yields. It is suggested that reductions are due in part to imbalanced ion ratios, particularly K:Ca and Mg:Ca. Gypsum strongly limits available soil moisture. Tolerance of crops to gypsum varies widely (FAO, 1990; Sys, 1993). Relevant limits are considered the following None to very low CaSO4 < 2% Low CaSO4 = 2 – 5% Moderate CaSO4 = 5 – 25% High CaSO4 = 25 – 40% Very High CaSO4 > 40%
Soil reaction - pH	6.2 -log H+	Challenges Peat moss with a pH of 3.0 can be recommended as a soil additive, but peat moss is nutrient-poor, expensive, and it's a nonrenewable resource [7] [8] [9] [10] [11] Cwiny wii The ideal pH range for most crops is 6.5 to 7.0, therefore some crops may require slight pH adjustment for optimal growth To lower soil pH, add a source of acid, such as shredded leaves, sulfur, sawdust or peat moss Add alkaline material such as limestone to decrease soil acidity Apply 2.3 kg of lime per 30 square meters to raise the pH by one point Applying wood ashes will raise soil pH--Wood ashes contain up to 70 percent calcium carbonate, as well as potassium, phosphorus, and many trace elements. Because it is powdery, wood ash is a fast-acting liming material Limit the application of wood ashes to 1 kg per 30 square meters and only apply it every other year in the same area Breed aluminum-tolerant crops [7] [8] [9] [10] Lok mukaro angwec Many plant species are adapted to acidic or alkaline soils The availability of many plant nutrients (for example, P), non-essential elements (for example, Al, Cd, Pb), and essential trace elements (for example, Mn, Fe, Cu, Zn) is strongly dependent on soil pH (Miller and Gardiner 2001) Generally, metal cations (for example, Mn, Fe, Ni, Cu, Zn, Cd, Pb) become more available as pH decreases, while oxyanions (for example, SO4) become more available at alkaline pH levels Soil pH is strongly dependent on the chemical weathering environment. Soils in hot, humid areas and even mesic, wetter areas tend to be more acidic than those of much drier areas. Vegetation communities in those areas tend to be adapted to the soil conditions in which they developed [12] [13] [14] Tee lok This gives the soil reaction of subsoil. pH, measured in a soil-water solution, is a measure for the acidity and alkalinity of the soil. Five major pH classes are considered here that have specific agronomic significance pH < 4.5 = Extremely acid soils include Acid Sulfate Soils (Mangrove soils, cat clays). Do not drain because by oxidation sulfuric acid will be produced and pH will drop lower still pH 4.5 – 5.5 = Very acid soils suffering often from Al toxicity. Some crops are tolerant for these conditions (Tea, Pineapple) pH 5.5 –7.2 = Acid to neutral soils - these are the best pH conditions for nutrient availability and suitable for most crops pH 7.2 – 8.5 = These pH values are indicative of carbonate rich soils. Depending on the form and concentration of calcium carbonate they may result in well structured soils which may however have depth limitations when the calcium carbonate hardens in an impermeable layer and chemically forms less available carbonates affecting nutrient availability (Phosphorus, Iron) pH > 8.5 = Indicates alkaline soils often highly sodic (Na reaching toxic levels), badly structured (columnar structure) and easily dispersed surface clays [12] [43]
Exchangeable sodium	3Ikum mia	Challenges Sodicity causes sodium toxicity and affects soil structure leading to massive or coarse columnar structure with low permeability to water and roots low infiltration rate poorly aerated difficult to cultivate sodic soils can adversely affect plant growth high pH lowers availability of some essential plant nutrients, such as calcium, magnesium, P, Fe, Mn, and Zn risk of toxic levels of sodium, molybdenum, and boron Tee lok This gives the exchangeable sodium percentage in the topsoil. The exchangeable sodium percentage has been used to indicate levels of sodium in soils it is calculated as the ratio of Na in the CEC (or sum of cations) ESP= Na*100/CECsoil. Alternatively SAR (Sodium Adsorption Ratio) has been used (SAR= Na/Square root ((Ca+Mg)/2)) to indicate levels of sodium hazards for crops. Excess of free salts referred to as saturation of the exchange complex with sodium ions, which is referred to as sodicity or sodium alkalinity and is measured as Exchangeable Sodium Percentage (ESP). Sodicity causes sodium toxicity and affects soil structure leading to massive or coarse columnar structure with low permeability. Sodic soils have a low infiltration rate, they are poorly aerated and difficult to cultivate. Thus, sodic soils adversely affect the plants' growth. Agronomic relevant limits are Low ESP < 6% Moderate ESP = 6 – 15% High ESP = 15 – 25% Very High ESP > 25% [12] [26]
Reference bulk density	1.49 kg/dm3	Cwiny wii To reduce high bulk density and compaction, minimize soil disturbance and production activities when soils are wet, use designated field roads or rows for equipment traffic, reduce the number of trips across the area, and maintain or increase soil organic matter Use grazing systems that minimize livestock traffic and loafing, provide protected heavy use areas, and adhere to recommended minimum grazing heights Use conservation crop rotation, cover crop, deep tillage, prescribed grazing residue, and tillage management Avoid plowing, timber harvesting, or compaction of the soil [15] [16] [17] [18] Lok mukaro angwec Soil bulk density may indicate soil compaction but is dependent on many soil factors including particle size distribution, soil organic matter content, and coarse fragment content Bulk density increases as the sand and rock content increases Bulk density decreases as the organic matter content increases A mineral soil with “ideal” physical properties has 50 percent solids and 50 percent pore space occupying a given volume of space At optimal water content, half the pore space is filled with water (such a soil will have a bulk density of 1.33 g/cm3) Roots usually grow well in soils with bulk densities of up to 1.4 g/cm3 Root penetration begins to decline significantly at bulk densities above 1.7 g/cm3 Above 1.5 g/cm3, there is an increasing probability of adverse effects from soil compaction or high rock content Coarse fragments—Soils with a coarse fragment content of > 50 percent to have a greater probability of adverse effects from infiltration rates that are too high, water storage capacity that is too low, more difficult root penetration, and greater difficulty in seed germination and seedling growth A high contents of coarse fragments can limit soil productivity [15] [16] [17] [18] Tee lok Reference bulk density is a property of particulate materials. It is the mass of many particles of the material divided by the volume they occupy. The volume includes the space between particles as well as the space inside the pores of individual particles. This is a measurement in kg/dm3 of the topsoil reference bulk density. Bulk density reflects the soil’s ability to function for structural support, water and solute movement, and soil aeration. High bulk density is an indicator of low soil porosity and soil compaction. It may cause restrictions to root growth, and poor movement of air and water through the soil. Compaction can result in shallow plant rooting and poor plant growth, influencing crop yield and reducing vegetative cover available to protect soil from erosion. By reducing water infiltration into the soil, compaction can lead to increased runoff and erosion from sloping land or waterlogged soils in flatter areas. In general, some soil compaction to restrict water movement through the soil profile is beneficial under arid conditions, but under humid conditions compaction decreases yields. On cropland, long-term solutions to bulk density and soil compaction problems revolve around decreasing soil disturbance and increasing soil organic matter. A system that uses cover crops, crop residues, perennial sod, and/or reduced tillage results in increased soil organic matter, less disturbance and reduced bulk density. Additionally, the use of multi-crop systems involving plants with different rooting depths can help break up compacted soil layers [12] [40] [44]
Nitrogen (N)		Challenges Too much nitrogen in soil can harm plants Adding nitrogen is easy, but removing excess nitrogen in soil is more difficult Too much nitrogen in soil reduces the ability of plants to fruit and flower [45] [16] [17] [46] Cwiny wii Organic methods of adding nitrogen to the soil include: adding composted manure to the soil, planting a green manure crop such as borage, planting nitrogen-fixing plants such as peas or beans, and adding coffee grounds to the soil, but be careful when adding coffee grounds as this practice also creates acidity and lowers pH of the soil. Organic methods require more time than inorganic methods, but they can result in a more even distribution of the added nitrogen. Non-organic methods of adding nitrogen to the soil include the use of chemical fertilizers. A high-nitrogen fertilizer will have a high first number in the NPK ratio, for example 10-10-10. Nitrogen-containing chemical fertilizers act quickly to add nitrogen to the soil, but the nitrogen also leaves the soil quickly. If there is too much nitrogen in the soil, plant squash, cabbage, broccoli or maize which will use up large amounts of nitrogen while they grow. Note: while these plants absorb the excess nitrogen in the soil, they may look unhealthy and may produce low yields [45] [16] [17] [46] Lok mukaro angwec Total nitrogen in mineral soils (percent): > 0.5 = High – excellent reserve of nitrogen 0.1 to 0.5 = Moderate – adequate levels < 0.1 = Low – could indicate loss of organic N Nitrogen is essential for plant growth. Plants will not grow or produce without sufficient nitrogen When legumes and other nitrogen fixing plants and the bacteria called Rhizobium work together to store the nitrogen, they are creating a green warehouse in the soil. While they are growing, they release very little nitrogen into the soil, but when they are done growing and they die, their decomposition release the stored nitrogen and increases the total nitrogen in soil. Their death makes nitrogen for plants available later on. When the plant stores the nitrogen in the roots, it produces a lump on the root called a nitrogen nodule. This is harmless to the plant but very beneficial to the farm [45] [16] [17] [46]
Phosphorus (P)		Challenges Generally, it is difficult for plants to absorb phosphorus (P) so it is usually not a concern that plants will absorb too much P.: Plants grown in soils with Olsen-extractable P levels above 10 mg/kg usually will not respond to added P Do not overuse P: soils with very high levels of extractable P may have a deleterious effect on water quality if such soils are subjected to erosion and the soil particles end up in receiving waters [47] [16] [17] [46] Cwiny wii For inorganic farms, use phosphate-containing fertilizers, such as N-P-K with a high P value (the middle value) Use bone meal or rock phosphate to correct a phosphorus deficiency Add compost to the soil to help plants take up the phosphorus that is already in the soil [47] [16] [17] [46] Lok mukaro angwec Phosphorus is one of the essential nutrients required for plant growth and development. It helps plants convert other nutrients in order for the plant to grow Phosphorus is the "P" component of N-P-K fertilizers. The availability of soil P to plants depends on the forms of P in soils and soil pH In acid soils, most plant-available P is associated with Fe and Al oxides and is best extracted with the Bray 1 extractant (0.03 M NH4F + 0.025 M HCl). The Bray 1 extractant is applicable to soils with a pH below 6.8, but not to near-neutral or alkaline soils because the acid in the extract begins to dissolve Ca phosphates. These Ca phosphates usually release only small amounts of P for plant uptake unless they begin to dissolve under more acid conditions. Generally, deficiency symptoms are not exhibited by plants growing in soils with Bray 1 levels above 15 mg/kg (Soil and Plant Analysis Council 1999) In alkaline soils, most soil P is associated with Ca, either sorbed to carbonate minerals or existing as various Ca phosphate minerals, the most common of which is apatite. The Olsen (pH 8.5, 0.5 M NaHCO3) extractant was developed to measure plant-available P in alkaline soils, but it also works in many acid soils. The bicarbonate ions release P sorbed to many mineral surfaces that is plant available without dissolving the otherwise plant-unavailable P in Ca phosphates [47] [16] [17] [46]
Potassium (K)		Cwiny wii Potassium fertilizer is sometimes called potash fertilizer high potassium fertilizer contains only potassium (K) or has a high K value Compost made primarily from food byproducts, especially banana peels, is an excellent source of potassium for the soil when used as a soil additive Use wood ash as a light application to avoid burning plants Greensand can be used as a soil additive to add potassium to the soil Because potassium deficiency in plants is difficult to diagnose visually, test the soil before adding more potassium [48] [16] [17] [46] Lok mukaro angwec With all plants, potassium assists all functions within the plant. When a plant has enough potassium, it will simply be a better overall plant Potassium is important to plant growth and development. Potassium helps: plants grow faster, use water better and be more drought resistant, fight off disease, resist pests, grow stronger, and produce more crops K (mg/kg): > 500 = High – excellent reserve 100 to 500 = Moderate – adequate levels for most plants < 100 = Low – possible deficiencies [48] [16] [17] [46]

Kare	Depth	Wang otul	Texture Reaction - pH	Organic Carbon Conductivity - Electrical	Subsoil Cation Exchange	Clay Cation Exchange	Calcium Carbonate - Lime	Gypsum Sodium - Exchangeable
	Topsoil	4	5.1	1.39	11	23	0	0
	Subsoil	4	5.1	0.6	6	28	0	0

Soil Triangle - Dystric Regosols

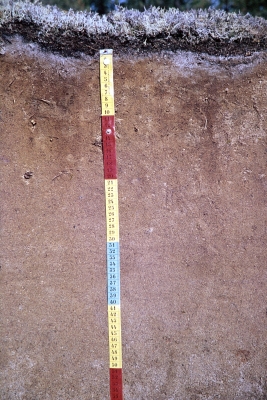

Images - Dystric Regosols

Tee lok - Dystric Regosols

A Regosol in the FAO World Reference Base for Soil Resources is very weakly developed mineral soil in unconsolidated materials. The great variation among Regosols makes it virtually impossible to give a generalised account of Regosol characteristics. The central concept of a Regosol is a deep, well-drained, medium-textured, non-differentiated mineral soil that has minimal expression of diagnostic horizons (other than an ochric surface horizon), properties or materials. Dystric indicates having a base saturation (by 1 M NH4OAc) of less than 50 percent in the major part between 20 and 100 cm from the soil surface or between 20 cm and continuous rock or a cemented or indurated layer. Regosols occur in all climate zones without permafrost and at all elevations. Regosols are particularly common in arid areas, in the dry tropics and in mountain regions. Internationally, Regosols correlate with soil taxa that are marked by incipient soil formation such as Entisols in the USDA soil taxonomy or skeletal soils in the Australian soil classification. Regosols cover an estimated 260 million hectares worldwide, mainly in arid areas in the mid-western USA, Northern Africa, the Near East and Australia. Some 50 million hectares of Regosols occur in the dry tropics and another 36 million hectares in mountain areas. Land use and management of Regosols vary widely. Some Regosols are used for capital-intensive irrigated farming but the most common land use is low volume grazing. Regosols on colluvial deposits in the loess belt of northern Europe and North America are mostly cultivated; they are planted to small grains, sugar beet and fruit trees. Regosols in mountainous regions are delicate and best left under forest

Tyen Lok - Ngom mamiyo

Loams are the most useful "all around" soils; they combine the lightness and earliness of the sands, with the strength and retentiveness of the clays. Loams contain from 40 to 60 per cent, of sand, and 15 to 25 per cent, of clay. They "work up" easily, do not crust or crack, are well supplied with plant food, and, what is chiefly important, water moves through them freely and still they are not leachy. Practically all farm crops grow satisfactorily on a loam. It is especially suitable for potatoes, corn, market-gardening crops, and small fruits; but grasses, cereals, clover, alfalfa, and cotton, find it congenial. It requires no special treatment, except such attention to good tillage, drainage, and the addition of humus as is a necessary part of the best farm practice everywhere. It doesn't matter if peppers are grown in temperate, tropical or subtropical climates as long as they have a relatively dry season, so a good loam that drains well helps to offset a wetter climate. Most fruit trees live longer and produce better when they grow in balanced loam. Citrus trees like good drainage, but they need to be kept moist. Loam is a good choice for citrus

[22]

Jami Apura - Dystric Regosols

capital-intensive irrigated farming
small grains, sugar beet
fruit trees (on colluvial deposits in the loess belt of northern Europe and North America)

[58]

Metrics/Discussion

Wii Lok	Pire tek	Pete tere
Wang otul	4	Lok mukaro angwec Soil without mottles indicates good drainage Water moves through the soil readily, but not rapidly Internal free-water commonly is deep or very deep Water is available to plants in humid regions during much of the growing season Wetness does not inhibit growth of roots for significant periods during most growing seasons The soil is deep to or lacks redoximorphic features A well-drained soil has "good" drainage. These soils are commonly intermediate in texture, although soils of other textural classes may also be well drained. Well-drained soils commonly retain optimum amounts of moisture for plant growth after rains or addition of irrigation water Tee lok Drainage Class soils refers to the frequency and duration of periods when the soil is saturated with water. Alterations of the water regime by human activities, either through drainage or irrigation, are not a consideration unless they have significantly changed the morphology of the soil. Seven classes of natural soil drainage are recognized 1. very poorly drained 2. poorly drained 3. somewhat poorly drained 4. moderately well drained 5. well drained 6. somewhat excessively drained 7. excessively drained [23] [24]
Soil reference depth	100 mm	Challenges Soil depth limitations may affect root penetration and may constrain yield formation in roots and tubers [12] [25] Tee lok An approximation of actual soil depth can be derived through accounting for relevant depth limiting soil phases, obstacles to roots and occurrence of impermeable layers. Soil depth limitations which affect root penetration and may constrain yield formation (roots and tubers). This is a measurement in cm of reference soil depth. Reference soil depth of all soil units are set at 100 cm, except for Rendzinas and Rankers of FAO-74 and Leptosols of FAO-90, where the reference soil depth is set at 30 cm, and for Lithosols of FAO-74 and Lithic Leptosols of FAO-90, where it is set at 10 cm [12] [26]
Base saturation	24Ikum mia	Challenges Very acid soils often suffer from Al toxicity Below a pH of 6.0 (acid), nutrients such as nitrogen, phosphorus, and potassium become less available Cwiny wii Add alkaline material such as limestone to decrease soil acidity Apply 2.3 kg of lime per 30 square meters to raise the pH by one point Applying wood ashes will raise soil pH--Wood ashes contain up to 70 percent calcium carbonate, as well as potassium, phosphorus, and many trace elements. Because it is powdery, wood ash is a fast-acting liming material Limit the application of wood ashes to 1 kg per 30 square meters and only apply it every other year in the same area Breed aluminum-tolerant crops Lok mukaro angwec The base saturation value often shows a near linear correlation with pH Base saturation = 20-50% indicates acid conditions, with a similar interpretation as acid pH [12] Tee lok The base saturation of the topsoil measures the sum of exchangeable cations (nutrients) Na, Ca, Mg and K as a percentage of the overall exchange capacity of the soil (including the same cations plus H and Al). The value often shows a near linear correlation with pH. Critical values as follows Base Saturation < 20 % = desaturated soils, similar interpretation as extremely acid pH Base Saturation of 20 – 50 % = acid conditions Base Saturation of 50 – 80 % = Soil conditions of neutral to slightly alkaline which are ideal conditions for most crops Base Saturation > 80% indicates saturated conditions often calcareous, sometimes sodic or saline [12] [25]
Calcium carbonate CaCO3 - Lime	0% Peke	Lok mukaro angwec Low levels of calcium carbonate enhance soil structure and are generally beneficial for crop production [12] [27] Tee lok This gives the calcium carbonate (lime) content in the topsoil. Calcium carbonate is a chemical compound (a salt), with the chemical formula CaCO3. It is a common substance found as rock in all parts of the world, and is the main component of shells of marine organisms, snails, and eggshells. Calcium carbonate is the active ingredient in agricultural lime, and is usually the principal cause of hard water. It is quite common in soils particularly in drier areas and it may occur in different forms as mycelium-like threads, as soft powdery lime, as harder concretions or cemented in petrocalcic horizons. Low levels of calcium carbonate enhance soil structure and are generally beneficial for crop production but at higher concentrations they may induce iron deficiency and when cemented limit the water storage capacity of soils. In agronomic sense relevant limits are None to very low < 2 Low = 2 – 5 Moderate = 5 – 15 High = 15 – 40 Very High > 40 [12]
Organic carbon	1.39% Peke	Cwiny wii Increase the organic matter content by returning organic materials to soils and adding rotations with high-residue crops and deep- or dense-rooting crops Ways to increase organic matter contents of soils: compost, cover crops/green manure crops, crop rotation, perennial forage crops, zero or reduced tillage, agroforestry [19] [20] [12] [16] [17] [18] Lok mukaro angwec Organic Carbon is, together with pH, the best simple indicator of the health status of the soil High amounts of organic carbon are associated with fertile soils with a good structure High soil organic carbon (SOC) status in the soil can be an indicator of high crop yields Total organic carbon in mineral soils (percent): 1 to 5 = adequate levels [19] [20] [12] [16] [17] [18] Tee lok This gives the percentage of organic carbon in the topsoil. Organic Carbon is, together with pH, the best simple indicator of the health status of the soil. Moderate to high amounts of organic carbon are associated with fertile soils with a good structure. Soils that are very poor in organic carbon (<0.2%), invariable need organic or inorganic fertilizer application to be productive. Soils with an organic matter content of less than 0.6% are considered poor in organic matter. The following classes are suggested to prepare maps of organic carbon status for mineral soils Code 1 < 0.2% organic carbon Code 2 = 0.2 – 0.6% organic carbon Code 3 = 0.6 – 1.2% organic carbon Code 4 = 1.2 – 2.0% organic carbon Code 5 > 2.0% organic carbon [12] [26]
Cation exchange capacity - Kwoyo	23 cmol/kg	Challenges Low CEC soils are more likely to develop potassium and magnesium (and other cation) deficiencies, while high CEC soils are less susceptible to leaching losses of these cations.. For sandy soils, the addition of a large amount of potassium at one time can lead to high losses due to leaching. This is because the potassium adds a large amount of cations at one time and soil cannot hold on to the excess potassium. Therefore, frequent additions of smaller amounts of potassium can work better to add potassium to the soil than one large amount Cwiny wii The lower the CEC, the faster the soil pH will decrease with time Sandy soils require more frequent liming than clay soils The higher the CEC, the larger the quantity of lime that must be added to increase the soil pH sandy soils need less lime than clay soils to increase soil pH The higher the CEC, the larger the quantities of soil additives the soil will need to change soil pH, either when increasing pH with lime or high bicarbonate irrigation water, or when decreasing pH with nitrogen fertilizers or elemental sulfur Lok mukaro angwec CEC in the range of 20 to 50 cmol/kg clay indicates a moderate CEC with soils containing mixed clay with kaolinite present The presence of some kaolinite indicates that the soil exists in a somewhat tropical, leaching climate CEC is highly dependent upon soil texture and organic matter content Generally, the higher the contents of clay and organic matter in the soil, the higher the CEC CEC of most soils increases with an increase in soil pH Very acid soils will have high concentrations of H+ and Al3+ In neutral to moderately alkaline soils, Ca2+ and Mg2+ dominate Poorly drained arid soils may adsorb Na in very high quantities Only a small percentage of the essential plant nutrient cations (K +, Ca 2+, Mg 2+, and NH4+) will be ‘loose’ in the soil water and thus available for plant uptake, therefore the CEC is important because it provides a reservoir of nutrients Cations in the soil water that are leached below the rootzone by water are replaced by cations formerly bound to the CEC ‘Buffer capacity’ exists for cation nutrients as well as soil pH Lighter concentrations yield white, yellow or light orange colors Kaolinite has a low shrink-swell capacity and a low cation exchange capacity Tee lok This gives the cation exchange capacity of the clay fraction in topsoil. The type of clay mineral dominantly present in the soil is often characterizes a specific set of pedogenetic factors in which the soil has developed. Tropical, leaching climates produce the clay mineral kaolinite, while confined conditions rich in Ca and Mg in climates with a pronounced dry season encourage the formation of the clay mineral smectite (montmorillonite). Nutrient retention capacity is of particular importance for the effectiveness of fertilizer applications and is therefore of special relevance for intermediate and high input level cropping conditions. Nutrient retention capacity refers to the capacity of the soil to retain added nutrients against losses caused by leaching. Plant nutrients are held in the soil on the exchange sites provided by the clay fraction, organic matter and the clay-humus complex. Losses vary with the intensity of leaching which is determined by the rate of drainage of soil moisture through the soil profile. Clay minerals have typical exchange capacities, with kaolinites generally having the lowest at less than 16 cmol/kg, while smectites have one of the highest with a CEC per 100g clay being 80 cmol/kg, or more. The classes generally used in the Harmonized World Soil Database are Class 1 = < 20 cmol/kg clay (kaolinite dominant) Class 2 = 20-50 cmol/kg clay (mixed with kaolinite present) Class 3 = >50-100 cmol/kg clay (mixed, illite) Class 4 = >100 cmol/kg clay (montmorillonite) NOTE: Soils developed on volcanic materials rich in amorphous sesquioxides may have very higher values (over 150 cmol/kg) [12]
Cation exchange capacity - Ngom	11 cmol/kg	Challenges Having a larger CEC values is an indicator that the soil has a greater capacity to hold cations A high CEC soil has a greater capacity to hold cations, so higher rates of fertilizer or lime are often required to change a high CEC soil high CEC is an indicator that there is a high reserve of nutrients in the soil Soils with low CEC can take a large amount of fertilizer or lime to correct A high CEC soil requires a higher soil cation level, or soil test, to provide adequate crop nutrition Cwiny wii The higher the CEC, the larger the quantity of lime that must be added to increase the soil pH Sandy soils need less lime than clay soils to increase the pH to desired levels The higher the CEC, the larger the quantities of soil additives the soil will need to change soil pH, either when increasing pH with lime or high bicarbonate irrigation water, or when decreasing pH with nitrogen fertilizers or elemental sulfur.. Acceptable saturation ranges for Soil CEC = 6-10: 3-5% K, 50-70% Ca, 8-20% Mg Tee lok This gives the cation exchange capacity in the topsoil. The total nutrient fixing capacity of a soil is well expressed by its Cation Exchange Capacity. Soils with low CEC have little resilience and can not build up stores of nutrients. Many sandy soils have CEC less than 4 cmol/kg. The clay content, the clay type and the organic matter content all determine the total nutrient storage capacity. Nutrient retention capacity is of particular importance for the effectiveness of fertilizer applications and is therefore of special relevance for intermediate and high input level cropping conditions. Nutrient retention capacity refers to the capacity of the soil to retain added nutrients against losses caused by leaching. Plant nutrients are held in the soil on the exchange sites provided by the clay fraction, organic matter and the clay-humus complex. Losses vary with the intensity of leaching which is determined by the rate of drainage of soil moisture through the soil profile. Values in excess of 10 cmol/kg are considered satisfactory for most crops. This is reflected by the following code system used in the Harmonized World Soil Database Code 1 = Cation Exchange Capacity < 4 cmol/kg Code 2 = Cation Exchange Capacity of 4-10 cmol/kg Code 3 = Cation Exchange Capacity > 10 -- 20 cmol/kg Code 4 = Cation Exchange Capacity > 20 -- 40 cmol/kg Code 5 = Cation Exchange Capacity > 40 cmol/kg [12] [26]
Kwoyo - Iwi miacel - Peke	21% Peke	Challenges Drains poorly, has few air spaces, warms slowly in spring, heavy to cultivate Adverse physical properties Poor workability Require too much management for success in low-technology societies Tree crops cannot root in the subsoil Tree roots are damaged as the soil shrinks and swells Low structural stability Very susceptible to water erosion Cwiny wii Do not use slopes above 5 percent for arable cropping Use groundcover crops on slopes less than 5 percent When terracing, use surface drainage to prevent slumping Add organic matter to improve the tilth, workability, and internal drainage If drainage is improved, plants can grow well in clayey soils since clay holds more nutrients than many other soils Use caution when plowing and tilling Do not plow excessively wet clays, or they will become cloddy Till clay soils only when they are dry and crumble readily In temperate climates, Plow clay soils in the fall, then leave them rough and exposed to the mellowing action of freezing and thawing Frequent, shallow tillage can help to prevent crusting of the topsoil Maize crops require deep cultivation and ridges in the soil to improve drainage (maize cannot tolerate waterlogging and can die if it stands in water for as long as 2 days) Adding lime to clay soils can improve the soil's texture to result in looser and more porous soil Use under-drainage to reduce the soil's heaviness by removing the extra water during dry periods Under-drainage promotes aeration and warmth in clay soils Loosen clay soils by mixing them with humus or sand Barnyard manure or a green manure crop will lighten heavy clay soil To lighten clay soil, spread sand on top of the clay soil and plow it under [28] [29] [30] [31] Lok mukaro angwec The feel of clay soils is slick or lumpy and sticky when very wet, and hard and smooth when dry [6] [32] Tee lok This measure the percentage of clay in the topsoil. Clay is naturally occurring firm earthy material, composed primarily of fine-grained (diameter less than 0.002mm) that is plastic when wet and hardens when heated and that consists primarily of hydrated silicates or aluminum. Clay is mostly composed of clay minerals which are phyllo-silicate minerals and minerals which impart plasticity and harden when fired or dried. The definition of "fine grained" used above is particles smaller than 2 µm, colloid chemists (and Eastern European soil scientists) may use 1 µm. The clay content of the soil is listed as a percentage (0 to 100) of the total weight of the soil. Soils is with a high percentage of clay, such as Vertisols, are used for very extensive (grazing, collection of fuelwood, and charcoal burning) through smallholder post-rainy season crop production (millet, sorghum, cotton and chickpeas) to small-scale (rice) and large-scale irrigated agriculture (cotton, wheat, barley, sorghum, chickpeas, flax, noug [Guzotia abessynica] and sugar cane). Cotton is known to perform well on Vertisols, allegedly because cotton has a vertical root system that is not damaged severely by cracking of the soil. Tree crops are generally less successful because tree roots find it difficult to establish themselves in the subsoil and are damaged as the soil shrinks and swells. Management practices for crop production should be directed primarily at water control in combination with conservation or improvement of soil fertility [12]
Gravel - Iwi miacel - Dwone	19% Peke	Challenges Gravel can affect the rooting conditions and workability of soils May be low in organic matter [12] [33] [34] [35] Cwiny wii Add organic matter fertilize regularly Use pea gravel as a mulch to protect the roots of herbs and other drought-tolerant plants Pea gravel reflects heat and provides good drainage [12] [33] [34] [35] Tee lok This measures the volume percentage of gravel in the topsoil. Gravel stands for the percentage of materials in a soil that are larger than 2 mm. Gravel can affect the rooting conditions and workability of soils. The percentage of gravel in the soil is listed on a scale of 0 to 100 percent volume [30] [36]
Kwoyo - Iwi miacel - Peke	42% Peke	Challenges Sand dries out rapidly and may lack nutrients because nutrients can be easily washed through the soil with rainfall or irrigation low in organic matter content and native fertility low in ability to retain moisture and nutrients low in cation exchange and buffer capacities rapidly permeable (i.e., rapid movement of water and air) In the perhumid tropics, sandy soils are chemically exhausted and highly sensitive to erosion Cwiny wii Use frequent irrigation, artificial drainage, and proper fertilization (more frequent but lower quantities of nutrients per application) Total amounts of fertilizer per crop are usually quite high Manage erosion and chemical exhaustion in perhumid tropical soils Add organic matter to improve texture, increase water-holding capacity, and improve fertility [37] [31] [6] [3] [4] [5] Lok mukaro angwec Sand is free-draining, has a gritty feel, warms quickly, and is easy to cultivate Feel is gritty, not sticky [6] Tee lok Sand comprises particles, or granules, ranging in diameter from 0.0625 mm (or 1/16 mm) to 2 millimeters. An individual particle in this range size is termed a sand grain. Sand feels gritty when rubbed between the fingers (silt, by comparison, feels like flour). This measures the percentage (0 to 100) by weight of sand in the topsoil. Sand is commonly divided into five sub-categories based on size very fine sand (1/16 - 1/8 mm diameter) fine sand (1/8 mm - 1/4 mm) medium sand (1/4 mm - 1/2 mm) coarse sand (1/2 mm - 1 mm) and very coarse sand (1 mm - 2 mm) [12] [26]
Kwoyo mawoko - Iwi miacel - Peke	37% Peke	Challenges erosion [38] Cwiny wii Tillage and erosion control measures such as terracing, contour plowing, mulching and use of cover crops help to conserve the soil from compaction and serious structure deterioration Fertilizers and/or lime are preconditions for continuous cultivation [39] [40] [38] Lok mukaro angwec Silty soils have a weak structure (break up easily) easy to work The feel of silt is smooth and soapy Feel is smooth or flour-like when rubbed between the thumb and fingers makes a weak ribbon (less than 2.5 cm long) [39] Tee lok Silt is produced by the mechanical weathering of rock, as opposed to the chemical weathering that results in clays. This mechanical weathering can be due to grinding by glaciers, eolian abrasion (sandblasting by the wind) as well as water erosion of rocks on the beds of rivers and streams. Silt is sometimes known as 'rock flour' or 'stone dust', especially when produced by glacial action. Mineralogically, silt is composed mainly of quartz and feldspar. This measures the percentage (0 to 100) by weight of silt in the topsoil. Soils with a lot of silt make excellent farm land, but erode easily. Erosion removes topsoil, reduces levels of soil organic matter, and contributes to the breakdown of soil structure. This creates a less favorable environment for plant growth. Soil erosion can be avoided by: maintaining a protective cover on the soil, creating a barrier to the erosive agent, modifying the landscape to control runoff amounts and rates. Specific practices to avoid water erosion: growing forage crops in rotation or as permanent cover; growing winter cover crops; interseeding; protecting the surface with crop residue; shortening the length and steepness of slopes; increasing water infiltration rates; improving aggregate stability. Specific practices to avoid wind erosion: maintaining a cover of plants or residue, planting shelterbelts, stripcropping, increase surface roughness, cultivating on the contour, maintaining soil aggregates at a size less likely to be carried by wind [12]
Electrical conductivity	0.1 dS/m	Challenges inhibited uptake of water irrigation and waterlogging can cause excess soil salinity [26] [41] Cwiny wii Control soil salinity by permitting 10-20% of the irrigation water to leach the soil, and then be drained and discharged [26] [41] Lok mukaro angwec ECe, or electrical conductivity, is a measure of soil salinity [12] Tee lok This gives the electrical conductivity of the topsoil. Coastal and desert soils in particular can be enriched with water-soluble salts or salts more soluble than gypsum. The salt content of a soil can be roughly estimated from the Electrical Conductivity of the soil (EC, expressed in dS/m) measured in a saturated soil paste or a more diluted suspension of soil in water. Accumulation of salts may cause salinity. Excess of free salts referred to as soil salinity is measured as Electric Conductivity (EC in dS/m) or as saturation of the exchange complex with sodium ions. Salinity affects crops through inhibiting the uptake of water. Moderate salinity affects growth and reduces yields; high salinity levels may kill the crop. Crops vary considerably in their resistance and response to salt in soils. Some crops will suffer at values as little as 2 dS/m (spinach) others can stand up to 16 dS/m (date palm). Agronomic relevant limits are Very low ECe < 2 dS/m Low ECe = 2 – 4 dS/m Moderate ECe = 4 – 8 dS/m High ECe = 8 – 16 dS/m Very High ECe > 16 dS/m Some plants are more tolerant to a high salt concentration than others. Highly tolerant plants include date palm, barley, sugarbeet, cotton, asparagus, spinach [12] [26]
Gypsum content CaSO4	0% Dwone	Cwiny wii Using water culture to increase the concentration of SO4 mixture (K2SO4 + MgSO4) increases the uptake of NO3, K, Mg and sulphur but decreases the uptake of Ca and P Use soil terracing to prevent erosion Use supplementary irrigation to increase productivity where water resources are available Harrow the land after harvesting and before the rainy season to improve the infiltration of water and conserve soil moisture Increase organic matter by replacing fallow by small-grain leguminous crops in the wheat-fallow rotations Add manure Use subsoiling to break the cemented gypsic subsoil to improve root penetration and reduces susceptibility to drought, especially in the case of fruit and forest trees Do not mix the topsoil and subsoil Apply nitrogen and phosphorus to cereals N is generally applied where rainfall exceeds 260 mm annually Phosphorus fertilizers increase the yield of cereals, especially under low rainfall For irrigated gypsiferous soils: The use of (NH4)2CO3 solution was found to cause the optimum elimination of gypsum in gypsiferous soils with both low and high levels of gypsum; In general, there is need for ample nitrogen fertilizers for crops grown on gypsiferous soils, especially under irrigated agriculture. There are no significant differences between the requirements of crops for nitrogen on gypsiferous and non-gypsiferous soils; Molybdenum applications might benefit many plants, especially legumes [42] [12] Lok mukaro angwec Up to 2 percent gypsum in the soil favors plant growth Most agricultural crops thrive in soils with no to very low gypsum content Tee lok Calcium sulphate (gypsum) content in topsoil. Gypsum is a chemical compound (a salt) which occurs occasionally in soils particularly in the driest areas of the globe where it can occur in a flower-like form typically opaque with embedded sand grains called desert rose. In soils it may occur in fibers, crystals or soft. Research indicates that up to 2 percent gypsum in the soil favours plant growth, between 2 and 25 percent has little or no adverse effect if in powdery form, but more than 25 percent can cause substantial reduction in yields. It is suggested that reductions are due in part to imbalanced ion ratios, particularly K:Ca and Mg:Ca. Gypsum strongly limits available soil moisture. Tolerance of crops to gypsum varies widely (FAO, 1990; Sys, 1993). Relevant limits are considered the following None to very low CaSO4 < 2% Low CaSO4 = 2 – 5% Moderate CaSO4 = 5 – 25% High CaSO4 = 25 – 40% Very High CaSO4 > 40%
Soil reaction - pH	5.1 -log H+	Challenges Very acid soils often suffer from Al toxicity. Below a pH of 6.0 (acid), nutrients such as nitrogen, phosphorus, and potassium become less available.. Some crops are tolerant for these conditions [7] [8] [9] [10] [11] Cwiny wii Add alkaline material such as limestone to decrease soil acidity Apply 2.3 kg of lime per 30 square meters to raise the pH by one point Applying wood ashes will raise soil pH--Wood ashes contain up to 70 percent calcium carbonate, as well as potassium, phosphorus, and many trace elements. Because it is powdery, wood ash is a fast-acting liming material Limit the application of wood ashes to 1 kg per 30 square meters and only apply it every other year in the same area Breed aluminum-tolerant crops [7] [8] [9] [10] Lok mukaro angwec Many plant species are adapted to acidic or alkaline soils The availability of many plant nutrients (for example, P), non-essential elements (for example, Al, Cd, Pb), and essential trace elements (for example, Mn, Fe, Cu, Zn) is strongly dependent on soil pH (Miller and Gardiner 2001) Generally, metal cations (for example, Mn, Fe, Ni, Cu, Zn, Cd, Pb) become more available as pH decreases, while oxyanions (for example, SO4) become more available at alkaline pH levels Soil pH is strongly dependent on the chemical weathering environment. Soils in hot, humid areas and even mesic, wetter areas tend to be more acidic than those of much drier areas. Vegetation communities in those areas tend to be adapted to the soil conditions in which they developed Few plant communities are adapted to strongly or severely acid soils, particularly if those conditions developed as a result of acidic atmospheric deposition more rapidly than the plant communities could adapt [12] [13] [14] Tee lok This gives the soil reaction of subsoil. pH, measured in a soil-water solution, is a measure for the acidity and alkalinity of the soil. Five major pH classes are considered here that have specific agronomic significance pH < 4.5 = Extremely acid soils include Acid Sulfate Soils (Mangrove soils, cat clays). Do not drain because by oxidation sulfuric acid will be produced and pH will drop lower still pH 4.5 – 5.5 = Very acid soils suffering often from Al toxicity. Some crops are tolerant for these conditions (Tea, Pineapple) pH 5.5 –7.2 = Acid to neutral soils - these are the best pH conditions for nutrient availability and suitable for most crops pH 7.2 – 8.5 = These pH values are indicative of carbonate rich soils. Depending on the form and concentration of calcium carbonate they may result in well structured soils which may however have depth limitations when the calcium carbonate hardens in an impermeable layer and chemically forms less available carbonates affecting nutrient availability (Phosphorus, Iron) pH > 8.5 = Indicates alkaline soils often highly sodic (Na reaching toxic levels), badly structured (columnar structure) and easily dispersed surface clays [12] [43]
Exchangeable sodium	1Ikum mia	Tee lok This gives the exchangeable sodium percentage in the topsoil. The exchangeable sodium percentage has been used to indicate levels of sodium in soils it is calculated as the ratio of Na in the CEC (or sum of cations) ESP= Na*100/CECsoil. Alternatively SAR (Sodium Adsorption Ratio) has been used (SAR= Na/Square root ((Ca+Mg)/2)) to indicate levels of sodium hazards for crops. Excess of free salts referred to as saturation of the exchange complex with sodium ions, which is referred to as sodicity or sodium alkalinity and is measured as Exchangeable Sodium Percentage (ESP). Sodicity causes sodium toxicity and affects soil structure leading to massive or coarse columnar structure with low permeability. Sodic soils have a low infiltration rate, they are poorly aerated and difficult to cultivate. Thus, sodic soils adversely affect the plants' growth. Agronomic relevant limits are Low ESP < 6% Moderate ESP = 6 – 15% High ESP = 15 – 25% Very High ESP > 25% [12] [26]
Reference bulk density	1.33 kg/dm3	Cwiny wii To reduce high bulk density and compaction, minimize soil disturbance and production activities when soils are wet, use designated field roads or rows for equipment traffic, reduce the number of trips across the area, and maintain or increase soil organic matter Use grazing systems that minimize livestock traffic and loafing, provide protected heavy use areas, and adhere to recommended minimum grazing heights Use conservation crop rotation, cover crop, deep tillage, prescribed grazing residue, and tillage management Avoid plowing, timber harvesting, or compaction of the soil [15] [16] [17] [18] Lok mukaro angwec Soil bulk density may indicate soil compaction but is dependent on many soil factors including particle size distribution, soil organic matter content, and coarse fragment content Bulk density increases as the sand and rock content increases Bulk density decreases as the organic matter content increases A mineral soil with “ideal” physical properties has 50 percent solids and 50 percent pore space occupying a given volume of space At optimal water content, half the pore space is filled with water (such a soil will have a bulk density of 1.33 g/cm3) Roots usually grow well in soils with bulk densities of up to 1.4 g/cm3 Root penetration begins to decline significantly at bulk densities above 1.7 g/cm3 Above 1.5 g/cm3, there is an increasing probability of adverse effects from soil compaction or high rock content Coarse fragments—Soils with a coarse fragment content of > 50 percent to have a greater probability of adverse effects from infiltration rates that are too high, water storage capacity that is too low, more difficult root penetration, and greater difficulty in seed germination and seedling growth A high contents of coarse fragments can limit soil productivity [15] [16] [17] [18] Tee lok Reference bulk density is a property of particulate materials. It is the mass of many particles of the material divided by the volume they occupy. The volume includes the space between particles as well as the space inside the pores of individual particles. This is a measurement in kg/dm3 of the topsoil reference bulk density. Bulk density reflects the soil’s ability to function for structural support, water and solute movement, and soil aeration. High bulk density is an indicator of low soil porosity and soil compaction. It may cause restrictions to root growth, and poor movement of air and water through the soil. Compaction can result in shallow plant rooting and poor plant growth, influencing crop yield and reducing vegetative cover available to protect soil from erosion. By reducing water infiltration into the soil, compaction can lead to increased runoff and erosion from sloping land or waterlogged soils in flatter areas. In general, some soil compaction to restrict water movement through the soil profile is beneficial under arid conditions, but under humid conditions compaction decreases yields. On cropland, long-term solutions to bulk density and soil compaction problems revolve around decreasing soil disturbance and increasing soil organic matter. A system that uses cover crops, crop residues, perennial sod, and/or reduced tillage results in increased soil organic matter, less disturbance and reduced bulk density. Additionally, the use of multi-crop systems involving plants with different rooting depths can help break up compacted soil layers [12] [40] [44]
Nitrogen (N)		Challenges Too much nitrogen in soil can harm plants Adding nitrogen is easy, but removing excess nitrogen in soil is more difficult Too much nitrogen in soil reduces the ability of plants to fruit and flower [45] [16] [17] [46] Cwiny wii Organic methods of adding nitrogen to the soil include: adding composted manure to the soil, planting a green manure crop such as borage, planting nitrogen-fixing plants such as peas or beans, and adding coffee grounds to the soil, but be careful when adding coffee grounds as this practice also creates acidity and lowers pH of the soil. Organic methods require more time than inorganic methods, but they can result in a more even distribution of the added nitrogen. Non-organic methods of adding nitrogen to the soil include the use of chemical fertilizers. A high-nitrogen fertilizer will have a high first number in the NPK ratio, for example 10-10-10. Nitrogen-containing chemical fertilizers act quickly to add nitrogen to the soil, but the nitrogen also leaves the soil quickly. If there is too much nitrogen in the soil, plant squash, cabbage, broccoli or maize which will use up large amounts of nitrogen while they grow. Note: while these plants absorb the excess nitrogen in the soil, they may look unhealthy and may produce low yields [45] [16] [17] [46] Lok mukaro angwec Total nitrogen in mineral soils (percent): > 0.5 = High – excellent reserve of nitrogen 0.1 to 0.5 = Moderate – adequate levels < 0.1 = Low – could indicate loss of organic N Nitrogen is essential for plant growth. Plants will not grow or produce without sufficient nitrogen When legumes and other nitrogen fixing plants and the bacteria called Rhizobium work together to store the nitrogen, they are creating a green warehouse in the soil. While they are growing, they release very little nitrogen into the soil, but when they are done growing and they die, their decomposition release the stored nitrogen and increases the total nitrogen in soil. Their death makes nitrogen for plants available later on. When the plant stores the nitrogen in the roots, it produces a lump on the root called a nitrogen nodule. This is harmless to the plant but very beneficial to the farm [45] [16] [17] [46]
Phosphorus (P)		Challenges Generally, it is difficult for plants to absorb phosphorus (P) so it is usually not a concern that plants will absorb too much P.: Plants grown in soils with Olsen-extractable P levels above 10 mg/kg usually will not respond to added P Do not overuse P: soils with very high levels of extractable P may have a deleterious effect on water quality if such soils are subjected to erosion and the soil particles end up in receiving waters [47] [16] [17] [46] Cwiny wii For inorganic farms, use phosphate-containing fertilizers, such as N-P-K with a high P value (the middle value) Use bone meal or rock phosphate to correct a phosphorus deficiency Add compost to the soil to help plants take up the phosphorus that is already in the soil [47] [16] [17] [46] Lok mukaro angwec Phosphorus is one of the essential nutrients required for plant growth and development. It helps plants convert other nutrients in order for the plant to grow Phosphorus is the "P" component of N-P-K fertilizers. The availability of soil P to plants depends on the forms of P in soils and soil pH In acid soils, most plant-available P is associated with Fe and Al oxides and is best extracted with the Bray 1 extractant (0.03 M NH4F + 0.025 M HCl). The Bray 1 extractant is applicable to soils with a pH below 6.8, but not to near-neutral or alkaline soils because the acid in the extract begins to dissolve Ca phosphates. These Ca phosphates usually release only small amounts of P for plant uptake unless they begin to dissolve under more acid conditions. Generally, deficiency symptoms are not exhibited by plants growing in soils with Bray 1 levels above 15 mg/kg (Soil and Plant Analysis Council 1999) In alkaline soils, most soil P is associated with Ca, either sorbed to carbonate minerals or existing as various Ca phosphate minerals, the most common of which is apatite. The Olsen (pH 8.5, 0.5 M NaHCO3) extractant was developed to measure plant-available P in alkaline soils, but it also works in many acid soils. The bicarbonate ions release P sorbed to many mineral surfaces that is plant available without dissolving the otherwise plant-unavailable P in Ca phosphates [47] [16] [17] [46]
Potassium (K)		Cwiny wii Potassium fertilizer is sometimes called potash fertilizer high potassium fertilizer contains only potassium (K) or has a high K value Compost made primarily from food byproducts, especially banana peels, is an excellent source of potassium for the soil when used as a soil additive Use wood ash as a light application to avoid burning plants Greensand can be used as a soil additive to add potassium to the soil Because potassium deficiency in plants is difficult to diagnose visually, test the soil before adding more potassium [48] [16] [17] [46] Lok mukaro angwec With all plants, potassium assists all functions within the plant. When a plant has enough potassium, it will simply be a better overall plant Potassium is important to plant growth and development. Potassium helps: plants grow faster, use water better and be more drought resistant, fight off disease, resist pests, grow stronger, and produce more crops K (mg/kg): > 500 = High – excellent reserve 100 to 500 = Moderate – adequate levels for most plants < 100 = Low – possible deficiencies [48] [16] [17] [46]

Kare	Depth	Wang otul	Texture Reaction - pH	Organic Carbon Conductivity - Electrical	Subsoil Cation Exchange	Clay Cation Exchange	Calcium Carbonate - Lime	Gypsum Sodium - Exchangeable
	Topsoil	4	5.1	1.45	12	32	0	0
	Subsoil	4	5.1	0.5	9	35	0	0

Soil Triangle - Dystric Cambisols

Images - Dystric Cambisols

Tee lok - Dystric Cambisols

Cambisols combine soils with at least an incipient subsurface soil formation. Transformation of parent material is evident from structure formation and mostly brownish discoloration, increasing clay percentage, and/or carbonate removal. Other soil classification systems refer to many Cambisols as: Braunerden (Germany), Sols bruns (France), Brown soils/Brown Forest soils (older US systems), or Burozems (Russian Federation). FAO coined the name Cambisols, adopted by Brazil (Cambissolos); US Soil Taxonomy classifies most of these soils as Inceptisols. Cambisols contain medium and fine-textured materials derived from a wide range of rocks. Cambisols are characterized by slight or moderate weathering of parent material and by absence of appreciable quantities of illuviated clay, organic matter, Al and/or Fe compounds. Dystric indicates having a base saturation (by 1 M NH4OAc) of less than 50 percent in the major part between 20 and 100 cm from the soil surface or between 20 cm and continuous rock or a cemented or indurated layer. Cambisols can be found in level to mountainous terrain in all climates; wide range of vegetation types. Cambisols cover an estimated 1 500 million ha worldwide. Cambisols are particularly well represented in temperate and boreal regions that were under the influence of glaciations during the Pleistocene, partly because the parent material of the soil is still young, but also because soil formation is slow in cool regions. Erosion and deposition cycles explain the occurrence of Cambisols in mountain regions. Cambisols also occur in dry regions but are less common in the humid tropics and subtropics where weathering and soil formation proceed at much faster rates than in temperate, boreal and dry regions. The young alluvial plains and terraces of the Ganges–Brahmaputra system are probably the largest continuous surface of Cambisols in the tropics. Cambisols are also common in areas with active geologic erosion, where they may occur in association with mature tropical soils. By and large, Cambisols make good agricultural land and are intensively used. The Dystric Cambisols, though less fertile than Eutric Cambisols, are used for (mixed) arable farming and as grazing land. Cambisols on steep slopes are best kept under forest; this is particularly true for Cambisols in highlands. Dystric and Ferralic Cambisols in the humid tropics are poor in nutrients but still richer than associated Acrisols or Ferralsols and they have a greater cation exchange capacity

[30] [59]

Tyen Lok - Ngom mamiyo

Loams are the most useful "all around" soils; they combine the lightness and earliness of the sands, with the strength and retentiveness of the clays. Loams contain from 40 to 60 per cent, of sand, and 15 to 25 per cent, of clay. They "work up" easily, do not crust or crack, are well supplied with plant food, and, what is chiefly important, water moves through them freely and still they are not leachy. Practically all farm crops grow satisfactorily on a loam. It is especially suitable for potatoes, corn, market-gardening crops, and small fruits; but grasses, cereals, clover, alfalfa, and cotton, find it congenial. It requires no special treatment, except such attention to good tillage, drainage, and the addition of humus as is a necessary part of the best farm practice everywhere. It doesn't matter if peppers are grown in temperate, tropical or subtropical climates as long as they have a relatively dry season, so a good loam that drains well helps to offset a wetter climate. Most fruit trees live longer and produce better when they grow in balanced loam. Citrus trees like good drainage, but they need to be kept moist. Loam is a good choice for citrus

[22]

Jami Apura - Dystric Cambisols

mixed arable farming (dystric), food and oil crops (vertic and calcaric), annual and perennial crops (eutric, calcaric, chromic in undulating or hilly (mainly colluvial) terrain), paddy soils (gleyic)

[60] [61]

Metrics/Discussion

Wii Lok	Pire tek	Pete tere
Wang otul	4	Lok mukaro angwec Soil without mottles indicates good drainage Water moves through the soil readily, but not rapidly Internal free-water commonly is deep or very deep Water is available to plants in humid regions during much of the growing season Wetness does not inhibit growth of roots for significant periods during most growing seasons The soil is deep to or lacks redoximorphic features A well-drained soil has "good" drainage. These soils are commonly intermediate in texture, although soils of other textural classes may also be well drained. Well-drained soils commonly retain optimum amounts of moisture for plant growth after rains or addition of irrigation water Tee lok Drainage Class soils refers to the frequency and duration of periods when the soil is saturated with water. Alterations of the water regime by human activities, either through drainage or irrigation, are not a consideration unless they have significantly changed the morphology of the soil. Seven classes of natural soil drainage are recognized 1. very poorly drained 2. poorly drained 3. somewhat poorly drained 4. moderately well drained 5. well drained 6. somewhat excessively drained 7. excessively drained [23] [24]
Soil reference depth	100 mm	Challenges Soil depth limitations may affect root penetration and may constrain yield formation in roots and tubers [12] [25] Tee lok An approximation of actual soil depth can be derived through accounting for relevant depth limiting soil phases, obstacles to roots and occurrence of impermeable layers. Soil depth limitations which affect root penetration and may constrain yield formation (roots and tubers). This is a measurement in cm of reference soil depth. Reference soil depth of all soil units are set at 100 cm, except for Rendzinas and Rankers of FAO-74 and Leptosols of FAO-90, where the reference soil depth is set at 30 cm, and for Lithosols of FAO-74 and Lithic Leptosols of FAO-90, where it is set at 10 cm [12] [26]
Base saturation	38Ikum mia	Challenges Very acid soils often suffer from Al toxicity Below a pH of 6.0 (acid), nutrients such as nitrogen, phosphorus, and potassium become less available Cwiny wii Add alkaline material such as limestone to decrease soil acidity Apply 2.3 kg of lime per 30 square meters to raise the pH by one point Applying wood ashes will raise soil pH--Wood ashes contain up to 70 percent calcium carbonate, as well as potassium, phosphorus, and many trace elements. Because it is powdery, wood ash is a fast-acting liming material Limit the application of wood ashes to 1 kg per 30 square meters and only apply it every other year in the same area Breed aluminum-tolerant crops Lok mukaro angwec The base saturation value often shows a near linear correlation with pH Base saturation = 20-50% indicates acid conditions, with a similar interpretation as acid pH [12] Tee lok The base saturation of the topsoil measures the sum of exchangeable cations (nutrients) Na, Ca, Mg and K as a percentage of the overall exchange capacity of the soil (including the same cations plus H and Al). The value often shows a near linear correlation with pH. Critical values as follows Base Saturation < 20 % = desaturated soils, similar interpretation as extremely acid pH Base Saturation of 20 – 50 % = acid conditions Base Saturation of 50 – 80 % = Soil conditions of neutral to slightly alkaline which are ideal conditions for most crops Base Saturation > 80% indicates saturated conditions often calcareous, sometimes sodic or saline [12] [25]
Calcium carbonate CaCO3 - Lime	0% Peke	Lok mukaro angwec Low levels of calcium carbonate enhance soil structure and are generally beneficial for crop production [12] [27] Tee lok This gives the calcium carbonate (lime) content in the topsoil. Calcium carbonate is a chemical compound (a salt), with the chemical formula CaCO3. It is a common substance found as rock in all parts of the world, and is the main component of shells of marine organisms, snails, and eggshells. Calcium carbonate is the active ingredient in agricultural lime, and is usually the principal cause of hard water. It is quite common in soils particularly in drier areas and it may occur in different forms as mycelium-like threads, as soft powdery lime, as harder concretions or cemented in petrocalcic horizons. Low levels of calcium carbonate enhance soil structure and are generally beneficial for crop production but at higher concentrations they may induce iron deficiency and when cemented limit the water storage capacity of soils. In agronomic sense relevant limits are None to very low < 2 Low = 2 – 5 Moderate = 5 – 15 High = 15 – 40 Very High > 40 [12]
Organic carbon	1.45% Peke	Cwiny wii Increase the organic matter content by returning organic materials to soils and adding rotations with high-residue crops and deep- or dense-rooting crops Ways to increase organic matter contents of soils: compost, cover crops/green manure crops, crop rotation, perennial forage crops, zero or reduced tillage, agroforestry [19] [20] [12] [16] [17] [18] Lok mukaro angwec Organic Carbon is, together with pH, the best simple indicator of the health status of the soil High amounts of organic carbon are associated with fertile soils with a good structure High soil organic carbon (SOC) status in the soil can be an indicator of high crop yields Total organic carbon in mineral soils (percent): 1 to 5 = adequate levels [19] [20] [12] [16] [17] [18] Tee lok This gives the percentage of organic carbon in the topsoil. Organic Carbon is, together with pH, the best simple indicator of the health status of the soil. Moderate to high amounts of organic carbon are associated with fertile soils with a good structure. Soils that are very poor in organic carbon (<0.2%), invariable need organic or inorganic fertilizer application to be productive. Soils with an organic matter content of less than 0.6% are considered poor in organic matter. The following classes are suggested to prepare maps of organic carbon status for mineral soils Code 1 < 0.2% organic carbon Code 2 = 0.2 – 0.6% organic carbon Code 3 = 0.6 – 1.2% organic carbon Code 4 = 1.2 – 2.0% organic carbon Code 5 > 2.0% organic carbon [12] [26]
Cation exchange capacity - Kwoyo	32 cmol/kg	Challenges Low CEC soils are more likely to develop potassium and magnesium (and other cation) deficiencies, while high CEC soils are less susceptible to leaching losses of these cations.. For sandy soils, the addition of a large amount of potassium at one time can lead to high losses due to leaching. This is because the potassium adds a large amount of cations at one time and soil cannot hold on to the excess potassium. Therefore, frequent additions of smaller amounts of potassium can work better to add potassium to the soil than one large amount Cwiny wii The lower the CEC, the faster the soil pH will decrease with time Sandy soils require more frequent liming than clay soils The higher the CEC, the larger the quantity of lime that must be added to increase the soil pH sandy soils need less lime than clay soils to increase soil pH The higher the CEC, the larger the quantities of soil additives the soil will need to change soil pH, either when increasing pH with lime or high bicarbonate irrigation water, or when decreasing pH with nitrogen fertilizers or elemental sulfur Lok mukaro angwec CEC in the range of 20 to 50 cmol/kg clay indicates a moderate CEC with soils containing mixed clay with kaolinite present The presence of some kaolinite indicates that the soil exists in a somewhat tropical, leaching climate CEC is highly dependent upon soil texture and organic matter content Generally, the higher the contents of clay and organic matter in the soil, the higher the CEC CEC of most soils increases with an increase in soil pH Very acid soils will have high concentrations of H+ and Al3+ In neutral to moderately alkaline soils, Ca2+ and Mg2+ dominate Poorly drained arid soils may adsorb Na in very high quantities Only a small percentage of the essential plant nutrient cations (K +, Ca 2+, Mg 2+, and NH4+) will be ‘loose’ in the soil water and thus available for plant uptake, therefore the CEC is important because it provides a reservoir of nutrients Cations in the soil water that are leached below the rootzone by water are replaced by cations formerly bound to the CEC ‘Buffer capacity’ exists for cation nutrients as well as soil pH Lighter concentrations yield white, yellow or light orange colors Kaolinite has a low shrink-swell capacity and a low cation exchange capacity Tee lok This gives the cation exchange capacity of the clay fraction in topsoil. The type of clay mineral dominantly present in the soil is often characterizes a specific set of pedogenetic factors in which the soil has developed. Tropical, leaching climates produce the clay mineral kaolinite, while confined conditions rich in Ca and Mg in climates with a pronounced dry season encourage the formation of the clay mineral smectite (montmorillonite). Nutrient retention capacity is of particular importance for the effectiveness of fertilizer applications and is therefore of special relevance for intermediate and high input level cropping conditions. Nutrient retention capacity refers to the capacity of the soil to retain added nutrients against losses caused by leaching. Plant nutrients are held in the soil on the exchange sites provided by the clay fraction, organic matter and the clay-humus complex. Losses vary with the intensity of leaching which is determined by the rate of drainage of soil moisture through the soil profile. Clay minerals have typical exchange capacities, with kaolinites generally having the lowest at less than 16 cmol/kg, while smectites have one of the highest with a CEC per 100g clay being 80 cmol/kg, or more. The classes generally used in the Harmonized World Soil Database are Class 1 = < 20 cmol/kg clay (kaolinite dominant) Class 2 = 20-50 cmol/kg clay (mixed with kaolinite present) Class 3 = >50-100 cmol/kg clay (mixed, illite) Class 4 = >100 cmol/kg clay (montmorillonite) NOTE: Soils developed on volcanic materials rich in amorphous sesquioxides may have very higher values (over 150 cmol/kg) [12]
Cation exchange capacity - Ngom	12 cmol/kg	Challenges Having a larger CEC values is an indicator that the soil has a greater capacity to hold cations A high CEC soil has a greater capacity to hold cations, so higher rates of fertilizer or lime are often required to change a high CEC soil high CEC is an indicator that there is a high reserve of nutrients in the soil Soils with low CEC can take a large amount of fertilizer or lime to correct A high CEC soil requires a higher soil cation level, or soil test, to provide adequate crop nutrition Cwiny wii The higher the CEC, the larger the quantity of lime that must be added to increase the soil pH Sandy soils need less lime than clay soils to increase the pH to desired levels The higher the CEC, the larger the quantities of soil additives the soil will need to change soil pH, either when increasing pH with lime or high bicarbonate irrigation water, or when decreasing pH with nitrogen fertilizers or elemental sulfur.. Acceptable saturation ranges for Soil CEC = 6-10: 3-5% K, 50-70% Ca, 8-20% Mg Tee lok This gives the cation exchange capacity in the topsoil. The total nutrient fixing capacity of a soil is well expressed by its Cation Exchange Capacity. Soils with low CEC have little resilience and can not build up stores of nutrients. Many sandy soils have CEC less than 4 cmol/kg. The clay content, the clay type and the organic matter content all determine the total nutrient storage capacity. Nutrient retention capacity is of particular importance for the effectiveness of fertilizer applications and is therefore of special relevance for intermediate and high input level cropping conditions. Nutrient retention capacity refers to the capacity of the soil to retain added nutrients against losses caused by leaching. Plant nutrients are held in the soil on the exchange sites provided by the clay fraction, organic matter and the clay-humus complex. Losses vary with the intensity of leaching which is determined by the rate of drainage of soil moisture through the soil profile. Values in excess of 10 cmol/kg are considered satisfactory for most crops. This is reflected by the following code system used in the Harmonized World Soil Database Code 1 = Cation Exchange Capacity < 4 cmol/kg Code 2 = Cation Exchange Capacity of 4-10 cmol/kg Code 3 = Cation Exchange Capacity > 10 -- 20 cmol/kg Code 4 = Cation Exchange Capacity > 20 -- 40 cmol/kg Code 5 = Cation Exchange Capacity > 40 cmol/kg [12] [26]
Kwoyo - Iwi miacel - Peke	20% Peke	Challenges Drains poorly, has few air spaces, warms slowly in spring, heavy to cultivate Adverse physical properties Poor workability Require too much management for success in low-technology societies Tree crops cannot root in the subsoil Tree roots are damaged as the soil shrinks and swells Low structural stability Very susceptible to water erosion Cwiny wii Do not use slopes above 5 percent for arable cropping Use groundcover crops on slopes less than 5 percent When terracing, use surface drainage to prevent slumping Add organic matter to improve the tilth, workability, and internal drainage If drainage is improved, plants can grow well in clayey soils since clay holds more nutrients than many other soils Use caution when plowing and tilling Do not plow excessively wet clays, or they will become cloddy Till clay soils only when they are dry and crumble readily In temperate climates, Plow clay soils in the fall, then leave them rough and exposed to the mellowing action of freezing and thawing Frequent, shallow tillage can help to prevent crusting of the topsoil Maize crops require deep cultivation and ridges in the soil to improve drainage (maize cannot tolerate waterlogging and can die if it stands in water for as long as 2 days) Adding lime to clay soils can improve the soil's texture to result in looser and more porous soil Use under-drainage to reduce the soil's heaviness by removing the extra water during dry periods Under-drainage promotes aeration and warmth in clay soils Loosen clay soils by mixing them with humus or sand Barnyard manure or a green manure crop will lighten heavy clay soil To lighten clay soil, spread sand on top of the clay soil and plow it under [28] [29] [30] [31] Lok mukaro angwec The feel of clay soils is slick or lumpy and sticky when very wet, and hard and smooth when dry [6] [32] Tee lok This measure the percentage of clay in the topsoil. Clay is naturally occurring firm earthy material, composed primarily of fine-grained (diameter less than 0.002mm) that is plastic when wet and hardens when heated and that consists primarily of hydrated silicates or aluminum. Clay is mostly composed of clay minerals which are phyllo-silicate minerals and minerals which impart plasticity and harden when fired or dried. The definition of "fine grained" used above is particles smaller than 2 µm, colloid chemists (and Eastern European soil scientists) may use 1 µm. The clay content of the soil is listed as a percentage (0 to 100) of the total weight of the soil. Soils is with a high percentage of clay, such as Vertisols, are used for very extensive (grazing, collection of fuelwood, and charcoal burning) through smallholder post-rainy season crop production (millet, sorghum, cotton and chickpeas) to small-scale (rice) and large-scale irrigated agriculture (cotton, wheat, barley, sorghum, chickpeas, flax, noug [Guzotia abessynica] and sugar cane). Cotton is known to perform well on Vertisols, allegedly because cotton has a vertical root system that is not damaged severely by cracking of the soil. Tree crops are generally less successful because tree roots find it difficult to establish themselves in the subsoil and are damaged as the soil shrinks and swells. Management practices for crop production should be directed primarily at water control in combination with conservation or improvement of soil fertility [12]
Gravel - Iwi miacel - Dwone	10% Peke	Challenges Gravel can affect the rooting conditions and workability of soils May be low in organic matter [12] [33] [34] [35] Cwiny wii Add organic matter fertilize regularly Use pea gravel as a mulch to protect the roots of herbs and other drought-tolerant plants Pea gravel reflects heat and provides good drainage [12] [33] [34] [35] Tee lok This measures the volume percentage of gravel in the topsoil. Gravel stands for the percentage of materials in a soil that are larger than 2 mm. Gravel can affect the rooting conditions and workability of soils. The percentage of gravel in the soil is listed on a scale of 0 to 100 percent volume [30] [36]
Kwoyo - Iwi miacel - Peke	42% Peke	Challenges Sand dries out rapidly and may lack nutrients because nutrients can be easily washed through the soil with rainfall or irrigation low in organic matter content and native fertility low in ability to retain moisture and nutrients low in cation exchange and buffer capacities rapidly permeable (i.e., rapid movement of water and air) In the perhumid tropics, sandy soils are chemically exhausted and highly sensitive to erosion Cwiny wii Use frequent irrigation, artificial drainage, and proper fertilization (more frequent but lower quantities of nutrients per application) Total amounts of fertilizer per crop are usually quite high Manage erosion and chemical exhaustion in perhumid tropical soils Add organic matter to improve texture, increase water-holding capacity, and improve fertility [37] [31] [6] [3] [4] [5] Lok mukaro angwec Sand is free-draining, has a gritty feel, warms quickly, and is easy to cultivate Feel is gritty, not sticky [6] Tee lok Sand comprises particles, or granules, ranging in diameter from 0.0625 mm (or 1/16 mm) to 2 millimeters. An individual particle in this range size is termed a sand grain. Sand feels gritty when rubbed between the fingers (silt, by comparison, feels like flour). This measures the percentage (0 to 100) by weight of sand in the topsoil. Sand is commonly divided into five sub-categories based on size very fine sand (1/16 - 1/8 mm diameter) fine sand (1/8 mm - 1/4 mm) medium sand (1/4 mm - 1/2 mm) coarse sand (1/2 mm - 1 mm) and very coarse sand (1 mm - 2 mm) [12] [26]
Kwoyo mawoko - Iwi miacel - Peke	38% Peke	Challenges erosion [38] Cwiny wii Tillage and erosion control measures such as terracing, contour plowing, mulching and use of cover crops help to conserve the soil from compaction and serious structure deterioration Fertilizers and/or lime are preconditions for continuous cultivation [39] [40] [38] Lok mukaro angwec Silty soils have a weak structure (break up easily) easy to work The feel of silt is smooth and soapy Feel is smooth or flour-like when rubbed between the thumb and fingers makes a weak ribbon (less than 2.5 cm long) [39] Tee lok Silt is produced by the mechanical weathering of rock, as opposed to the chemical weathering that results in clays. This mechanical weathering can be due to grinding by glaciers, eolian abrasion (sandblasting by the wind) as well as water erosion of rocks on the beds of rivers and streams. Silt is sometimes known as 'rock flour' or 'stone dust', especially when produced by glacial action. Mineralogically, silt is composed mainly of quartz and feldspar. This measures the percentage (0 to 100) by weight of silt in the topsoil. Soils with a lot of silt make excellent farm land, but erode easily. Erosion removes topsoil, reduces levels of soil organic matter, and contributes to the breakdown of soil structure. This creates a less favorable environment for plant growth. Soil erosion can be avoided by: maintaining a protective cover on the soil, creating a barrier to the erosive agent, modifying the landscape to control runoff amounts and rates. Specific practices to avoid water erosion: growing forage crops in rotation or as permanent cover; growing winter cover crops; interseeding; protecting the surface with crop residue; shortening the length and steepness of slopes; increasing water infiltration rates; improving aggregate stability. Specific practices to avoid wind erosion: maintaining a cover of plants or residue, planting shelterbelts, stripcropping, increase surface roughness, cultivating on the contour, maintaining soil aggregates at a size less likely to be carried by wind [12]
Electrical conductivity	0.1 dS/m	Challenges inhibited uptake of water irrigation and waterlogging can cause excess soil salinity [26] [41] Cwiny wii Control soil salinity by permitting 10-20% of the irrigation water to leach the soil, and then be drained and discharged [26] [41] Lok mukaro angwec ECe, or electrical conductivity, is a measure of soil salinity [12] Tee lok This gives the electrical conductivity of the topsoil. Coastal and desert soils in particular can be enriched with water-soluble salts or salts more soluble than gypsum. The salt content of a soil can be roughly estimated from the Electrical Conductivity of the soil (EC, expressed in dS/m) measured in a saturated soil paste or a more diluted suspension of soil in water. Accumulation of salts may cause salinity. Excess of free salts referred to as soil salinity is measured as Electric Conductivity (EC in dS/m) or as saturation of the exchange complex with sodium ions. Salinity affects crops through inhibiting the uptake of water. Moderate salinity affects growth and reduces yields; high salinity levels may kill the crop. Crops vary considerably in their resistance and response to salt in soils. Some crops will suffer at values as little as 2 dS/m (spinach) others can stand up to 16 dS/m (date palm). Agronomic relevant limits are Very low ECe < 2 dS/m Low ECe = 2 – 4 dS/m Moderate ECe = 4 – 8 dS/m High ECe = 8 – 16 dS/m Very High ECe > 16 dS/m Some plants are more tolerant to a high salt concentration than others. Highly tolerant plants include date palm, barley, sugarbeet, cotton, asparagus, spinach [12] [26]
Gypsum content CaSO4	0% Dwone	Cwiny wii Using water culture to increase the concentration of SO4 mixture (K2SO4 + MgSO4) increases the uptake of NO3, K, Mg and sulphur but decreases the uptake of Ca and P Use soil terracing to prevent erosion Use supplementary irrigation to increase productivity where water resources are available Harrow the land after harvesting and before the rainy season to improve the infiltration of water and conserve soil moisture Increase organic matter by replacing fallow by small-grain leguminous crops in the wheat-fallow rotations Add manure Use subsoiling to break the cemented gypsic subsoil to improve root penetration and reduces susceptibility to drought, especially in the case of fruit and forest trees Do not mix the topsoil and subsoil Apply nitrogen and phosphorus to cereals N is generally applied where rainfall exceeds 260 mm annually Phosphorus fertilizers increase the yield of cereals, especially under low rainfall For irrigated gypsiferous soils: The use of (NH4)2CO3 solution was found to cause the optimum elimination of gypsum in gypsiferous soils with both low and high levels of gypsum; In general, there is need for ample nitrogen fertilizers for crops grown on gypsiferous soils, especially under irrigated agriculture. There are no significant differences between the requirements of crops for nitrogen on gypsiferous and non-gypsiferous soils; Molybdenum applications might benefit many plants, especially legumes [42] [12] Lok mukaro angwec Up to 2 percent gypsum in the soil favors plant growth Most agricultural crops thrive in soils with no to very low gypsum content Tee lok Calcium sulphate (gypsum) content in topsoil. Gypsum is a chemical compound (a salt) which occurs occasionally in soils particularly in the driest areas of the globe where it can occur in a flower-like form typically opaque with embedded sand grains called desert rose. In soils it may occur in fibers, crystals or soft. Research indicates that up to 2 percent gypsum in the soil favours plant growth, between 2 and 25 percent has little or no adverse effect if in powdery form, but more than 25 percent can cause substantial reduction in yields. It is suggested that reductions are due in part to imbalanced ion ratios, particularly K:Ca and Mg:Ca. Gypsum strongly limits available soil moisture. Tolerance of crops to gypsum varies widely (FAO, 1990; Sys, 1993). Relevant limits are considered the following None to very low CaSO4 < 2% Low CaSO4 = 2 – 5% Moderate CaSO4 = 5 – 25% High CaSO4 = 25 – 40% Very High CaSO4 > 40%
Soil reaction - pH	5.1 -log H+	Challenges Very acid soils often suffer from Al toxicity. Below a pH of 6.0 (acid), nutrients such as nitrogen, phosphorus, and potassium become less available.. Some crops are tolerant for these conditions [7] [8] [9] [10] [11] Cwiny wii Add alkaline material such as limestone to decrease soil acidity Apply 2.3 kg of lime per 30 square meters to raise the pH by one point Applying wood ashes will raise soil pH--Wood ashes contain up to 70 percent calcium carbonate, as well as potassium, phosphorus, and many trace elements. Because it is powdery, wood ash is a fast-acting liming material Limit the application of wood ashes to 1 kg per 30 square meters and only apply it every other year in the same area Breed aluminum-tolerant crops [7] [8] [9] [10] Lok mukaro angwec Many plant species are adapted to acidic or alkaline soils The availability of many plant nutrients (for example, P), non-essential elements (for example, Al, Cd, Pb), and essential trace elements (for example, Mn, Fe, Cu, Zn) is strongly dependent on soil pH (Miller and Gardiner 2001) Generally, metal cations (for example, Mn, Fe, Ni, Cu, Zn, Cd, Pb) become more available as pH decreases, while oxyanions (for example, SO4) become more available at alkaline pH levels Soil pH is strongly dependent on the chemical weathering environment. Soils in hot, humid areas and even mesic, wetter areas tend to be more acidic than those of much drier areas. Vegetation communities in those areas tend to be adapted to the soil conditions in which they developed Few plant communities are adapted to strongly or severely acid soils, particularly if those conditions developed as a result of acidic atmospheric deposition more rapidly than the plant communities could adapt [12] [13] [14] Tee lok This gives the soil reaction of subsoil. pH, measured in a soil-water solution, is a measure for the acidity and alkalinity of the soil. Five major pH classes are considered here that have specific agronomic significance pH < 4.5 = Extremely acid soils include Acid Sulfate Soils (Mangrove soils, cat clays). Do not drain because by oxidation sulfuric acid will be produced and pH will drop lower still pH 4.5 – 5.5 = Very acid soils suffering often from Al toxicity. Some crops are tolerant for these conditions (Tea, Pineapple) pH 5.5 –7.2 = Acid to neutral soils - these are the best pH conditions for nutrient availability and suitable for most crops pH 7.2 – 8.5 = These pH values are indicative of carbonate rich soils. Depending on the form and concentration of calcium carbonate they may result in well structured soils which may however have depth limitations when the calcium carbonate hardens in an impermeable layer and chemically forms less available carbonates affecting nutrient availability (Phosphorus, Iron) pH > 8.5 = Indicates alkaline soils often highly sodic (Na reaching toxic levels), badly structured (columnar structure) and easily dispersed surface clays [12] [43]
Exchangeable sodium	2Ikum mia	Challenges Sodicity causes sodium toxicity and affects soil structure leading to massive or coarse columnar structure with low permeability to water and roots low infiltration rate poorly aerated difficult to cultivate sodic soils can adversely affect plant growth high pH lowers availability of some essential plant nutrients, such as calcium, magnesium, P, Fe, Mn, and Zn risk of toxic levels of sodium, molybdenum, and boron Tee lok This gives the exchangeable sodium percentage in the topsoil. The exchangeable sodium percentage has been used to indicate levels of sodium in soils it is calculated as the ratio of Na in the CEC (or sum of cations) ESP= Na*100/CECsoil. Alternatively SAR (Sodium Adsorption Ratio) has been used (SAR= Na/Square root ((Ca+Mg)/2)) to indicate levels of sodium hazards for crops. Excess of free salts referred to as saturation of the exchange complex with sodium ions, which is referred to as sodicity or sodium alkalinity and is measured as Exchangeable Sodium Percentage (ESP). Sodicity causes sodium toxicity and affects soil structure leading to massive or coarse columnar structure with low permeability. Sodic soils have a low infiltration rate, they are poorly aerated and difficult to cultivate. Thus, sodic soils adversely affect the plants' growth. Agronomic relevant limits are Low ESP < 6% Moderate ESP = 6 – 15% High ESP = 15 – 25% Very High ESP > 25% [12] [26]
Reference bulk density	1.3 kg/dm3	Cwiny wii To reduce high bulk density and compaction, minimize soil disturbance and production activities when soils are wet, use designated field roads or rows for equipment traffic, reduce the number of trips across the area, and maintain or increase soil organic matter Use grazing systems that minimize livestock traffic and loafing, provide protected heavy use areas, and adhere to recommended minimum grazing heights Use conservation crop rotation, cover crop, deep tillage, prescribed grazing residue, and tillage management Avoid plowing, timber harvesting, or compaction of the soil [15] [16] [17] [18] Lok mukaro angwec Soil bulk density may indicate soil compaction but is dependent on many soil factors including particle size distribution, soil organic matter content, and coarse fragment content Bulk density increases as the sand and rock content increases Bulk density decreases as the organic matter content increases A mineral soil with “ideal” physical properties has 50 percent solids and 50 percent pore space occupying a given volume of space At optimal water content, half the pore space is filled with water (such a soil will have a bulk density of 1.33 g/cm3) Roots usually grow well in soils with bulk densities of up to 1.4 g/cm3 Root penetration begins to decline significantly at bulk densities above 1.7 g/cm3 Above 1.5 g/cm3, there is an increasing probability of adverse effects from soil compaction or high rock content Coarse fragments—Soils with a coarse fragment content of > 50 percent to have a greater probability of adverse effects from infiltration rates that are too high, water storage capacity that is too low, more difficult root penetration, and greater difficulty in seed germination and seedling growth A high contents of coarse fragments can limit soil productivity [15] [16] [17] [18] Tee lok Reference bulk density is a property of particulate materials. It is the mass of many particles of the material divided by the volume they occupy. The volume includes the space between particles as well as the space inside the pores of individual particles. This is a measurement in kg/dm3 of the topsoil reference bulk density. Bulk density reflects the soil’s ability to function for structural support, water and solute movement, and soil aeration. High bulk density is an indicator of low soil porosity and soil compaction. It may cause restrictions to root growth, and poor movement of air and water through the soil. Compaction can result in shallow plant rooting and poor plant growth, influencing crop yield and reducing vegetative cover available to protect soil from erosion. By reducing water infiltration into the soil, compaction can lead to increased runoff and erosion from sloping land or waterlogged soils in flatter areas. In general, some soil compaction to restrict water movement through the soil profile is beneficial under arid conditions, but under humid conditions compaction decreases yields. On cropland, long-term solutions to bulk density and soil compaction problems revolve around decreasing soil disturbance and increasing soil organic matter. A system that uses cover crops, crop residues, perennial sod, and/or reduced tillage results in increased soil organic matter, less disturbance and reduced bulk density. Additionally, the use of multi-crop systems involving plants with different rooting depths can help break up compacted soil layers [12] [40] [44]
Nitrogen (N)		Challenges Too much nitrogen in soil can harm plants Adding nitrogen is easy, but removing excess nitrogen in soil is more difficult Too much nitrogen in soil reduces the ability of plants to fruit and flower [45] [16] [17] [46] Cwiny wii Organic methods of adding nitrogen to the soil include: adding composted manure to the soil, planting a green manure crop such as borage, planting nitrogen-fixing plants such as peas or beans, and adding coffee grounds to the soil, but be careful when adding coffee grounds as this practice also creates acidity and lowers pH of the soil. Organic methods require more time than inorganic methods, but they can result in a more even distribution of the added nitrogen. Non-organic methods of adding nitrogen to the soil include the use of chemical fertilizers. A high-nitrogen fertilizer will have a high first number in the NPK ratio, for example 10-10-10. Nitrogen-containing chemical fertilizers act quickly to add nitrogen to the soil, but the nitrogen also leaves the soil quickly. If there is too much nitrogen in the soil, plant squash, cabbage, broccoli or maize which will use up large amounts of nitrogen while they grow. Note: while these plants absorb the excess nitrogen in the soil, they may look unhealthy and may produce low yields [45] [16] [17] [46] Lok mukaro angwec Total nitrogen in mineral soils (percent): > 0.5 = High – excellent reserve of nitrogen 0.1 to 0.5 = Moderate – adequate levels < 0.1 = Low – could indicate loss of organic N Nitrogen is essential for plant growth. Plants will not grow or produce without sufficient nitrogen When legumes and other nitrogen fixing plants and the bacteria called Rhizobium work together to store the nitrogen, they are creating a green warehouse in the soil. While they are growing, they release very little nitrogen into the soil, but when they are done growing and they die, their decomposition release the stored nitrogen and increases the total nitrogen in soil. Their death makes nitrogen for plants available later on. When the plant stores the nitrogen in the roots, it produces a lump on the root called a nitrogen nodule. This is harmless to the plant but very beneficial to the farm [45] [16] [17] [46]
Phosphorus (P)		Challenges Generally, it is difficult for plants to absorb phosphorus (P) so it is usually not a concern that plants will absorb too much P.: Plants grown in soils with Olsen-extractable P levels above 10 mg/kg usually will not respond to added P Do not overuse P: soils with very high levels of extractable P may have a deleterious effect on water quality if such soils are subjected to erosion and the soil particles end up in receiving waters [47] [16] [17] [46] Cwiny wii For inorganic farms, use phosphate-containing fertilizers, such as N-P-K with a high P value (the middle value) Use bone meal or rock phosphate to correct a phosphorus deficiency Add compost to the soil to help plants take up the phosphorus that is already in the soil [47] [16] [17] [46] Lok mukaro angwec Phosphorus is one of the essential nutrients required for plant growth and development. It helps plants convert other nutrients in order for the plant to grow Phosphorus is the "P" component of N-P-K fertilizers. The availability of soil P to plants depends on the forms of P in soils and soil pH In acid soils, most plant-available P is associated with Fe and Al oxides and is best extracted with the Bray 1 extractant (0.03 M NH4F + 0.025 M HCl). The Bray 1 extractant is applicable to soils with a pH below 6.8, but not to near-neutral or alkaline soils because the acid in the extract begins to dissolve Ca phosphates. These Ca phosphates usually release only small amounts of P for plant uptake unless they begin to dissolve under more acid conditions. Generally, deficiency symptoms are not exhibited by plants growing in soils with Bray 1 levels above 15 mg/kg (Soil and Plant Analysis Council 1999) In alkaline soils, most soil P is associated with Ca, either sorbed to carbonate minerals or existing as various Ca phosphate minerals, the most common of which is apatite. The Olsen (pH 8.5, 0.5 M NaHCO3) extractant was developed to measure plant-available P in alkaline soils, but it also works in many acid soils. The bicarbonate ions release P sorbed to many mineral surfaces that is plant available without dissolving the otherwise plant-unavailable P in Ca phosphates [47] [16] [17] [46]
Potassium (K)		Cwiny wii Potassium fertilizer is sometimes called potash fertilizer high potassium fertilizer contains only potassium (K) or has a high K value Compost made primarily from food byproducts, especially banana peels, is an excellent source of potassium for the soil when used as a soil additive Use wood ash as a light application to avoid burning plants Greensand can be used as a soil additive to add potassium to the soil Because potassium deficiency in plants is difficult to diagnose visually, test the soil before adding more potassium [48] [16] [17] [46] Lok mukaro angwec With all plants, potassium assists all functions within the plant. When a plant has enough potassium, it will simply be a better overall plant Potassium is important to plant growth and development. Potassium helps: plants grow faster, use water better and be more drought resistant, fight off disease, resist pests, grow stronger, and produce more crops K (mg/kg): > 500 = High – excellent reserve 100 to 500 = Moderate – adequate levels for most plants < 100 = Low – possible deficiencies [48] [16] [17] [46]

Zero Tillage

Conservation tillage systems such as zero tillage cause minimum disturbance to the soil after the previous crop has been harvested. In zero tillage, the ideal is to plant direct into the soil, without hoeing or plowing. Tillage is reduced to ripping planting lines or making holes for planting with a hoe. Crop residues are left in the field to reduce soil erosion, conserve moisture, inhibit weed growth, and act as green manure. Zero tillage is not recommended when disease is present. To manage disease, crop residues must be either removed from the field and destroyed or deeply ploughed to reduce sources of disease infection and spread.

Advantages of conservation tillage include less machinery, labour and fuel, as well as reduced soil erosion and compaction. Disadvantages of conservation tillage include lower soil temperatures, slower germination and emergence when direct sowing is used, slower early growth, delayed competition with weeds, higher incidence of root diseases, heavier crop residue, the possibility of more difficult planter operation, weed spectrum changes, and potential increase of soil insect pests or insects that spend part of their life cycle in the soil (e.g. cutworms, thrips, leafmining flies, grubs). Cultivation exposes these pests to desiccation by the sun heat and to predation by natural enemies.

Green Manuring

Green manure legumes create nitrogen in the soil by fixing it from the atmosphere.

Benefits of Green Manure Cover Crops

Easy to grow
Increases soil organic matter
Reduce soil losses from wind and water erosion
If it is a legume, it can fix nitrogen. When the legume is mature, chopped up and added to the soil, it will add nitrogen to the soil which will be used by later crops on the land.
The roots of the green manure crops extract nutrients from deep in the soil.
The deep roots work to break up and aerate the soil
When the green manure is added to the soil, it works to lighten and loosen the soil to aerate and improve drainage, making the soil healthier for later crops. After tilling in a green manure crop, we see the soil level in the farm beds raise several inches. The soil is loose and no longer compacted.
Green manure crops include jack beans, perennial peanut, and Mucuna.
These plants help the main crop by increasing soil fertility by adding nitrogen to the soil by nitrogen fixation.
They add biomass (organic matter) to the soil.
As cover crops, they reduce soil loss.

Planting Green Manure Crops

Green manure crops can be planting using intercropping with the main crop or by using crop rotation in which the green manure crop is planted in-between plantings of the main crop. For intercropping, plant the legume seeds in rows between rows of the main crop. Plow the legumes into the soil at the start of the rainy season.

In crop rotation, plant legumes after the main crop has been harvested. The legumes will benefit the field as a cover crop and as green manure. At full biomass maturity, plow the legumes into the soil as green manure for the next crop.

For a source of green manure to the field, cut the legumes at full maturity, shred, and spread over the field.

Preventing Soil Erosion while Adding Nutrients to the Soil

The first step in soil management is preventing the loss, or erosion, of soil. Topsoil is particularly vulnerable to erosion if not protected by plants or mulch or by other measures. The soil that remains after the loss of topsoil is usually less productive, which can result in lower yields. The challenge is to protect soil while using the land for food production and other non-food activities.

Soil erosion is caused mainly by wind and water but also by incorrect cultivation practices. Rain and wind dislodge and then carry away soil particles. Where the soil is bare or the vegetation poor, rainwater does not seep into the soil; instead it runs off and carries with it loose topsoil. Sloping land and light soils with low organic matter content are both prone to erosion. Once eroded, the soil is lost forever.

Soil erosion is a problem in regions with little vegetation, particularly in the semi-arid and arid zones. In the humid tropics, erosion was not considered a problem when the land was in its natural state, because the variety of native plants kept the soils covered at all times. Now, people are clearing more land for agricultural purposes, and the situation has changed. Heavy rains coupled with poor soil management of cultivated areas are now common causes of soil erosion in the humid areas.

Water Erosion

Some common forms of water erosion include:

Sheet erosion: a thin top layer of soil is removed from the soil by the impact of rain. With sheet erosion, small heaps of loose material (e.g. grass) amass between fine lines of sand after a rainstorm. This erosion takes place across a whole garden or field.
Rill erosion: water flows over minor depressions on the land's surface and cuts small channels into the soil. The erosion takes place along the length of these channels.
Gully erosion: a gully forms along natural depressions on the soil's surface or on slopes. The head of a gully moves up the slope in the opposite direction of the flow of water. Gullies are symptoms of severe erosion.

Wind Erosion

This occurs mostly on light soils and bare land. High winds cause severe damage. Wind erosion is a common problem in dry and semi-arid areas, as well as in areas that get seasonal rains.

Unlike water which only erodes on slopes, wind can remove soil from flat land as well as from sloping land; it can also transport the soil particles through the air and deposit them far away. Soils vulnerable to wind erosion are dry, loose, light soils with little or no vegetative cover.

Plowing up and down a slope causes soil erosion. To prevent the loss of soils, certain measures must be taken.

These include:

clearing only the land to be cultivated;
planting along a contour and using grassed channels;
establishing windbreaks and bench terraces;
plowing along a contour;
planting cover crops and mulching.

When clearing land for cultivation, the beneficial effects of certain trees and plants should be considered. Some trees should be left, since they may supply food, medicine, shade or, when they shed their leaves, organic matter.

Feeding the Soil

One of the main goals in growing crops is to make the soil fertile and well structured, so a wide range of useful crops can grow and produce well. In order to grow, plants require nutrients that are present in organic matter, such as nitrogen, calcium and phosphorus, as well as minerals and trace elements.

If the natural fertility or structure of the soil is poor, it must be continuously "fed" with organic matter, such as leaves and manure, in order to improve its productivity and water-holding capacity. As organic matter decomposes, it becomes food for plants. It also improves soil structure by loosening heavy clay and binding sandy soil.

Feeding the soil with organic matter is especially important in the early years of cultivating the land. Organic matter (i.e. waste from plants and livestock) can be collected and buried in the soil, where it will decompose. The organic matter also can be used to make compost, which can be applied to the soil to enrich its fertility.

The roots of legumes contain nitrogen-fixing bacteria. Therefore, intercropping or rotating legumes with other crops helps maintain or improve the nitrogen content of the soil, and this enhances the growth of other plants.

Healthy plants yield more and are better protected from insects and disease. The application of organic matter, such as compost, animal manure, green manure and soil from anthills, improves soil structure and adds nutrients to the soil.

Long-Term Soil Management

The ideal way to protect and feed the soil is to apply organic matter or compost regularly and to keep the soil covered with plants. A multilayer cropping system in which a mixture of trees and other plants with different maturity times are grown together will protect the soil and recycle nutrients. Leguminous plants such as cowpeas, groundnuts and beans are particularly useful in providing continuous nutrients for crops.

Apply Organic Matter to Soil to Improve the Crop

Plants can contain up to 90 percent water. The water is absorbed mainly through the root system of the plant. With the water, plant nutrients are absorbed. Healthy roots need air (aeration) for development. Excess water in the soil prevents air from penetrating and damages a plant's roots. Water management is therefore extremely important in regions with good water resources as well as in those where water is scarce.

The water-holding capacity of soil varies according to soil type. Soil with a high content of organic matter has better aeration, better structure and better water-holding capacity. Heavy, sticky soils are too dense to allow air in and water out, so roots cannot breathe and plants can have growth problems. When this kind of soil dries out, it sets like cement, and water takes a long time to soak into it. On the other hand, sandy, coarse-grained soils are too loose to hold water before it drains away. In this kind of soil, without a regular external water supply, a plant's roots cannot find enough water for growth. Regular application of organic matter will improve the ability of both these kinds of soil to hold and release enough water and air. During land preparation for planting, organic materials such as animal manure or compost should be applied to the land such that they are well incorporated into the soil.

Sources

1. African Soil Information Service (AfSIS), 2014. (http://www.africasoils.net/)
2. eHow (http://www.ehow.com/how_7336354_plant-sandy-loam-soil.html)
3. PROSEA: Plant Resources of South–East Asia (www.proseanet.org)
4. PROTA: Plant Resources of Tropical Africa (http://www.prota.org/)
5. EcoPort Programme, FAO (http://ecoport.org/)
6. University of Arizona (http://ag.arizona.edu/pubs/garden/mg/soils/principal.html)
7. Wikipedia.org, "Soil pH" (http://en.wikipedia.org/wiki/Soil_pH)
8. PlanTea (http://www.plantea.com/pH.htm)
9. Wikipedia.org, "Tropical Agriculture" (http://en.wikipedia.org/wiki/Tropical_agriculture#Acidic_soils)
10. Wikipedia.org, "Alkali soils" (http://en.wikipedia.org/wiki/Alkali_soils)
11. Spectrum Analytic (http://www.spectrumanalytic.com/support/library/ff/CEC_BpH_and_percent_sat.htm)
12. FAO/IIASA/ISRIC/ISS-CAS/JRC, 2009. Harmonized World Soil Database (version 1.1). FAO, Rome, Italy and IIASA, Laxenburg, Austria (http://www.iiasa.ac.at/Research/LUC/External-World-soil-database/HWSD_Documentation.pdf)
13. Pennsylvania State University (http://pubs.cas.psu.edu/FreePubs/pdfs/uc038.pdf)
14. Clemson University (hubcap.clemson.edu/~blpprt/IL64.html)
15. Soil Quality for Environmental Health (http://soilquality.org/indicators/bulk_density.html)
16. Amacher, Michael C.
17. O’Neil, Katherine P.
18. Perry, Charles H. 2007. Soil vital signs: A new Soil Quality Index (SQI) for assessing forest soil health. Res. Pap. RMRS-RP-65WWW. Fort Collins, CO: U.S. Department of Agriculture, Forest Service, Rocky Mountain Research Station. 12 p. (http://www.fs.fed.us/rm/pubs/rmrs_rp065.pdf)
19. Andre Bationo, Job Kihara, Bernard Vanlauwe, Boaz Waswa, Joseph Kimetu, "Soil organic carbon dynamics, functions and management in West African agro-ecosystems", Received 8 February 2005
20. accepted 18 August 2005 (http://www.zef.de/module/register/media/18ea_sdarticle.pdf)
21. Department of Primary Industries, Victoria, Australia (http://www.dpi.vic.gov.au/dpi/vro/vrosite.nsf/pages/gloss_HR#l)
22. eHow (http://www.ehow.com/list_7256066_loam-soil-plants.html)
23. CT ECO (http://www.cteco.uconn.edu/guides/Soils_Drainage.htm)
24. McDonald, A.J., Cornell University, "Soil Drainage Classification and Hydric Soil Indicators" (http://www.css.cornell.edu/courses/260/Lab%20Hydric%20Soils.pdf), last modified on August 8, 2002.
25. FAO (http://www.fao.org/nr/land/soils/harmonized-world-soil-database/soil-quality-for-crop-production/en/).
26. FAO (http://www.fao.org/nr/land/soils/harmonized-world-soil-database/soil-quality-for-crop-production/en/)
27. FAO, AGL ProSoil (http://www.fao.org/ag/AGL/agll/prosoil/calc.htm)
28. Grameen Foundation (www.grameenfoundation.org)
29. Mississippi State University (http://msucares.com/lawn/garden/vegetables/soil/index.html)
30. World reference base for soil resources 2006. 2nd edition. World Soil Resources Reports No. 103. FAO, Rome (http://www.fao.org/ag/agl/agll/wrb/doc/wrb2006final.pdf)
31. How to Improve Soils (http://www.howtoimprovesoils.info/kinds-of-soils/clay-soils-clay-loams-loam-soils.html)
32. BBC (http://www.bbc.co.uk/gardening/htbg/module1/soil_types1.shtml)
33. University of Florida (http://edis.ifas.ufl.edu/tr004)
34. Which? (http://www.which.co.uk/documents/pdf/growing-on-gravel-154029.pdf)
35. eHow.com (http://www.ehow.com/how_7626870_garden-gravelly-soil.html)
36. FAO/IIASA/ISRIC/ISS-CAS/JRC, 2009. Harmonized World Soil Database (version 1.1). FAO, Rome, Italy and IIASA, Laxenburg, Austria (http://www.iiasa.ac.at/Research/LUC/External-World-soil-database/HWSD_Documentation.pdf).
37. University of Florida (http://edis.ifas.ufl.edu/ss169)
38. Lecture Notes on the Major Soils of the World, FAO, Rome, 2001 (http://www.itc.nl/~rossiter/Docs/WRB/wsrr94e.pdf).
39. eHow.com (http://www.ehow.com/list_7464662_list-grow-different-soil-types.html#ixzz1YRUWbhI5)
40. Discovery Education (http://school.discoveryeducation.com/schooladventures/soil/name_soil.html)
41. Wikipedia.org, "Soil Salinity Control" (http://en.wikipedia.org/wiki/Soil_salinity_control), last modified on January 19, 2012.
42. FAO, "Management of Gypsiferous Soils" (http://www.fao.org/docrep/t0323e/t0323e00.htm#Contents)
43. Soil Quality for Environmental Health (http://soilquality.org/indicators/bulk_density.html).
44. USDA (http://soils.usda.gov/sqi/publications/files/sq_two_1.pdf).
45. Rhoades, Heather, "Adding Nitrogen As A Plant Fertilizer," Gardening Know How (http://www.gardeningknowhow.com/gardening-how-to/nitrogen-plant-fertilizer.htm)
46. Perry, Charles H. 2007. Soil vital signs: A new Soil Quality Index (SQI) for assessing forest soil health. Res. Pap. RMRS-RP-65WWW. Fort Collins, CO: U.S. Department of Agriculture, Forest Service, Rocky Mountain Research Station. 12 p. (http://www.fs.fed.us/rm/pubs/rmrs_rp065.pdf).
47. Rhoades, Heather, "The Importance Of Phosphorus In Plant Growth," Gardening Know How (http://www.gardeningknowhow.com/gardening-how-to/phosphorus-plant-growth.htm)
48. Rhoades, Heather, "Plants And Potassium: Using Potassium And Potassium Deficiency In Plants," Gardening Know How (http://www.gardeningknowhow.com/gardening-how-to/plants-potassium.htm)
49. Wikipedia (www.wikipedia.org)
50. Pedosphere.com (http://www.pedosphere.com/volume01/pdf/Section_03_02_01.pdf)
51. How to Improve Soils (http://www.howtoimprovesoils.info/kinds-of-soils/clay-soils-clay-loams-loam-soils.html).
52. World reference base for soil resources 2006. 2nd edition. World Soil Resources Reports No. 103. FAO, Rome, page 82 (http://www.fao.org/ag/agl/agll/wrb/doc/wrb2006final.pdf)
53. Lecture Notes on the Major Soils of the World, FAO, Rome, 2001, page 21 (http://www.itc.nl/~rossiter/Docs/WRB/wsrr94e.pdf).
54. Department of Primary Industries, Victoria, Australia (http://www.dpi.vic.gov.au/dpi/vro/vrosite.nsf/pages/gloss_HR#l).
55. World reference base for soil resources 2006. 2nd edition. World Soil Resources Reports No. 103. FAO, Rome, page 72 (http://www.fao.org/ag/agl/agll/wrb/doc/wrb2006final.pdf)
56. Lecture Notes on the Major Soils of the World, FAO, Rome, 2001, pages 8 and 65
57. Wikipedia.org, "Arenosols" (http://en.wikipedia.org/wiki/Arenosols), last modified on August 22, 2009.
58. World reference base for soil resources 2006. 2nd edition. World Soil Resources Reports No. 103. FAO, Rome, page 92 (http://www.fao.org/ag/agl/agll/wrb/doc/wrb2006final.pdf).
59. Wikipedia.org, "Cambisols" (http://en.wikipedia.org/wiki/Cambisols), last updated August 12, 2011.
60. World reference base for soil resources 2006. 2nd edition. World Soil Resources Reports No. 103. FAO, Rome, page 75 (http://www.fao.org/ag/agl/agll/wrb/doc/wrb2006final.pdf)
61. Lecture Notes on the Major Soils of the World, FAO, Rome, 2001, page 140 (http://www.itc.nl/~rossiter/Docs/WRB/wsrr94e.pdf).

Username:
Password:
